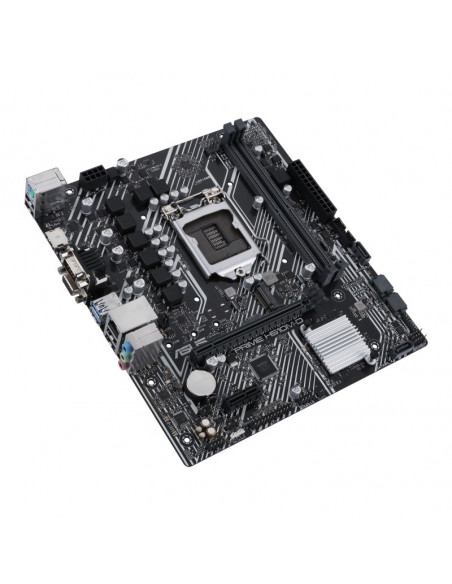

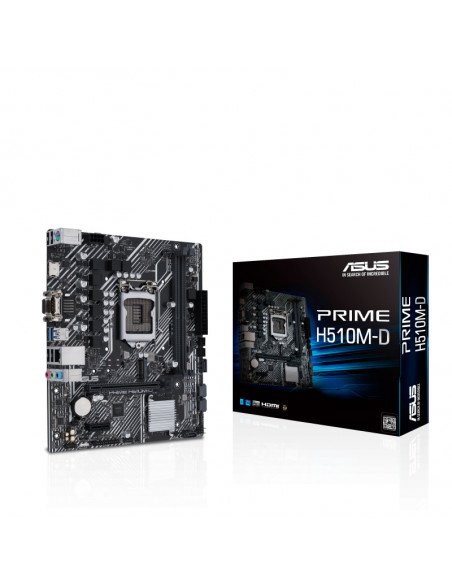

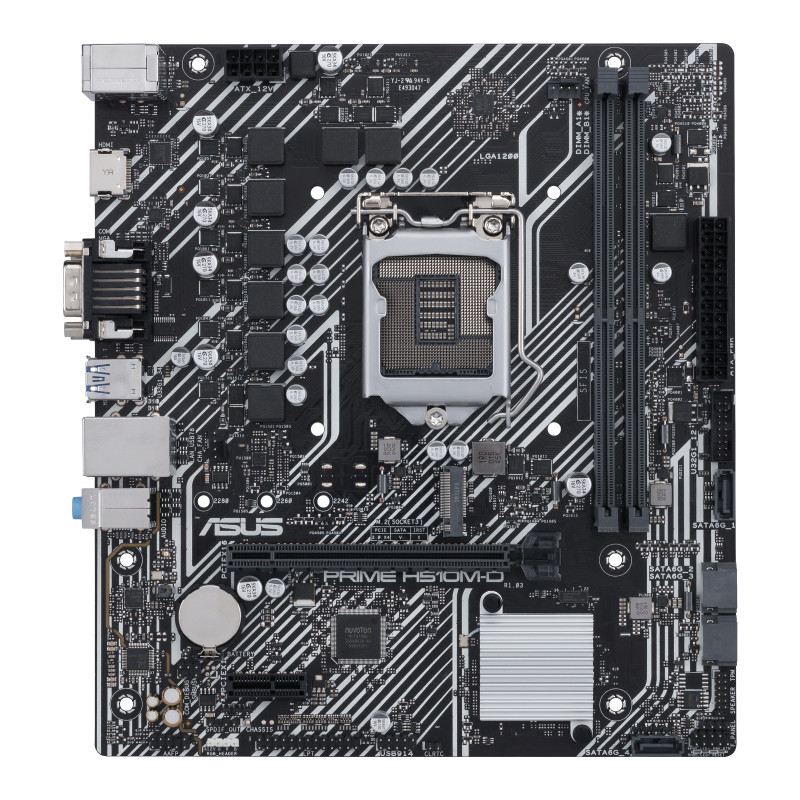

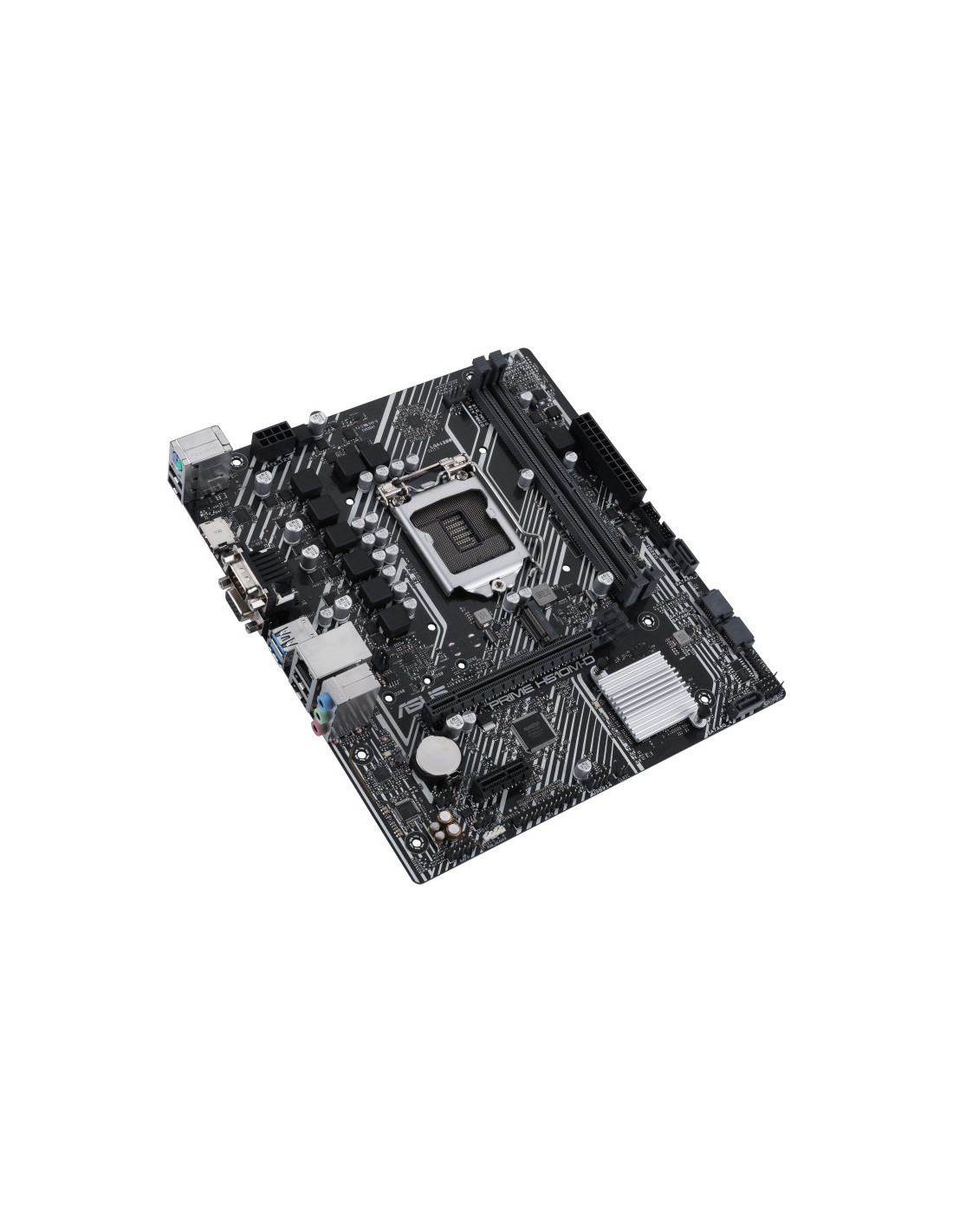

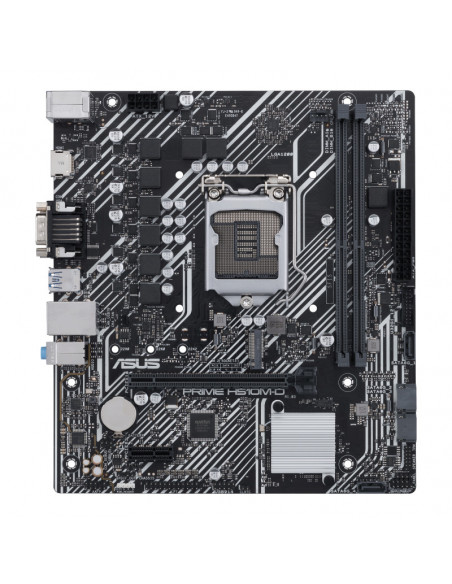

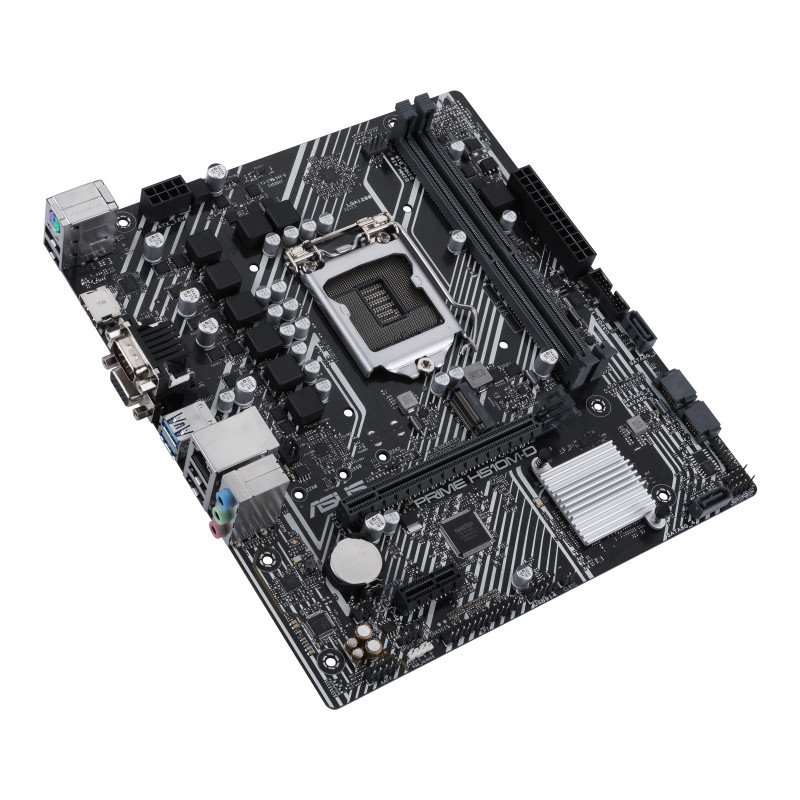

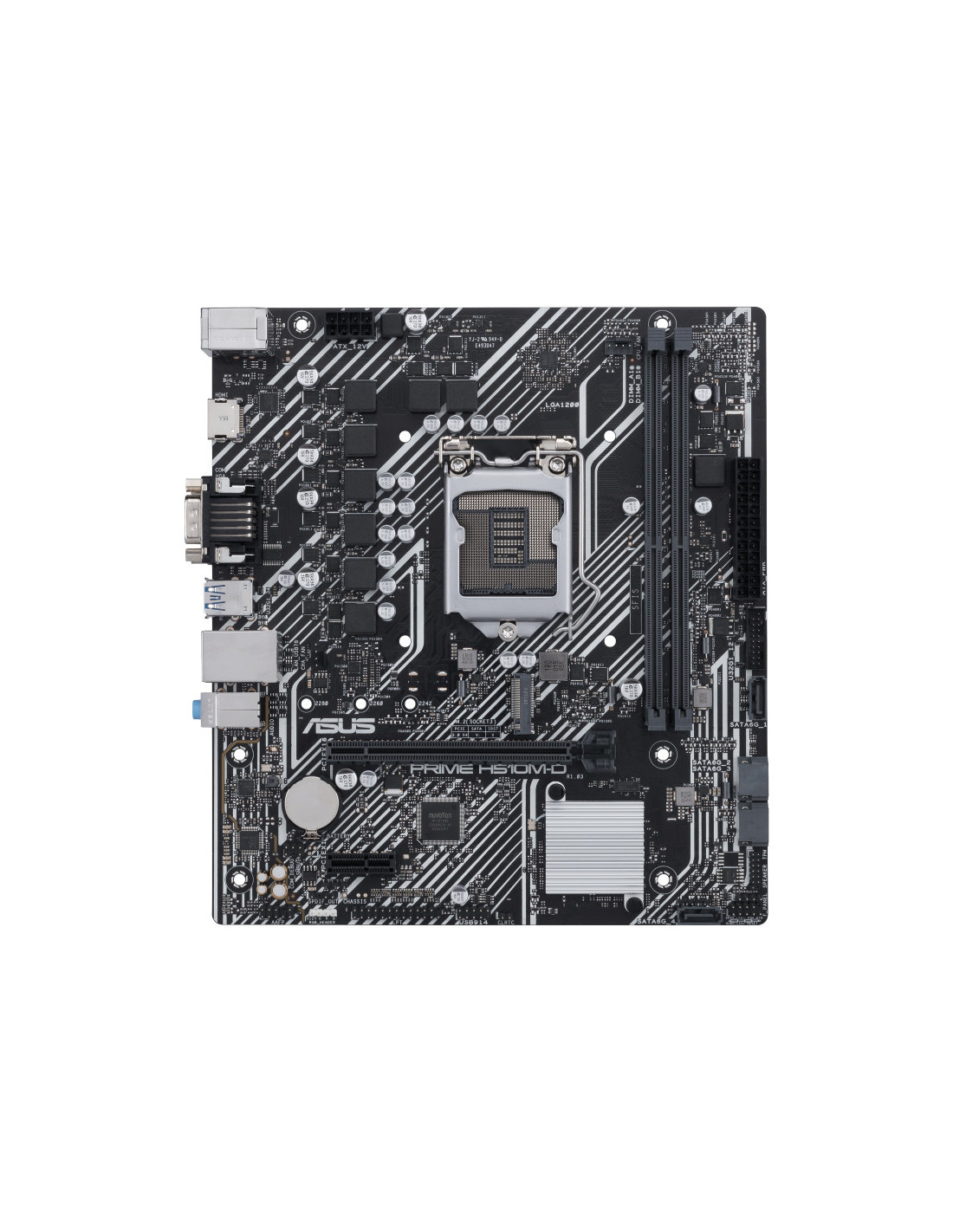

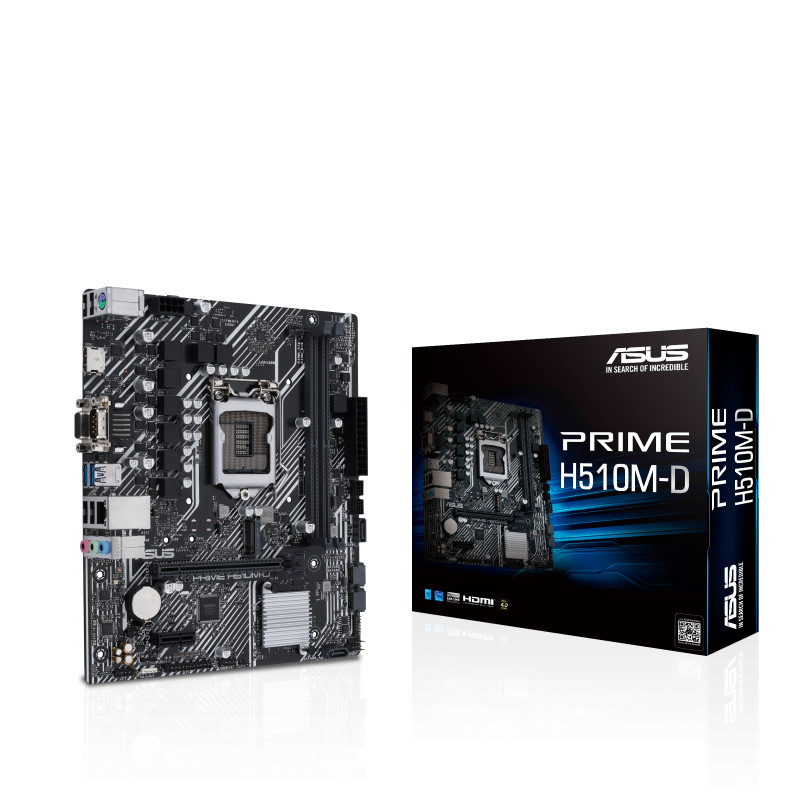

MB H510 S1200 MATX/PRIME H510M-D ASUS

Placa de baza Asus PRIME H510M-D LGA 1200 CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H510 Chipset Memory Memory Channels:2DDR4 (Dual Channel) Max Memory Size:64GB DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 1 x D-Sub 1 x HDMI™ 2.0*** * Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.0 with max.
resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max.
resolution of 4K@30Hz.
Please refer to www.intel.com for any updates.
Expansion Slots Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H510 Chipset 1 x PCIe 3.0 x1 slot Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_2 port.
When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

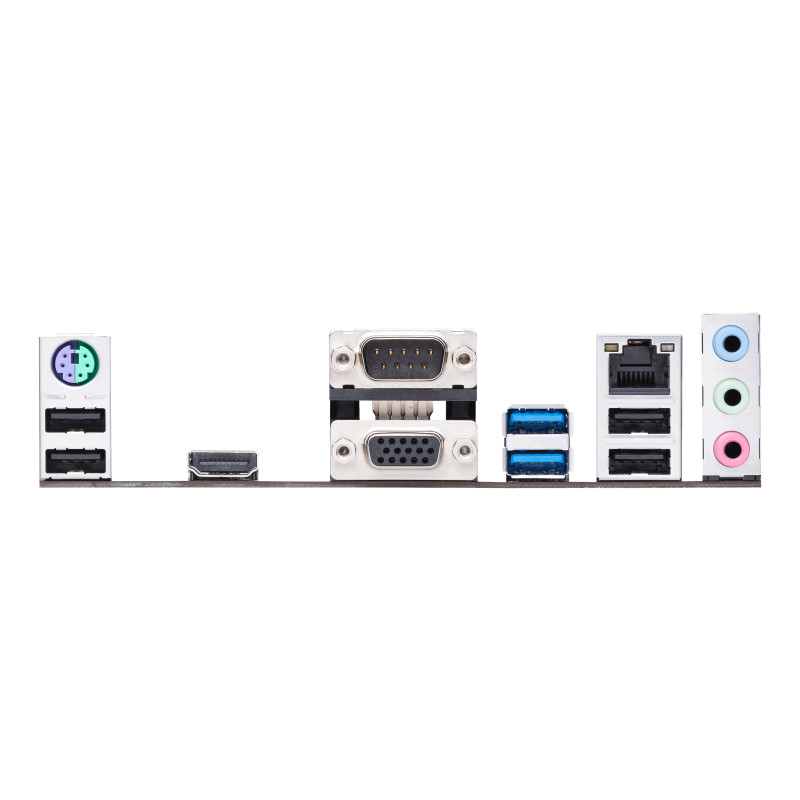

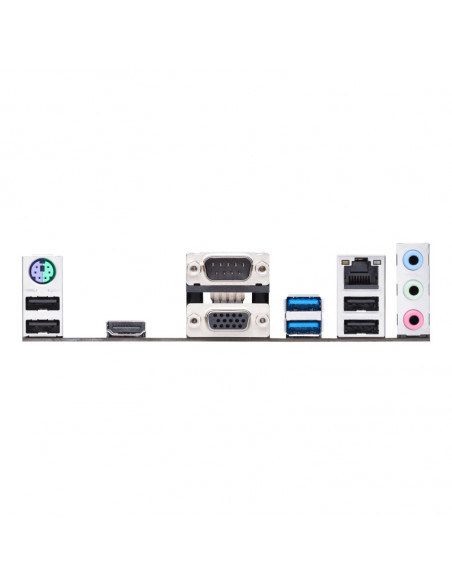

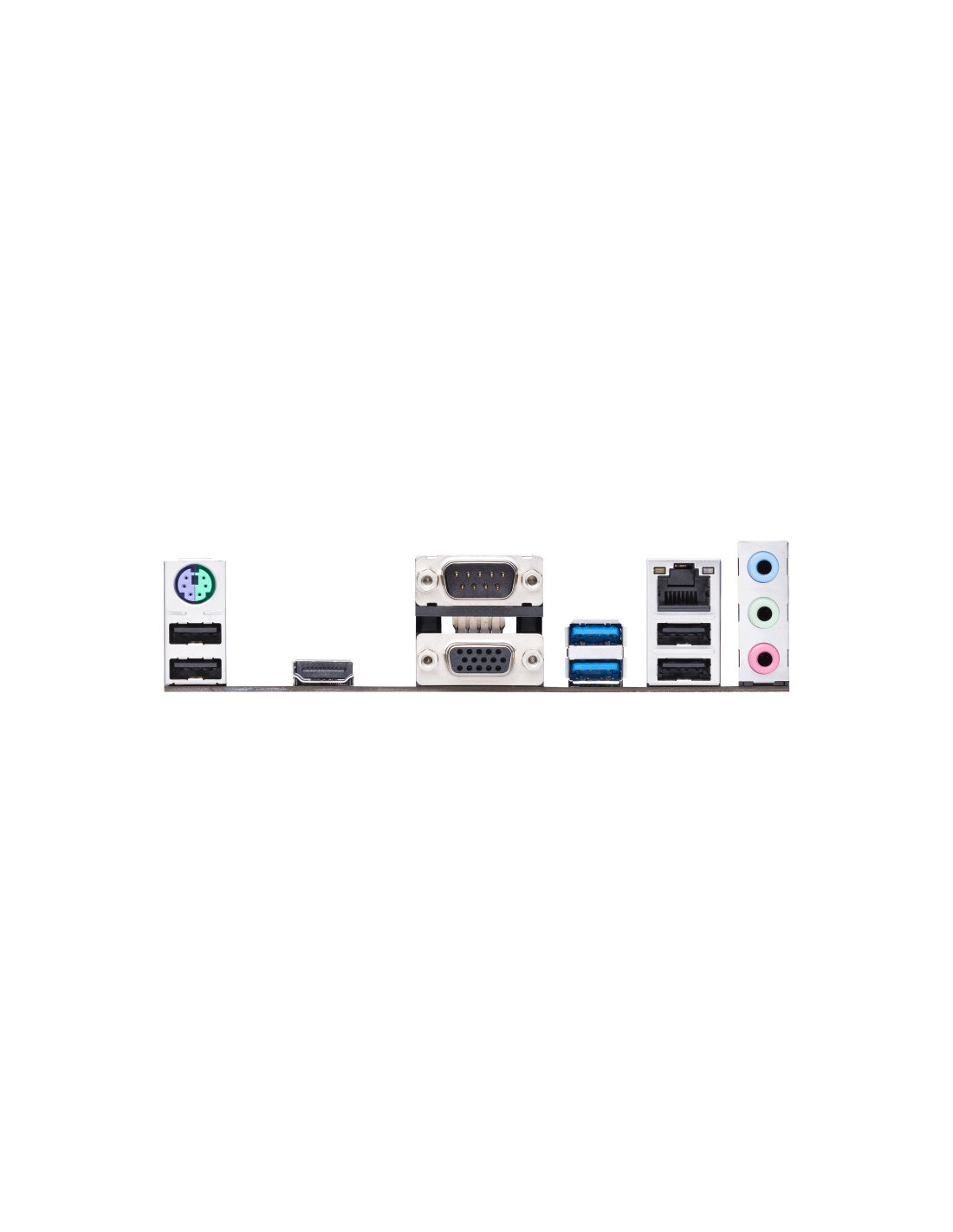

Ethernet 1 x Intel® I219-V 1Gb Ethernet USB Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers https://www.asus.com/Motherboards-Components/Motherboards/All- series/PRIME-H510M-D/techspec/
