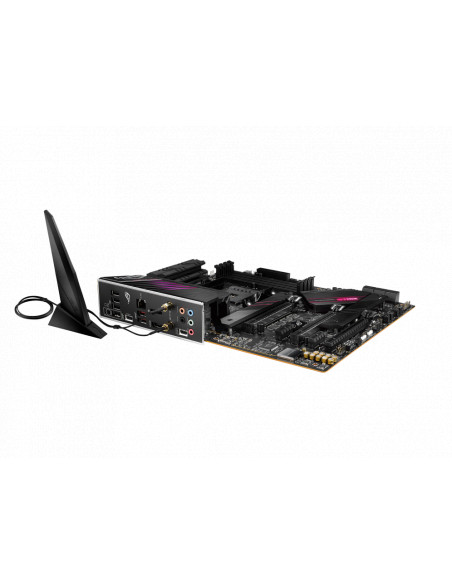

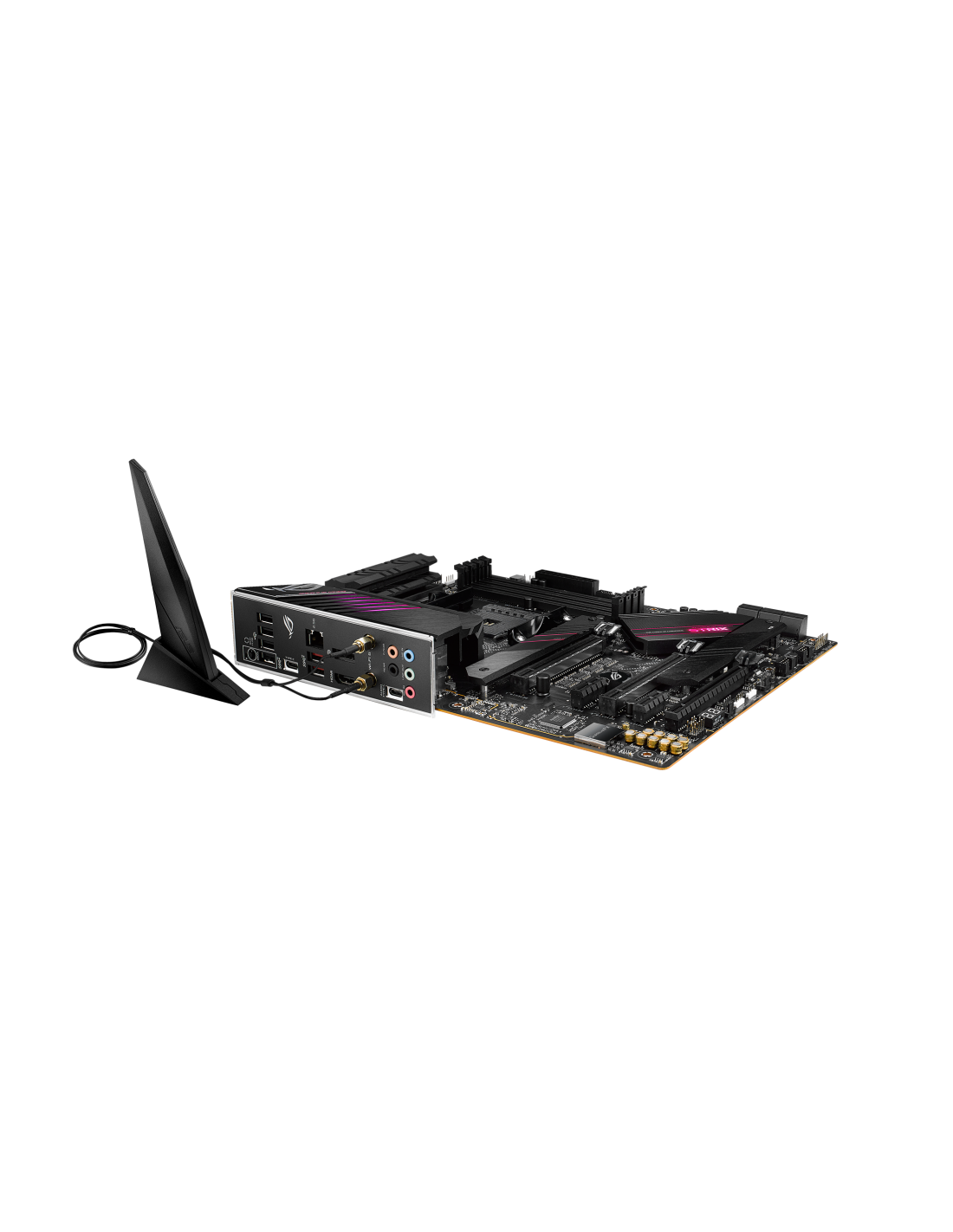

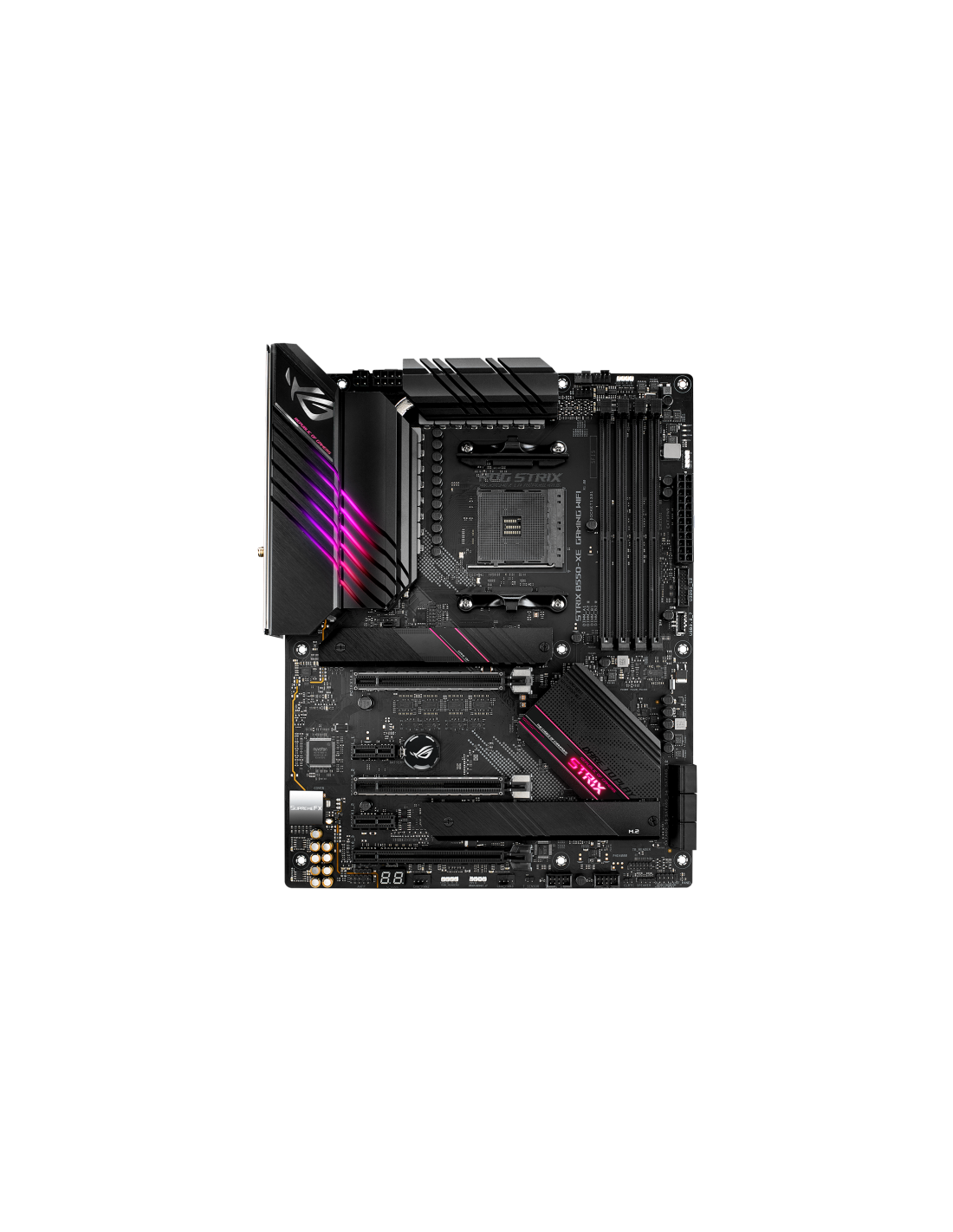

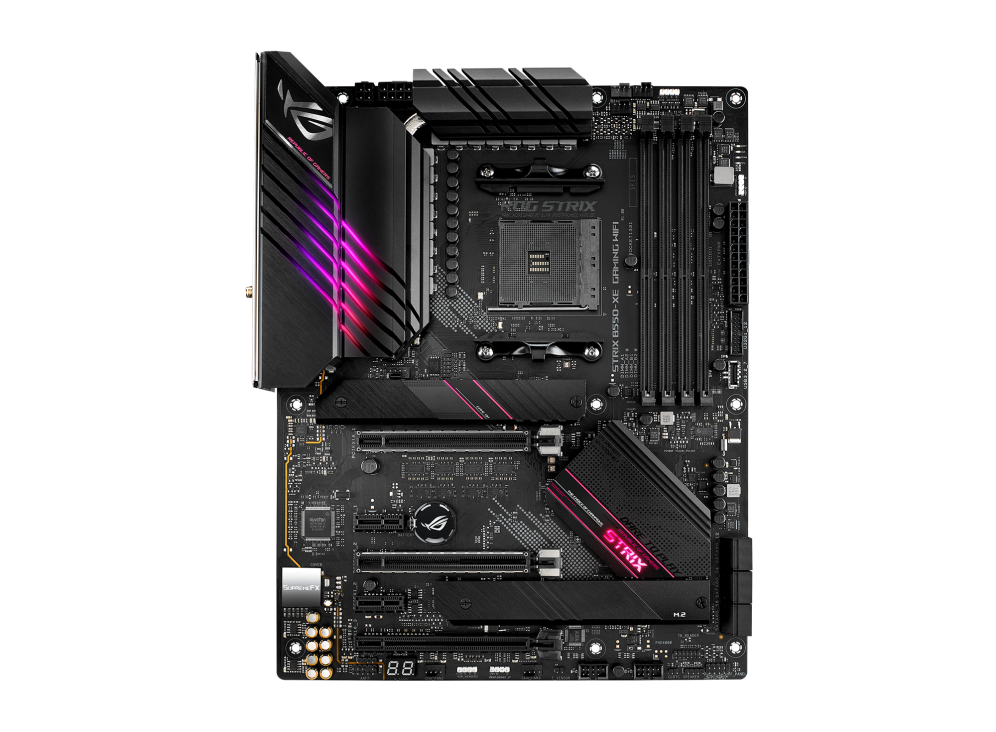

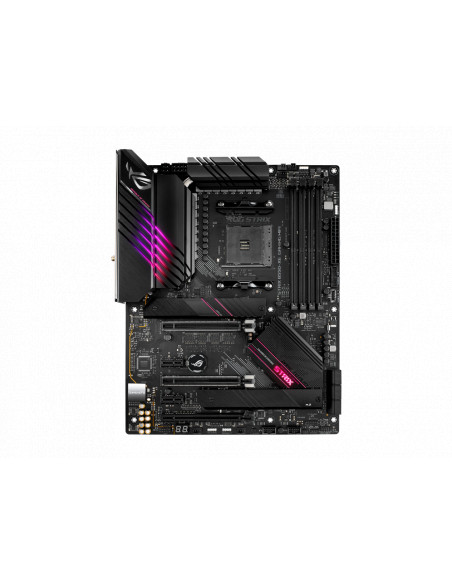

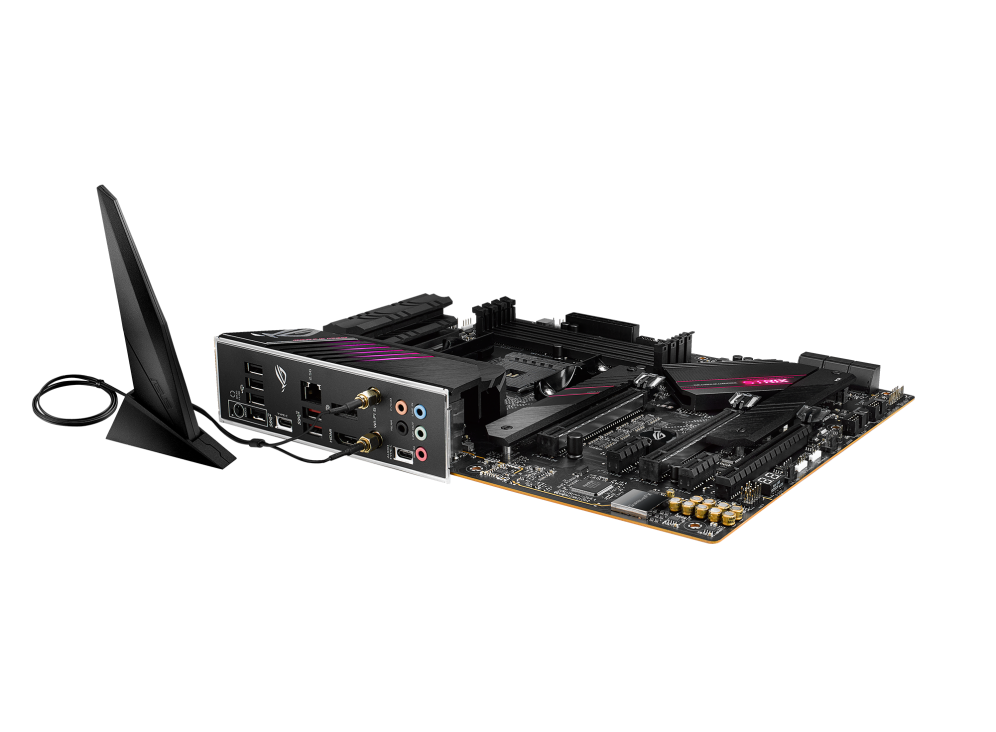

Placa de baza ASUS ROG STRIX B550-XE GAMING WI-FI, socket AM4

Placa de baza Asus ROG STRIX B550-XE GAMING WIFI AM4 ROG STRIX B550-XE GAMING WIFI CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 4 x DIMM, Max.
128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133 (O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466 (O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory AMD Ryzen™ 4000 G-Series Desktop Processors 4 x DIMM, Max.
128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266 (O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466 (O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic 1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.2 *Graphics specifications may vary between CPU types.

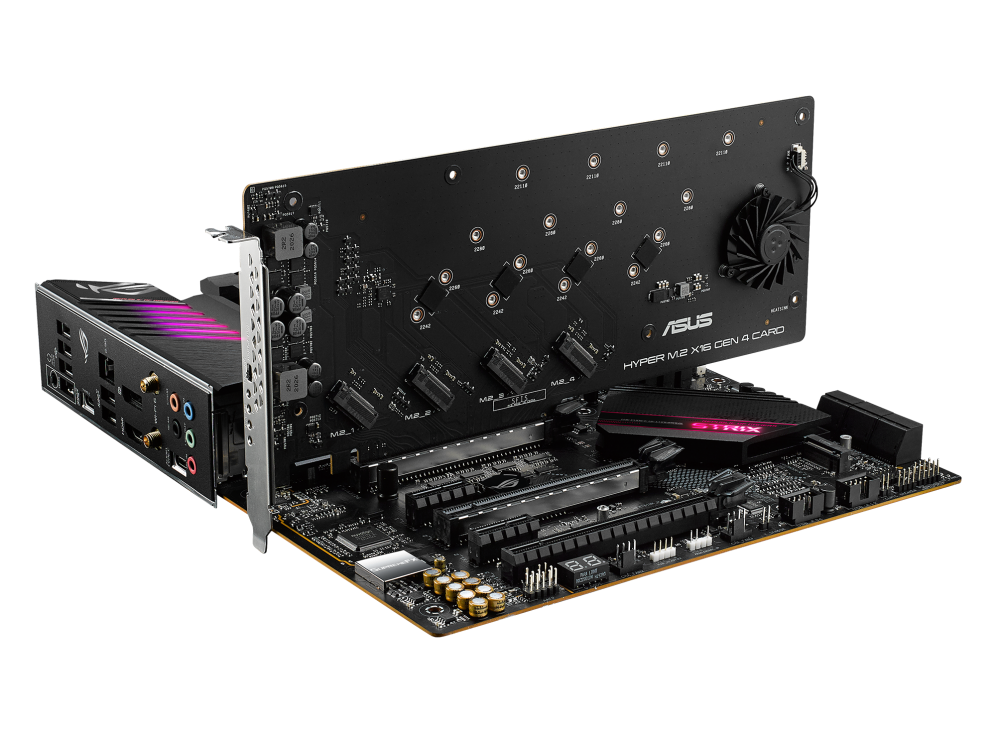

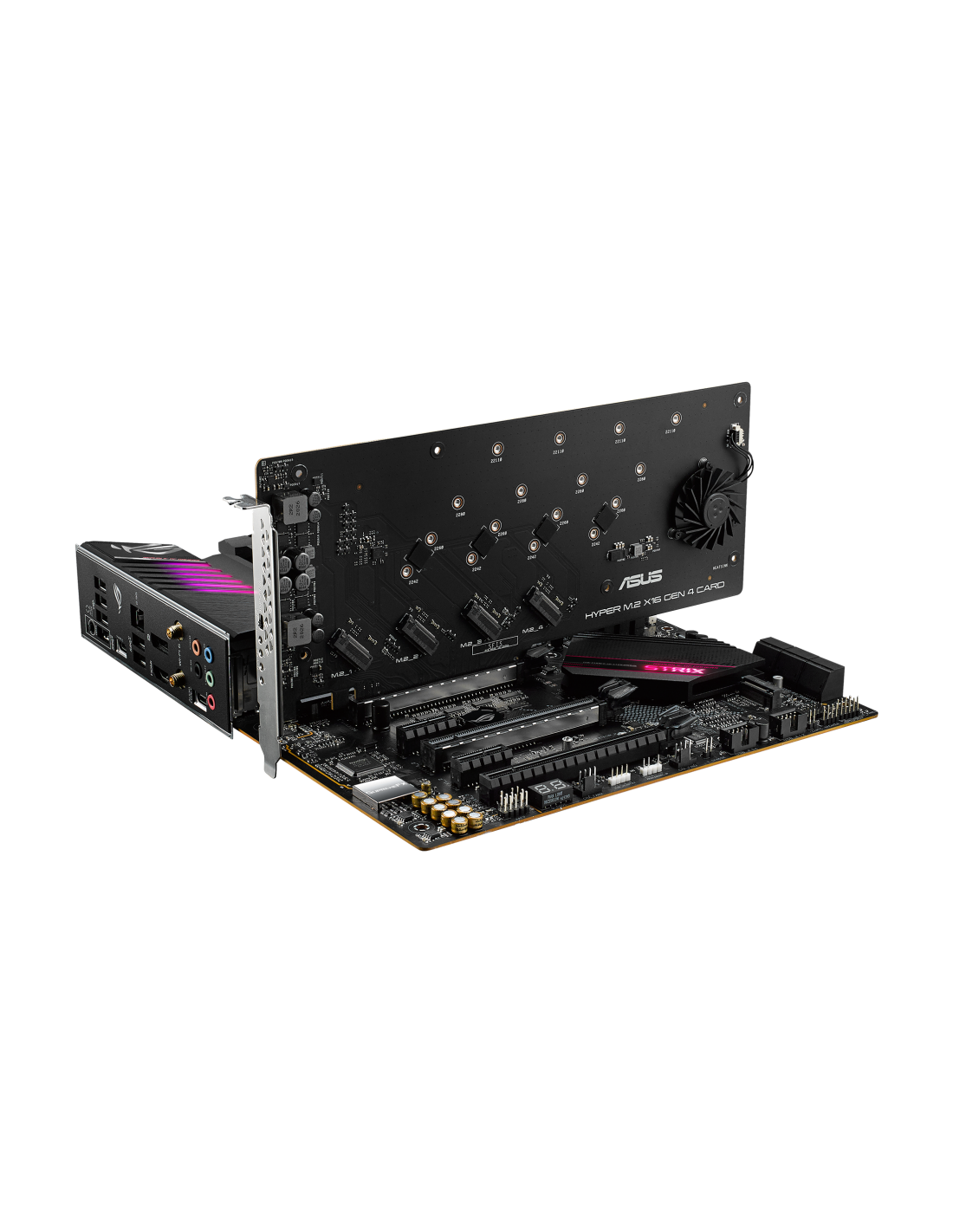

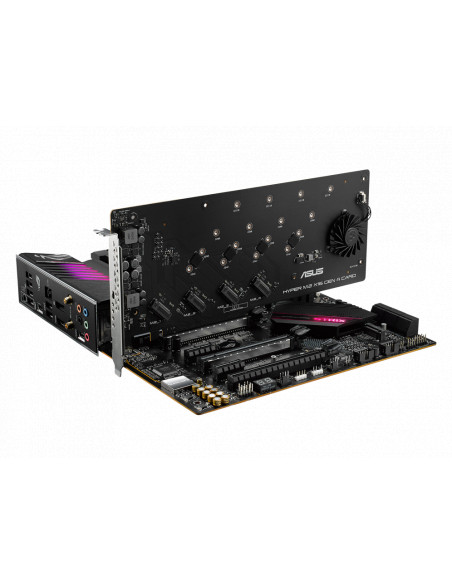

Integrated Graphics Processor Multi-GPU Support Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 2 x PCIe 3.0 x1 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) Storage AMD Ryzen™ 4000 G-Series Desktop Processors : AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Support Raid 0, 1, 10 6 x SATA 6Gb/s port(s), LAN Intel® I225-V 2.5Gb Ethernet ASUS LANGuard Wireless Data Network Intel® Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio - Rear audio USB Type-C® port - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-xe-gaming- wifi-model/spec/
