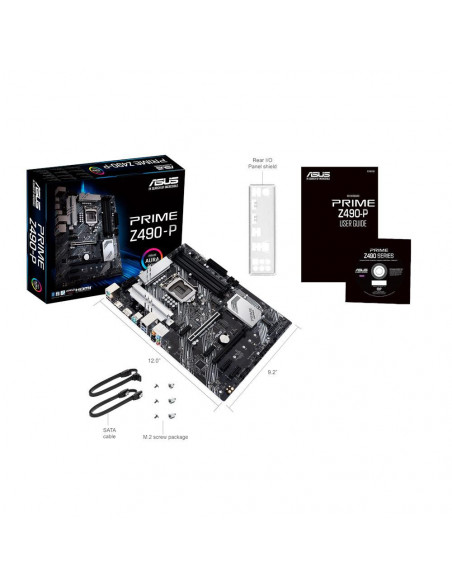

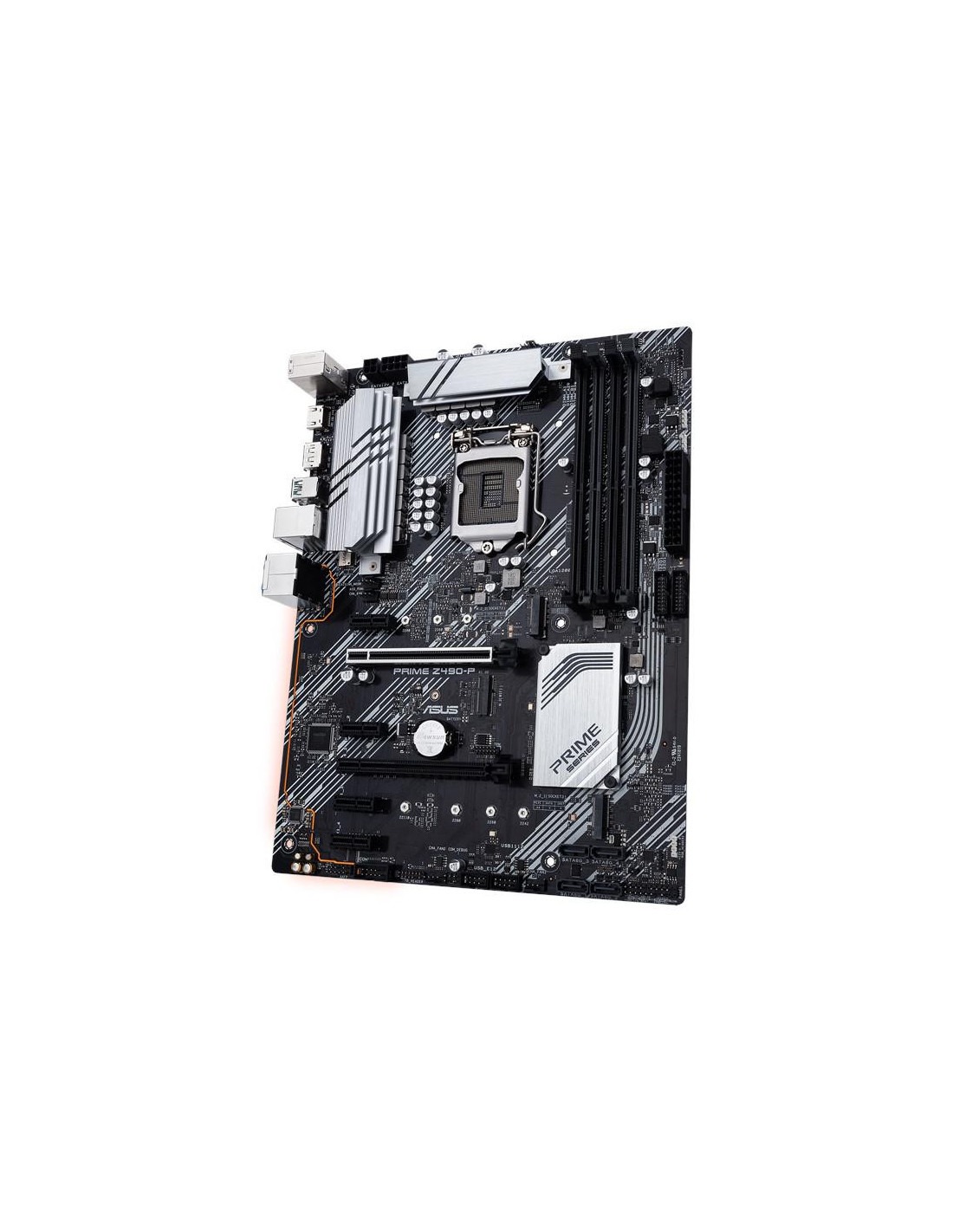

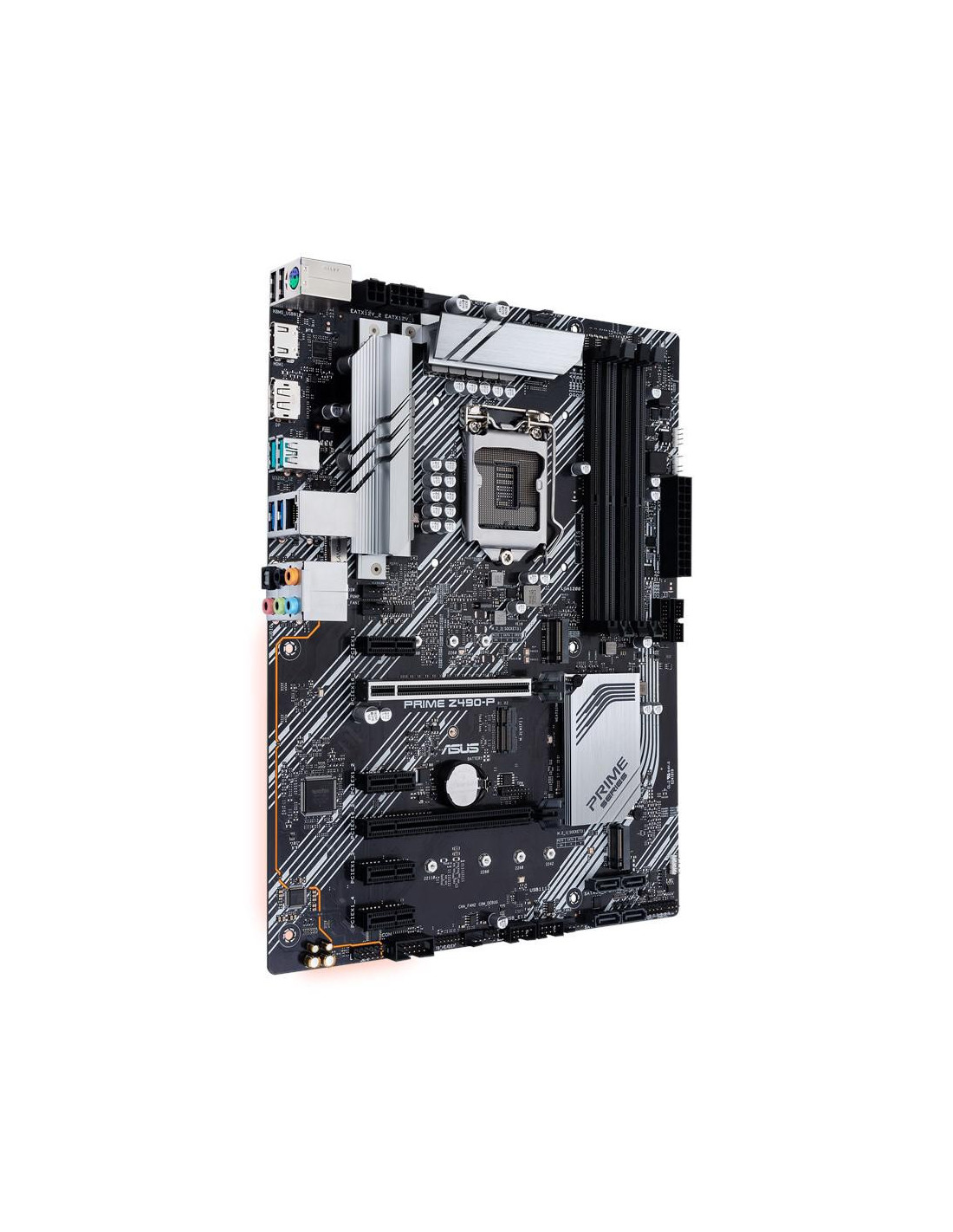

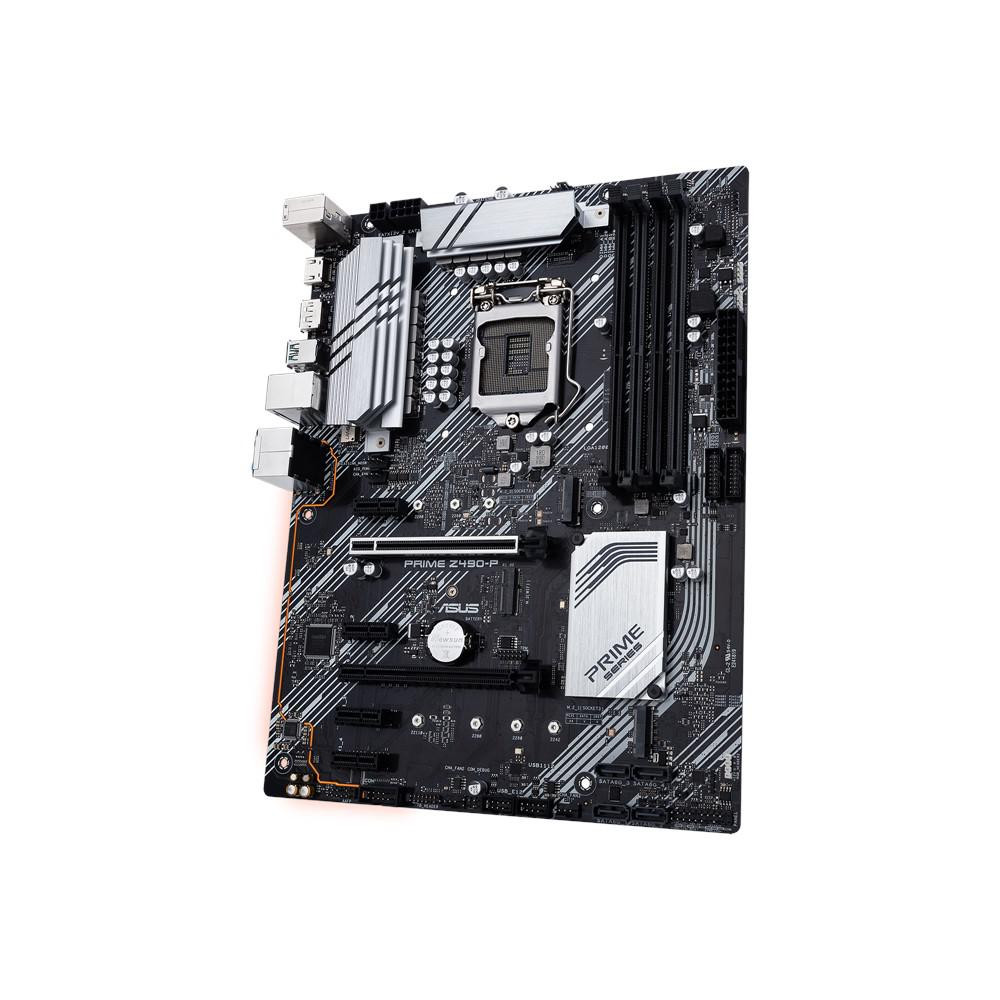

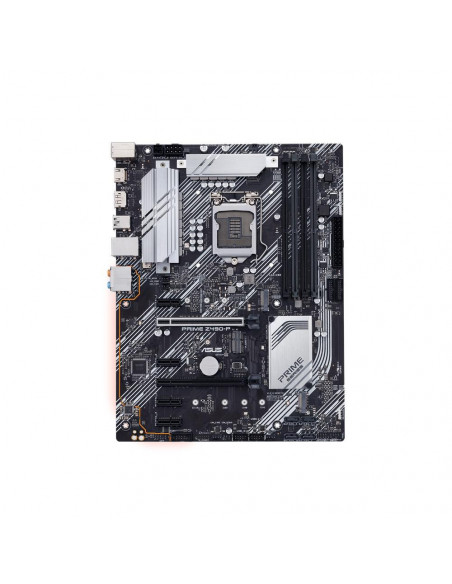

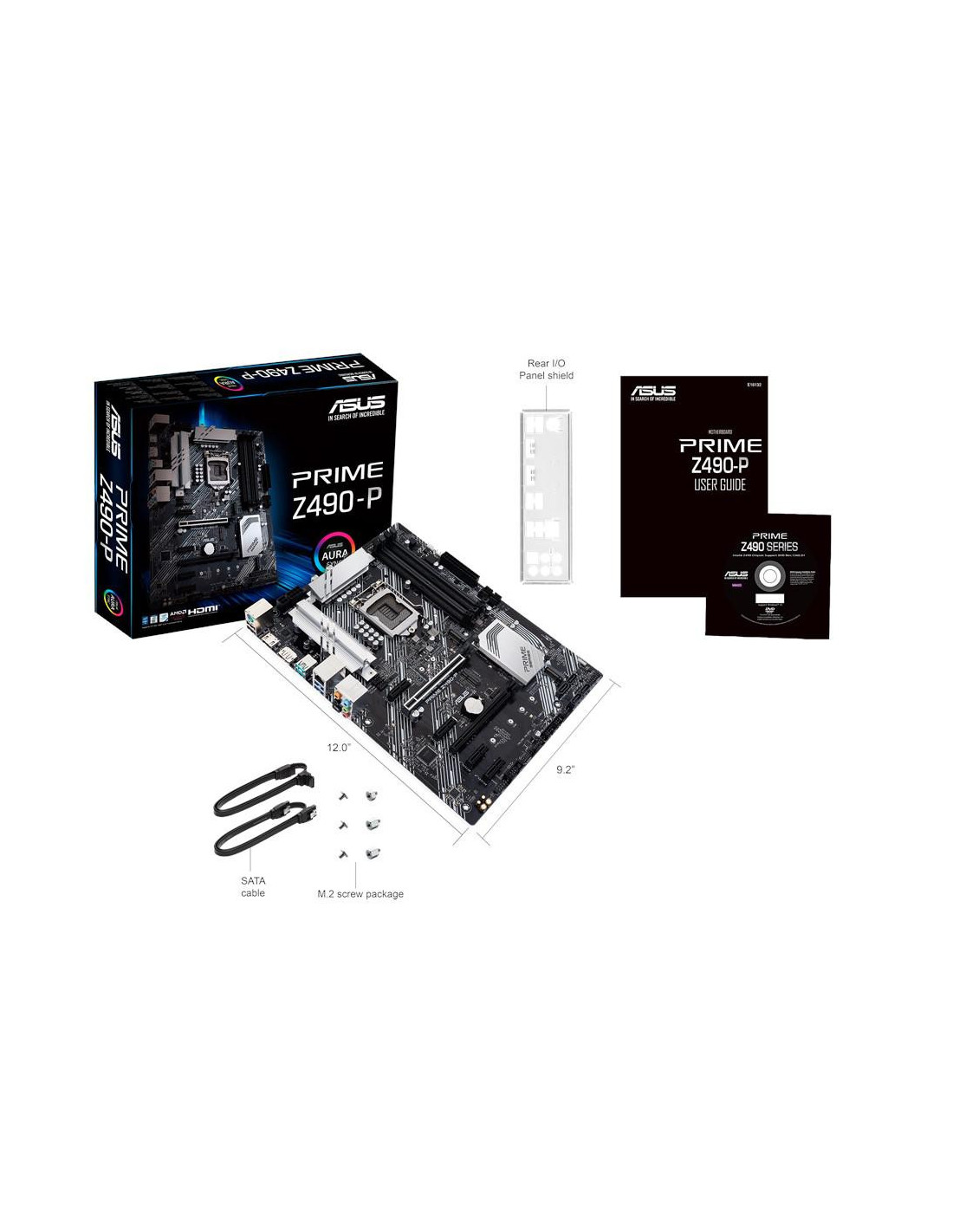

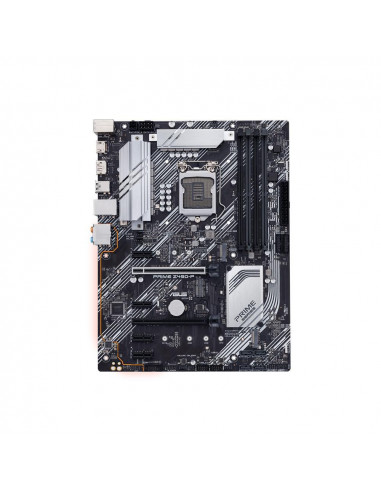

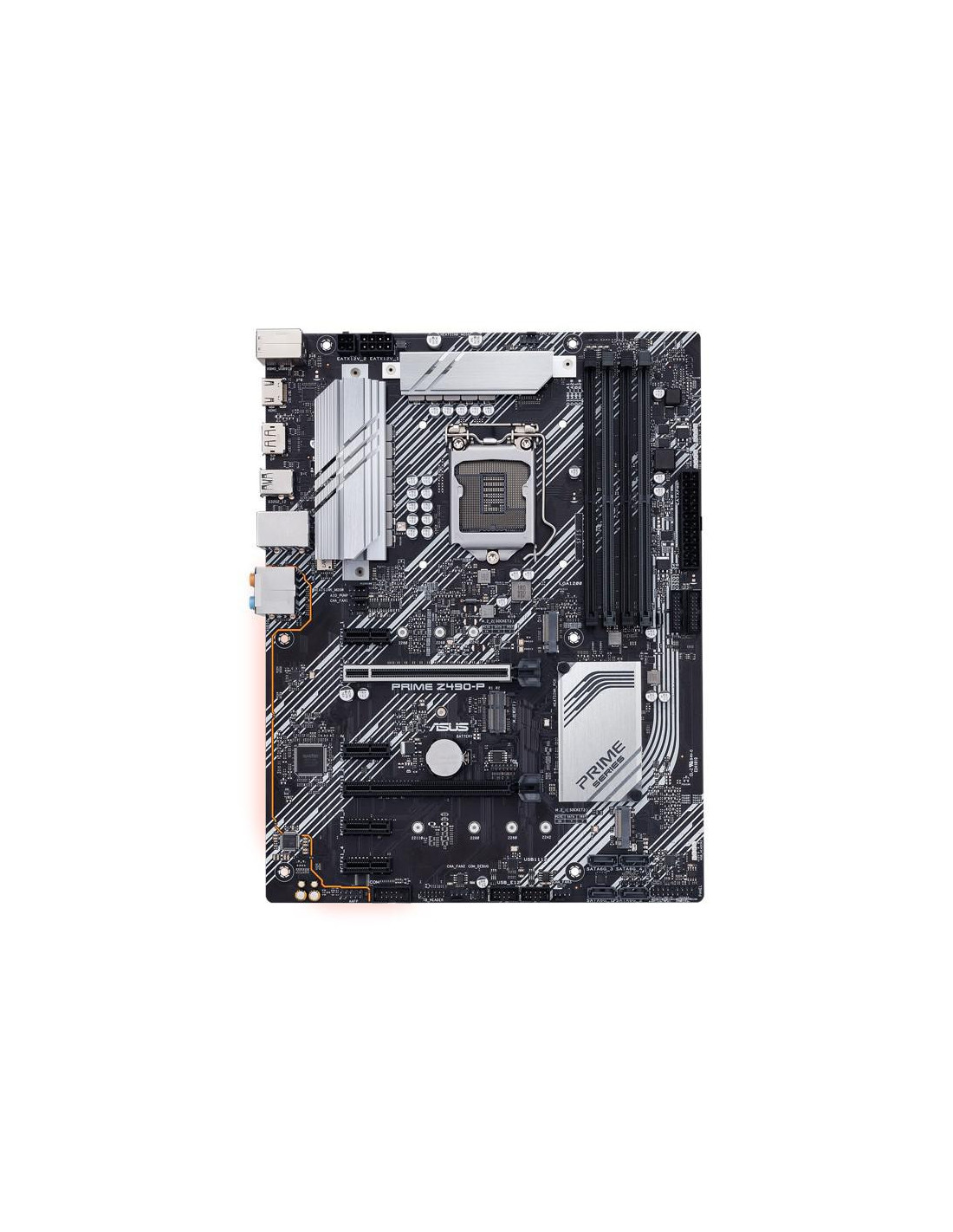

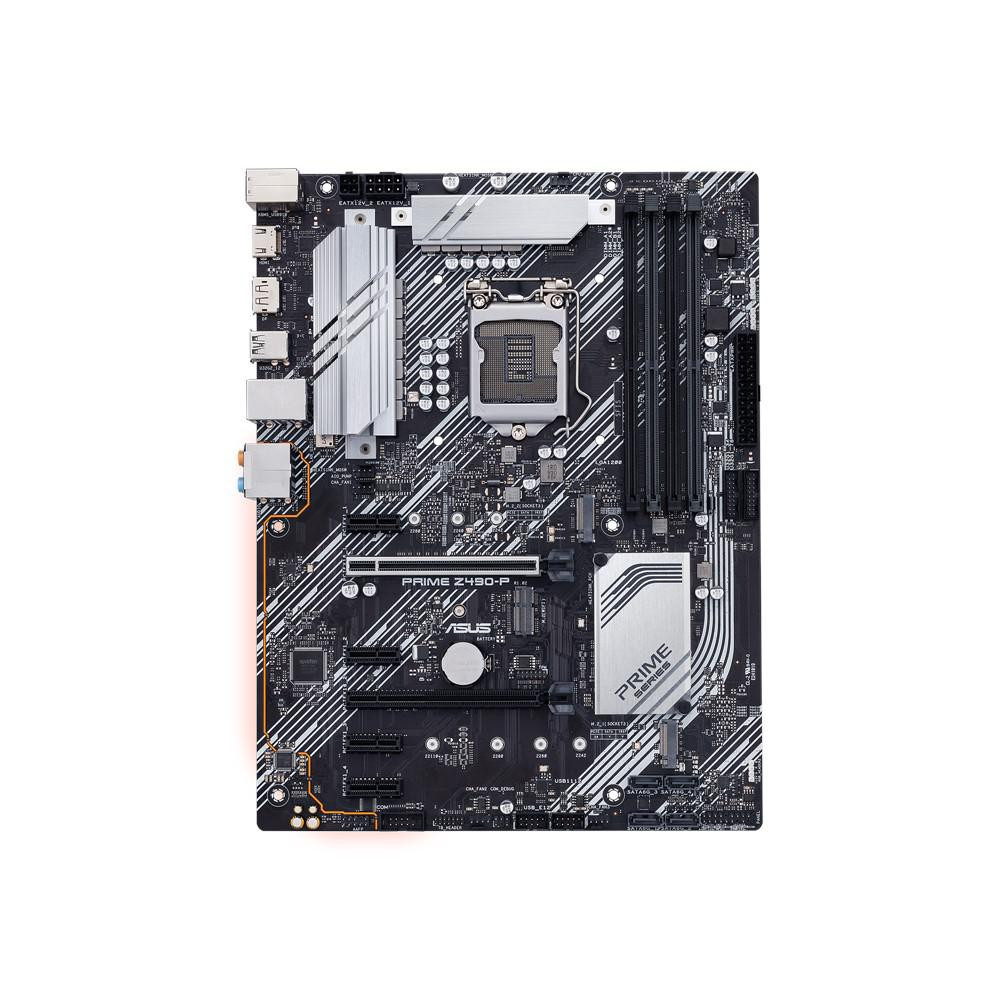

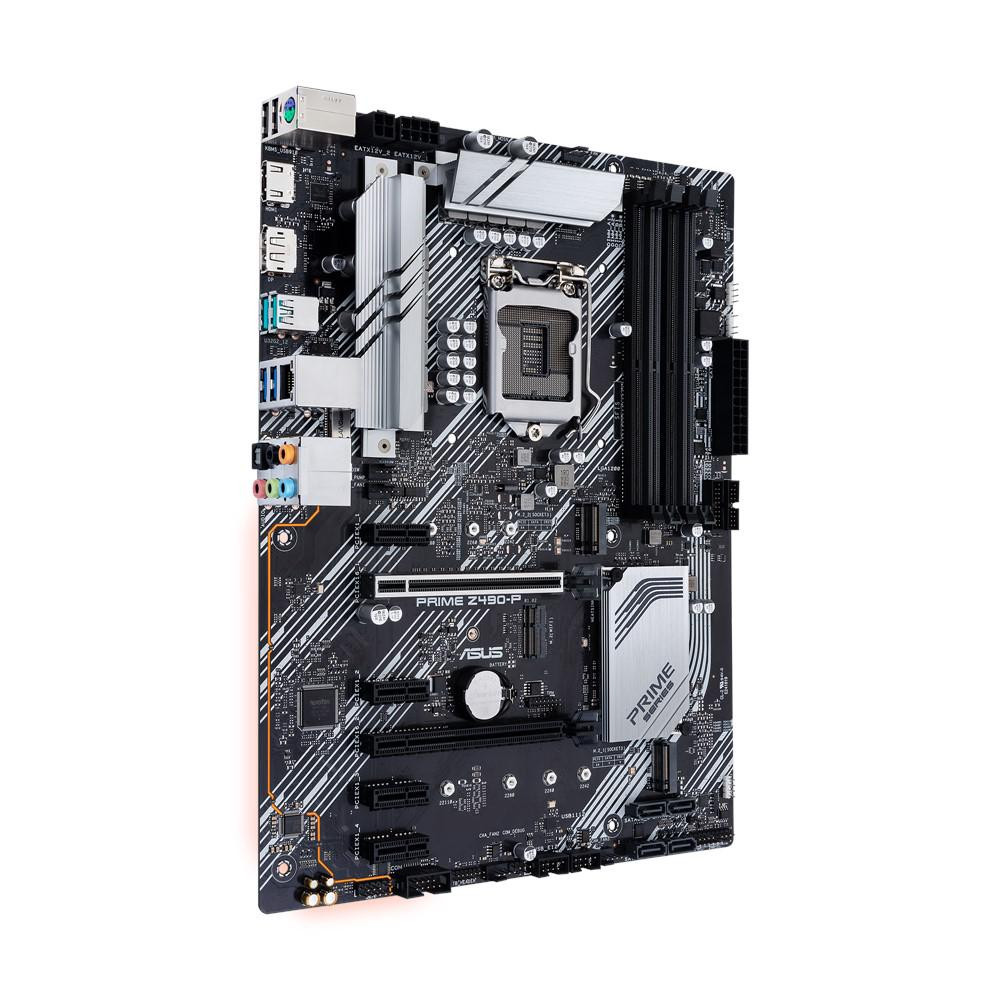

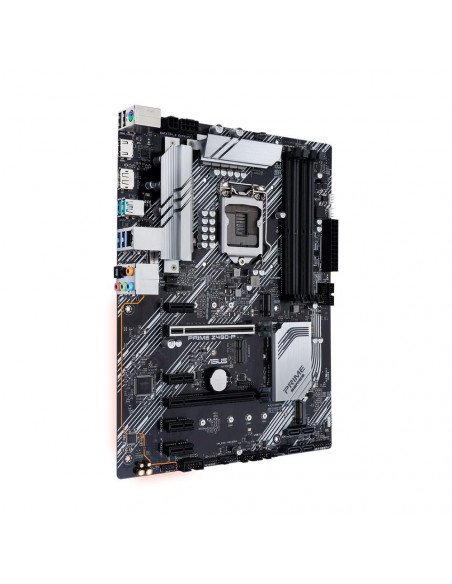

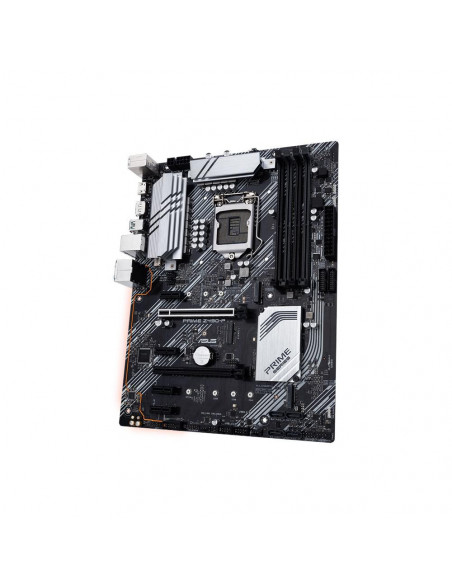

MB Z490 S1200 ATX/PRIME Z490-P ASUS

Placa de baza Asus PRIME Z490-P Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z490 Memory 4 x DIMM, Max.
128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266 (O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466 (O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933 (O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max.
resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any update.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Realtek® RTL8111H Wireless Data Network M.2 slot only (Key E) (Support CNVI & PCIe interface)* *Wi-Fi module is sold separately.

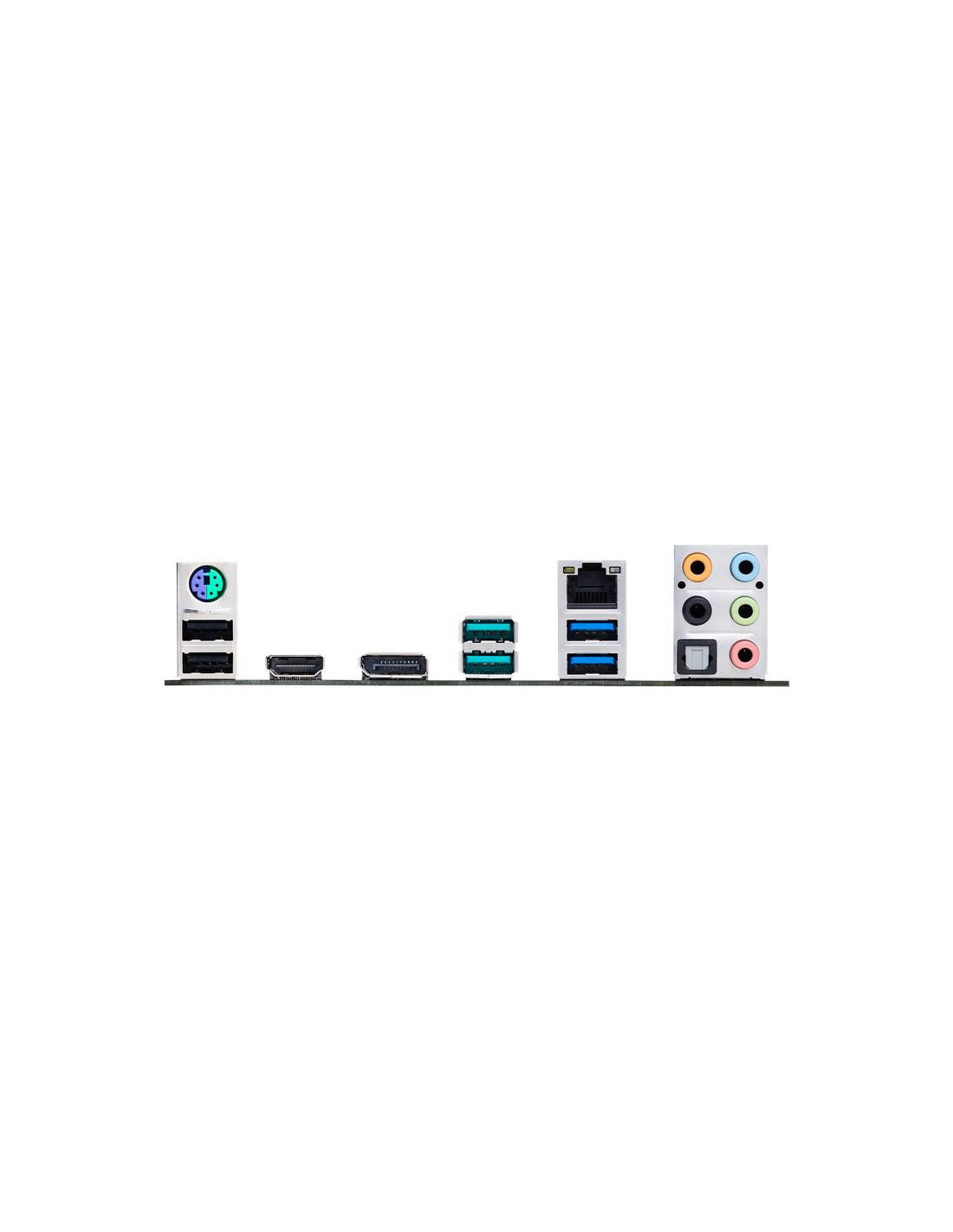

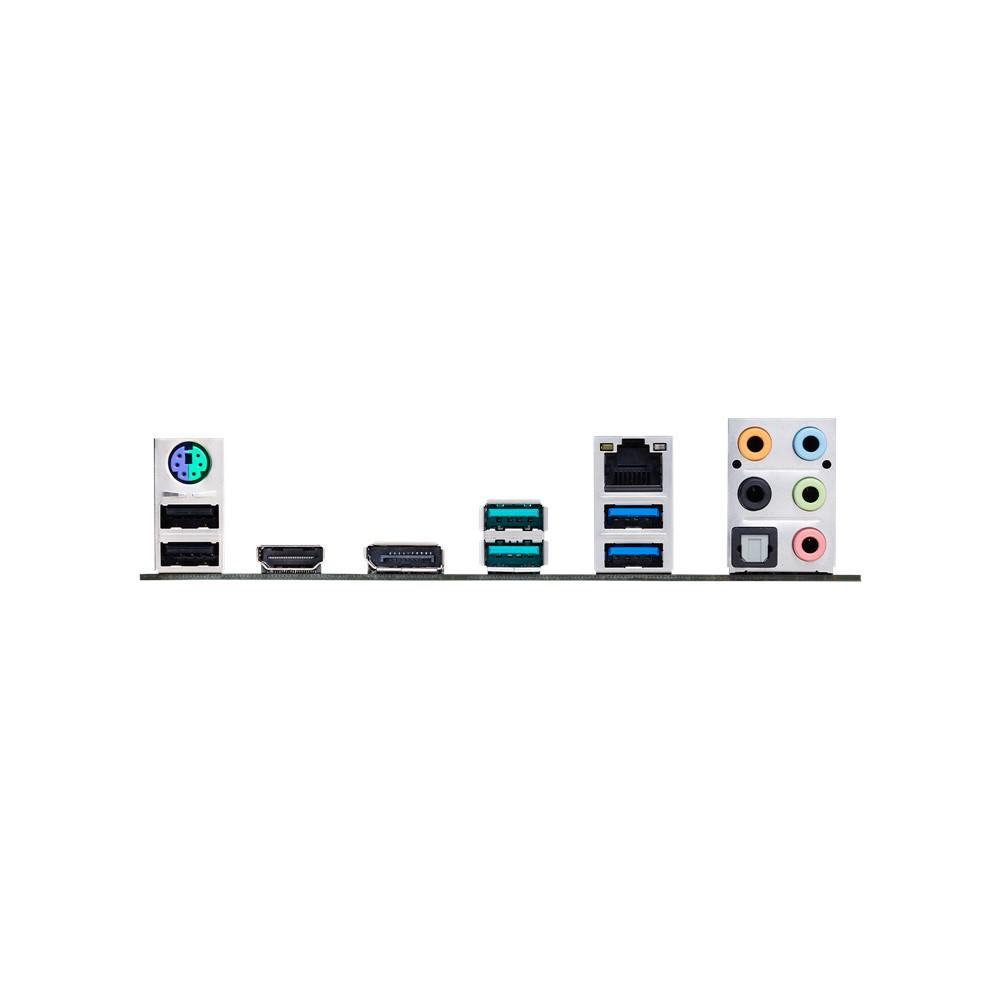

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors https://www.asus.com/Motherboards/PRIME-Z490-P/specifications/
