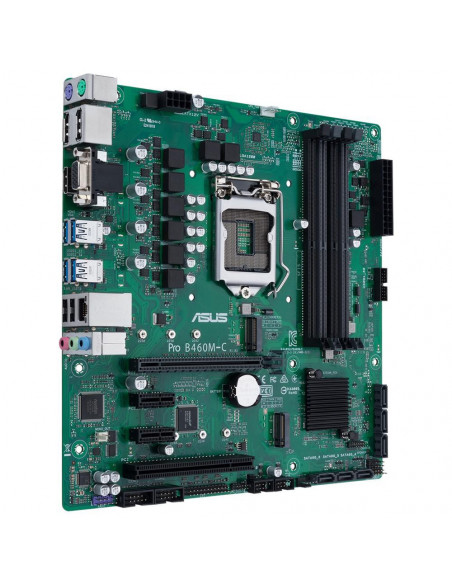

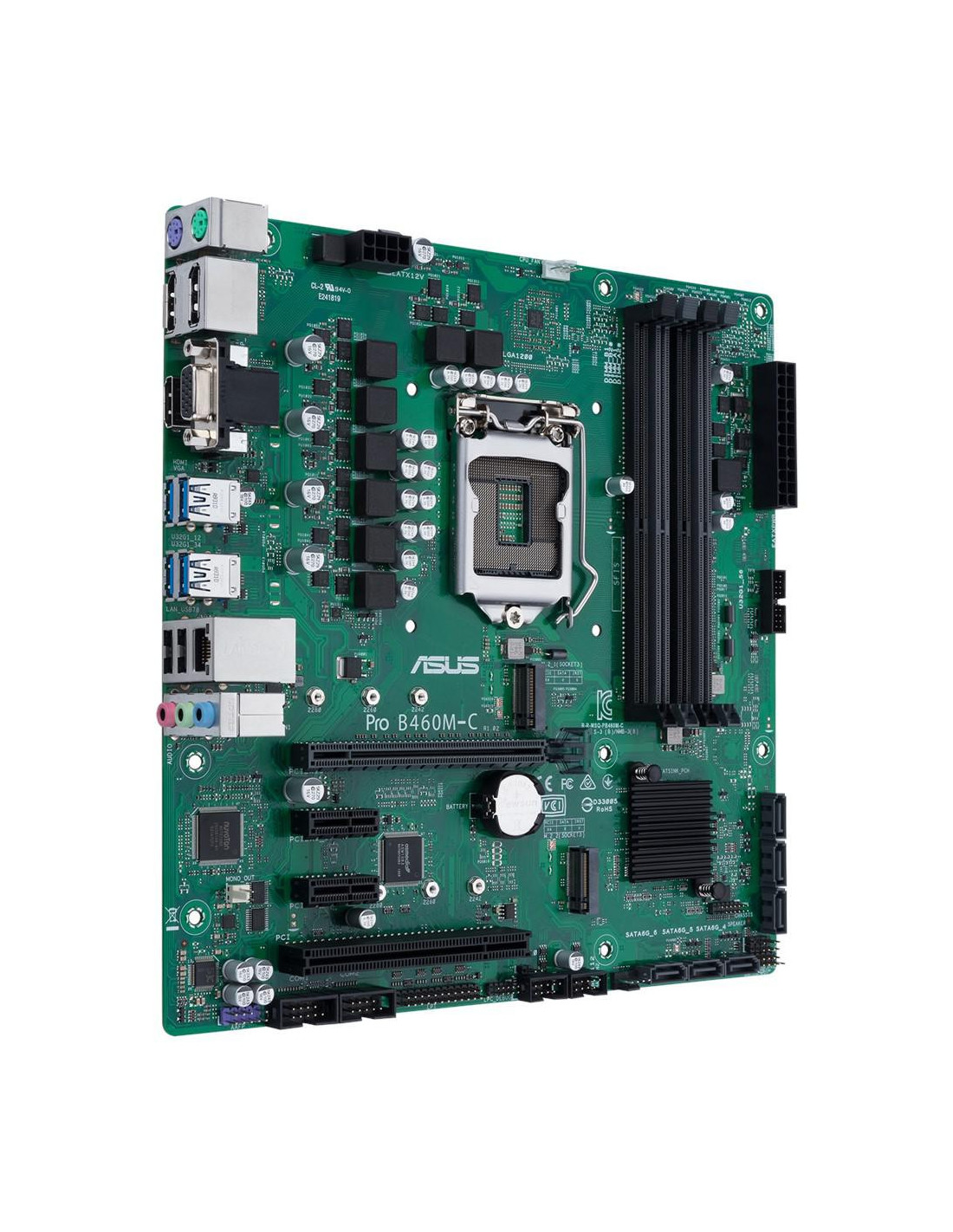

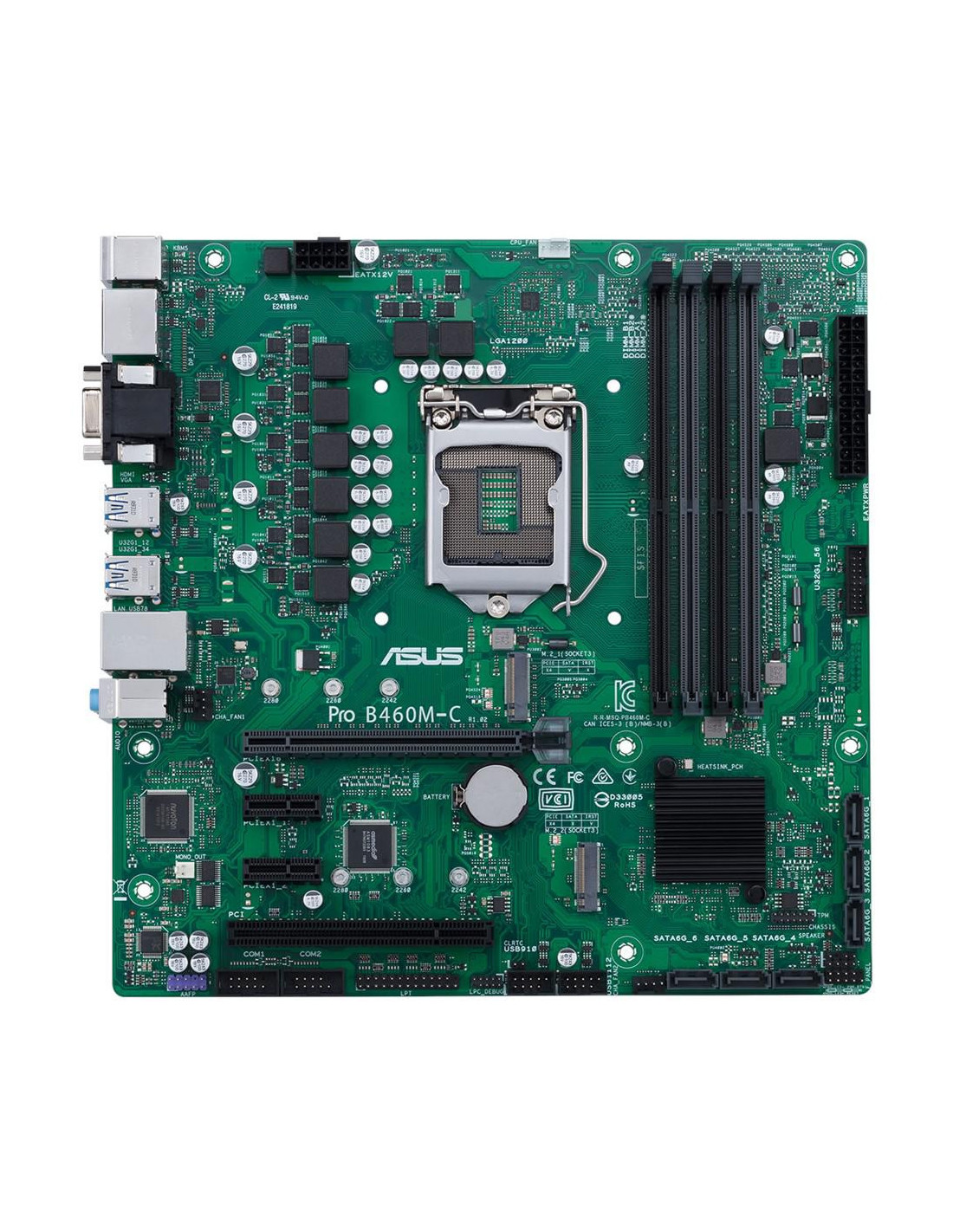

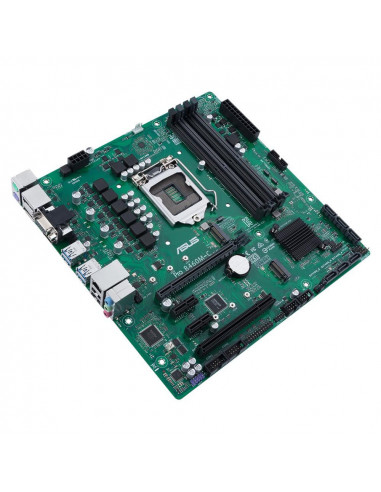

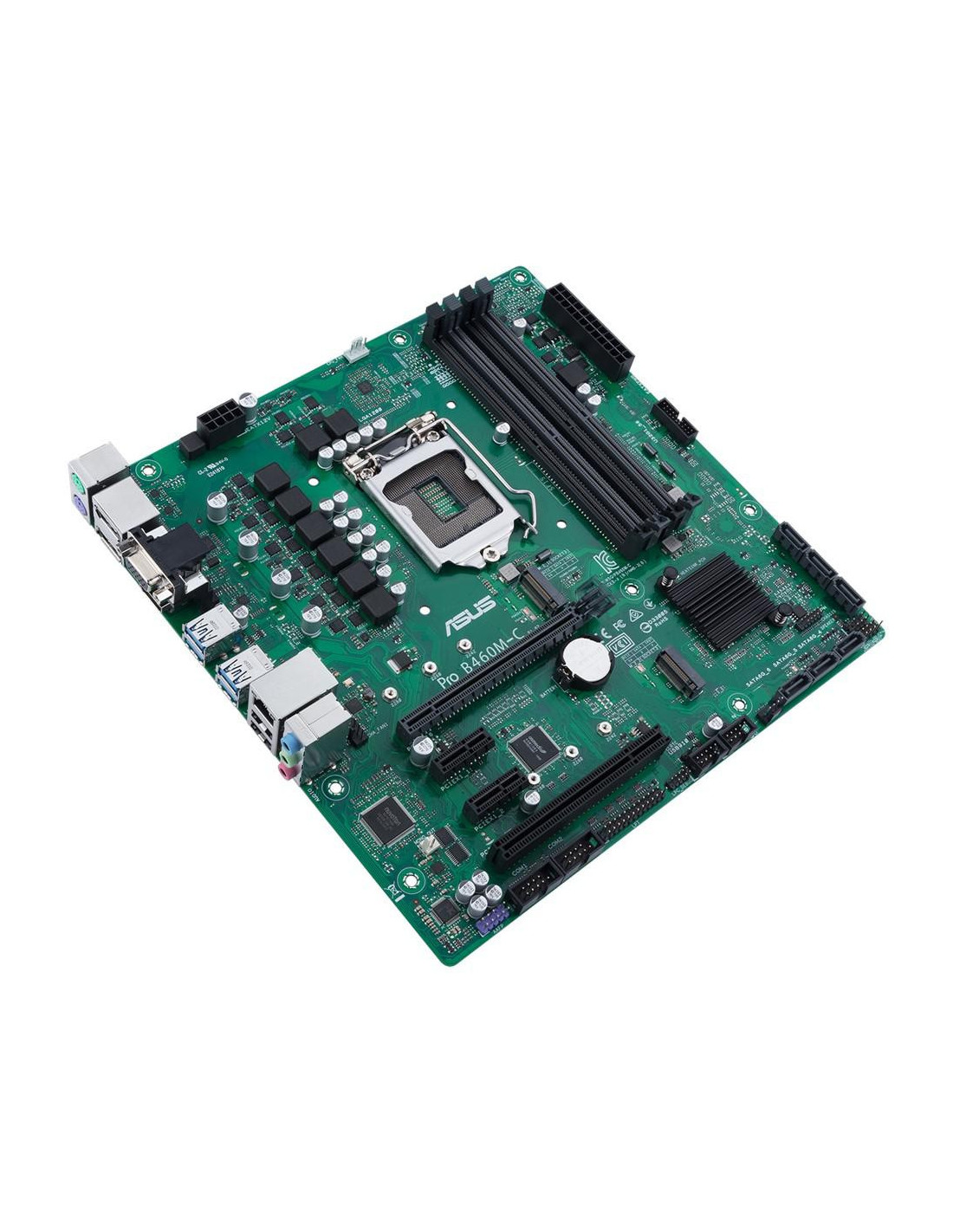

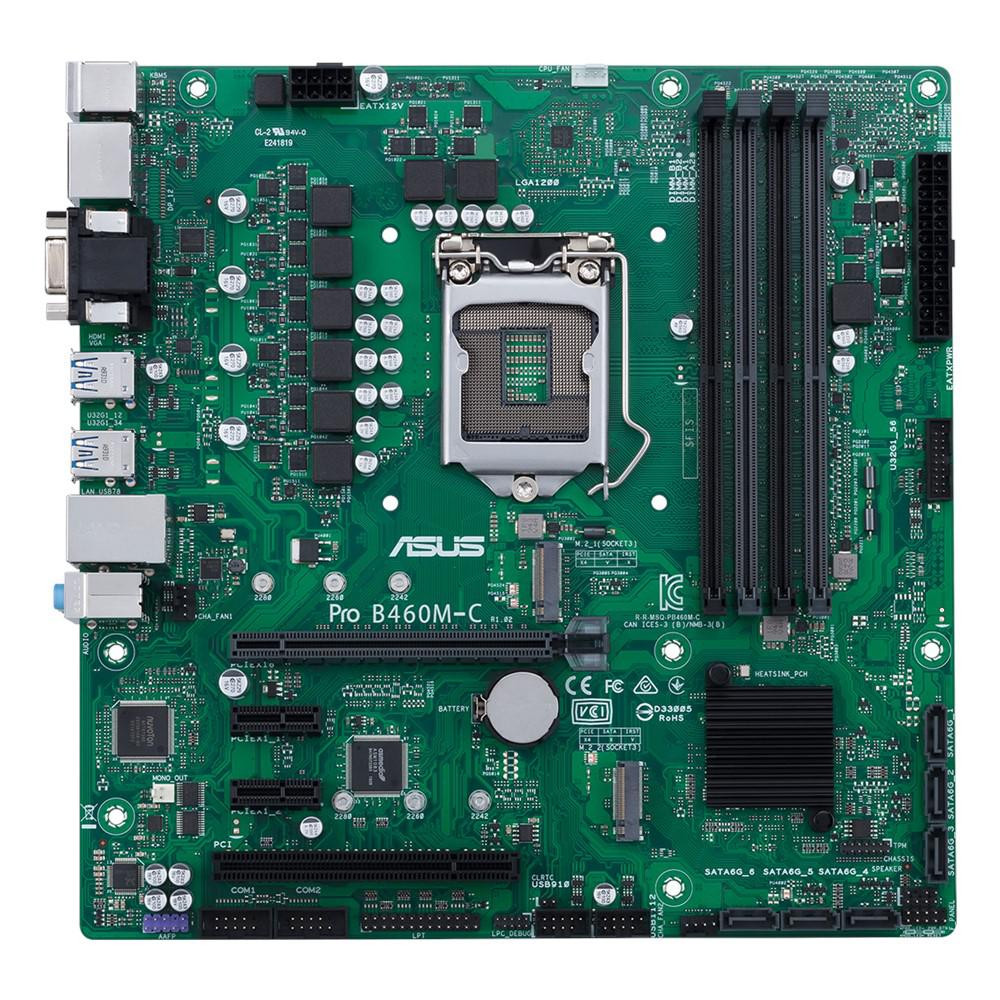

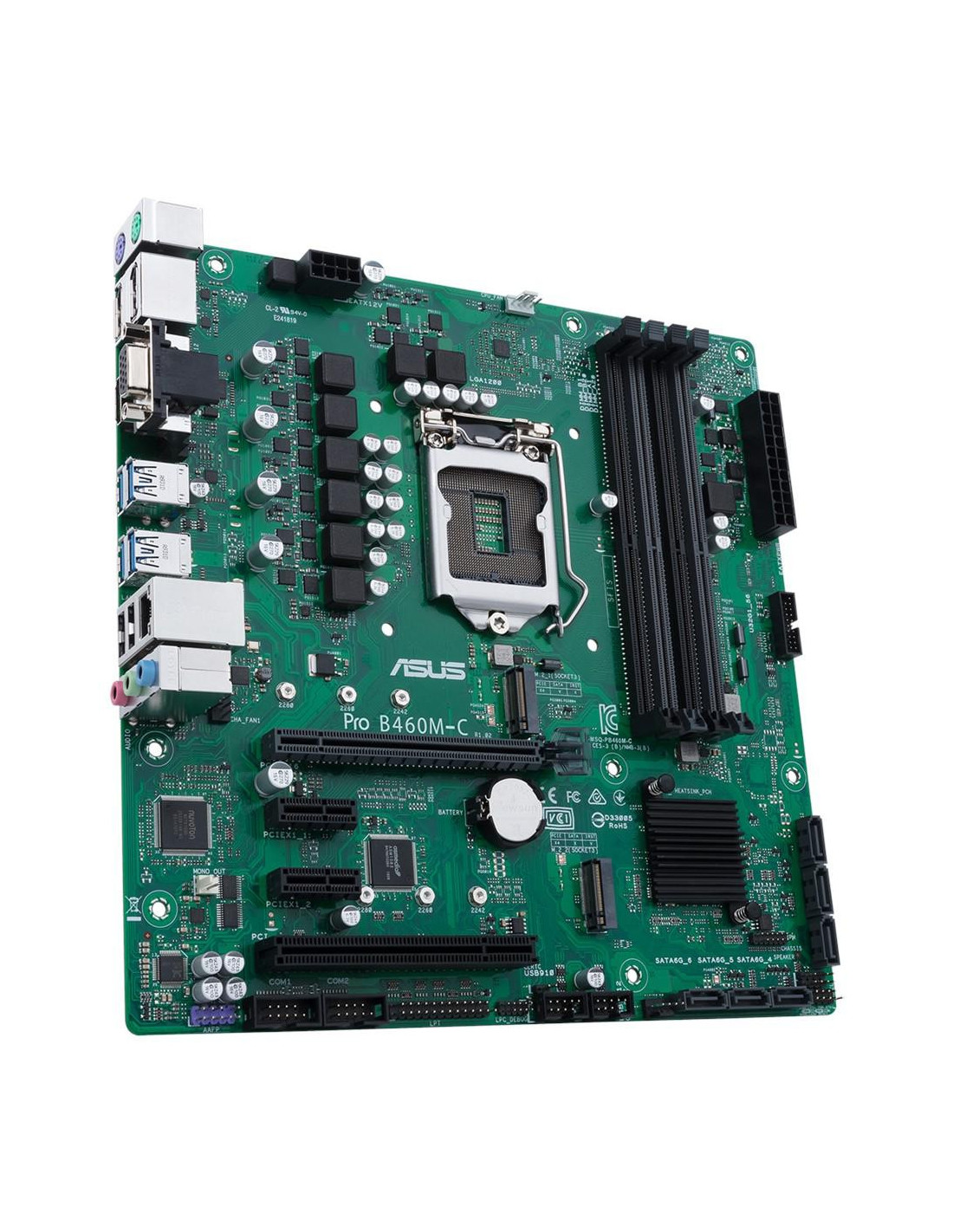

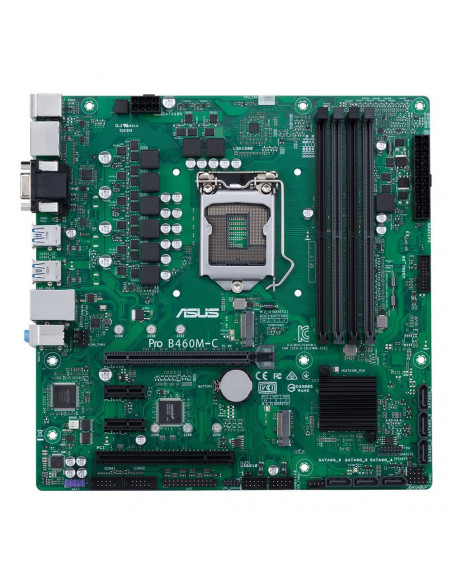

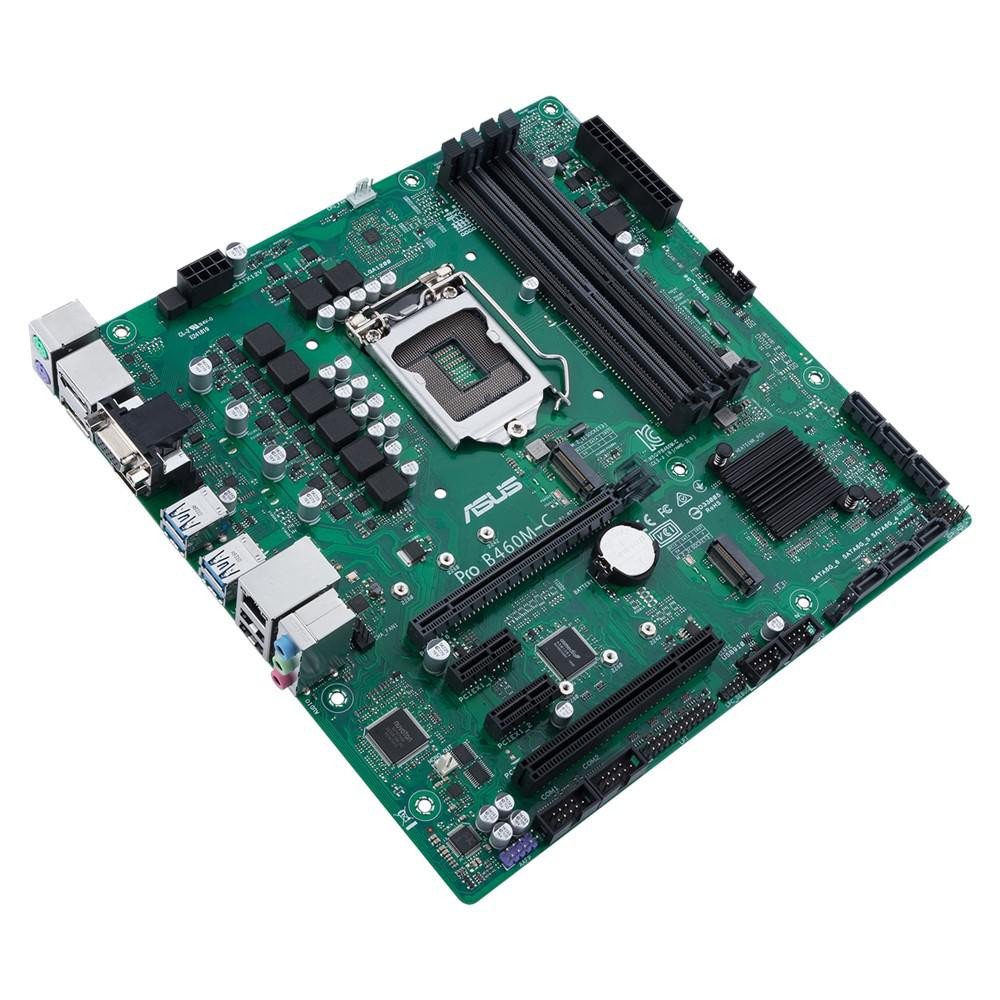

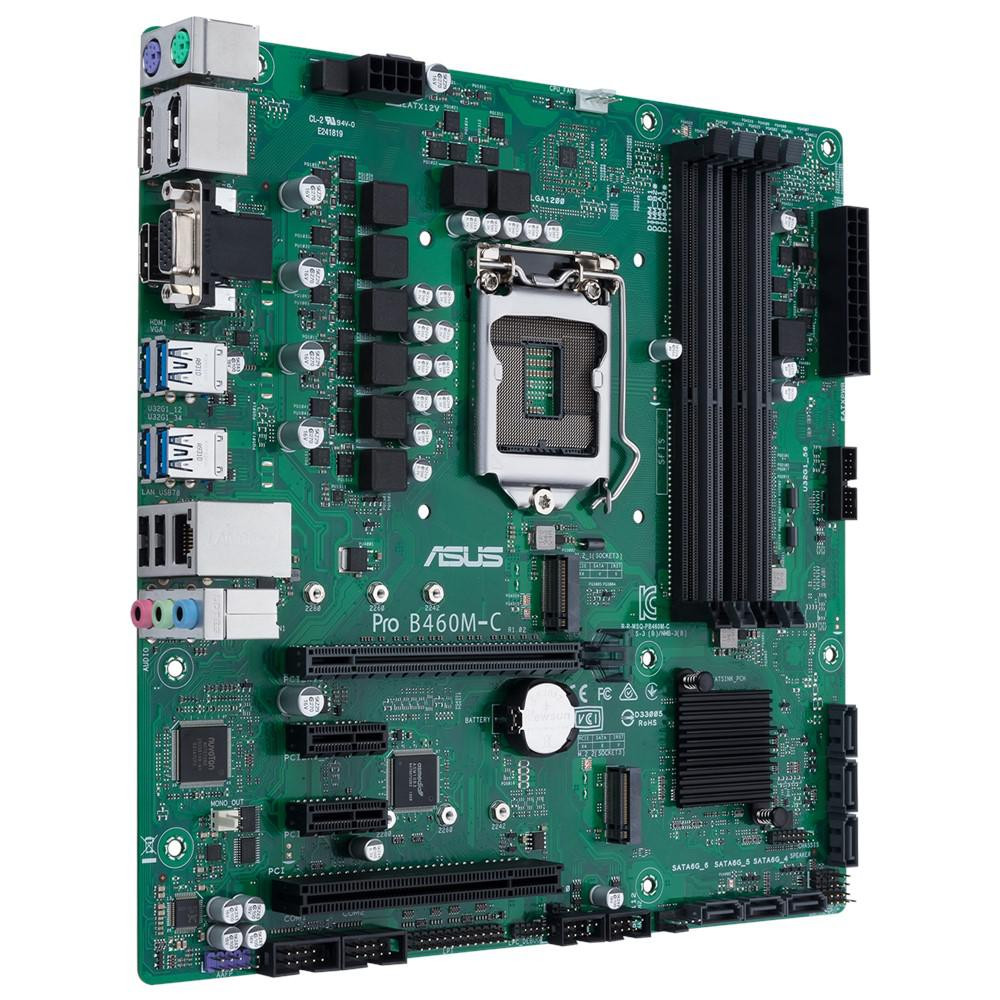

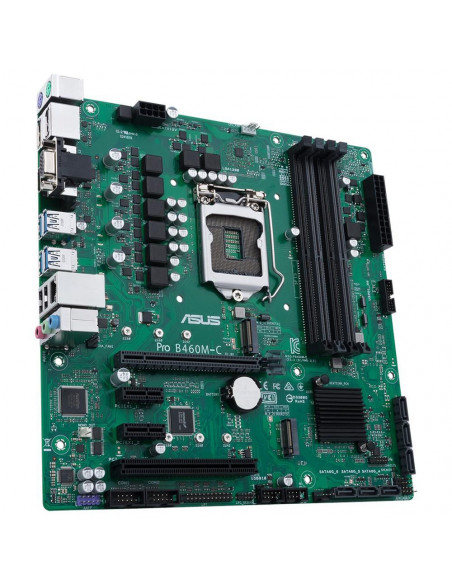

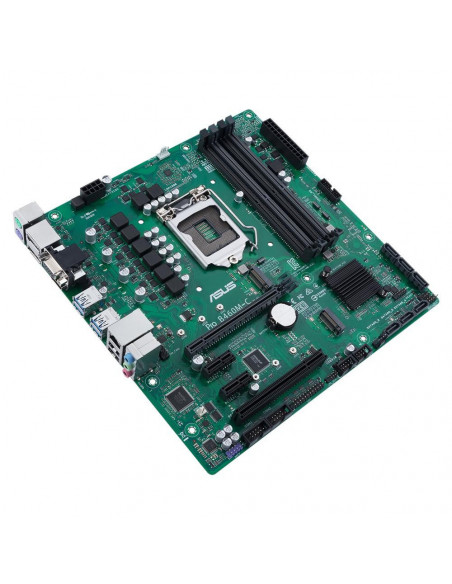

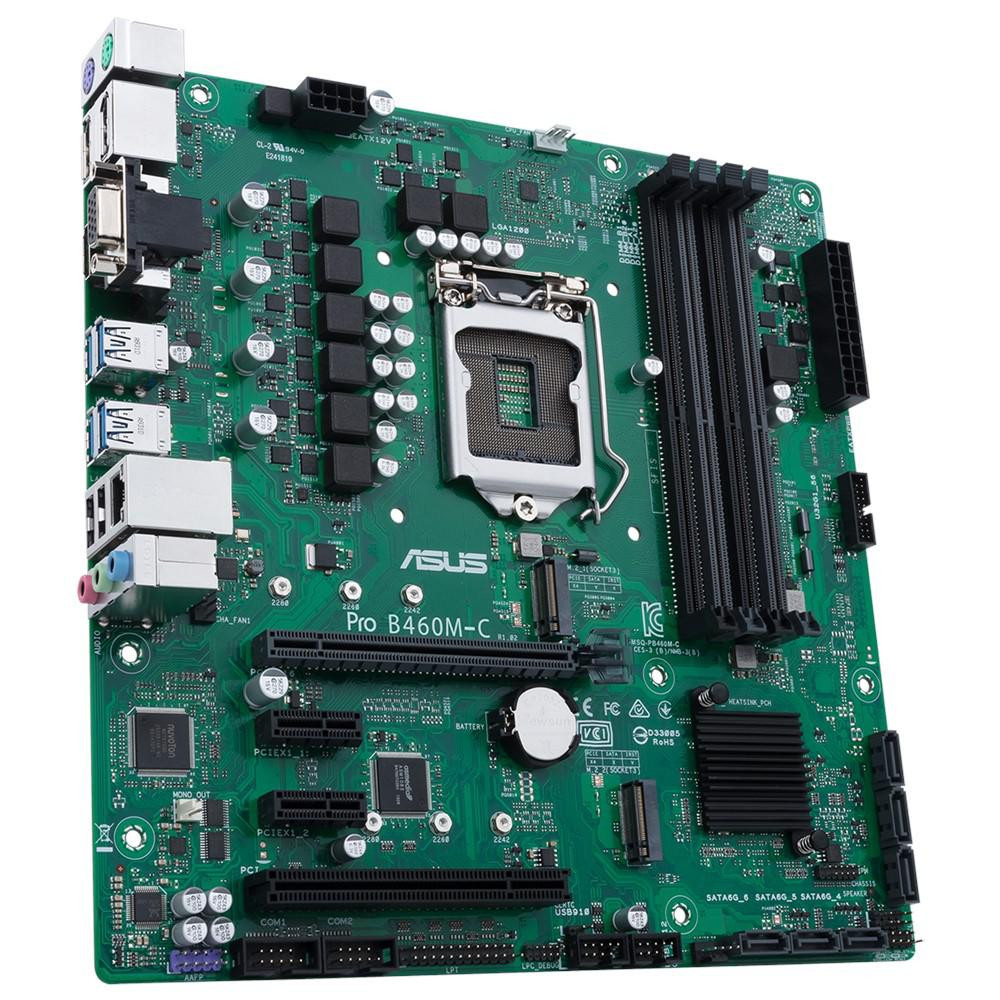

MB B460 S1200 MATX/PRO B460M-C/CSM ASUS

Placa de baza Asus PRO B460M-C/CSM Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B460 Memory 4 x DIMM, Max.
128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

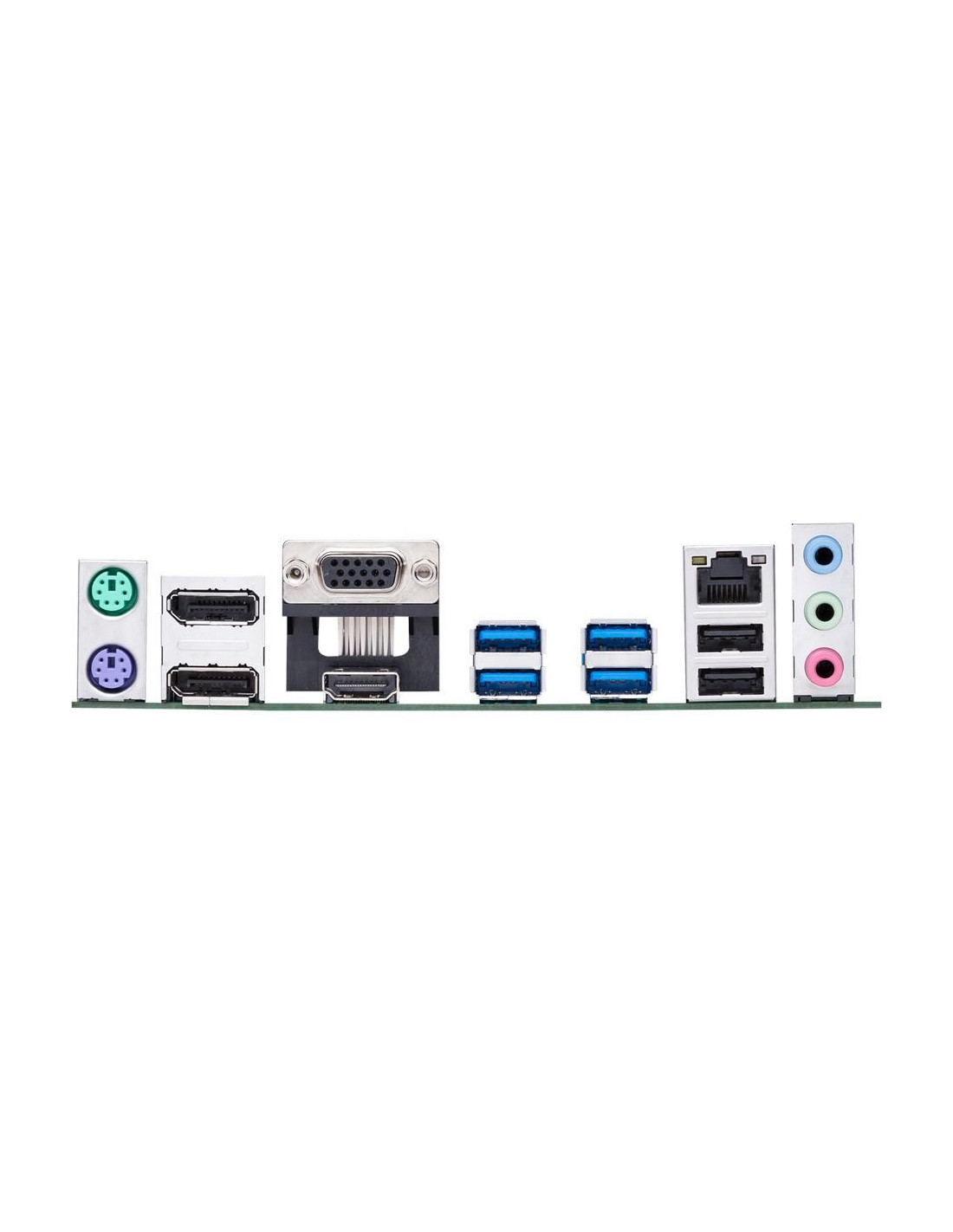

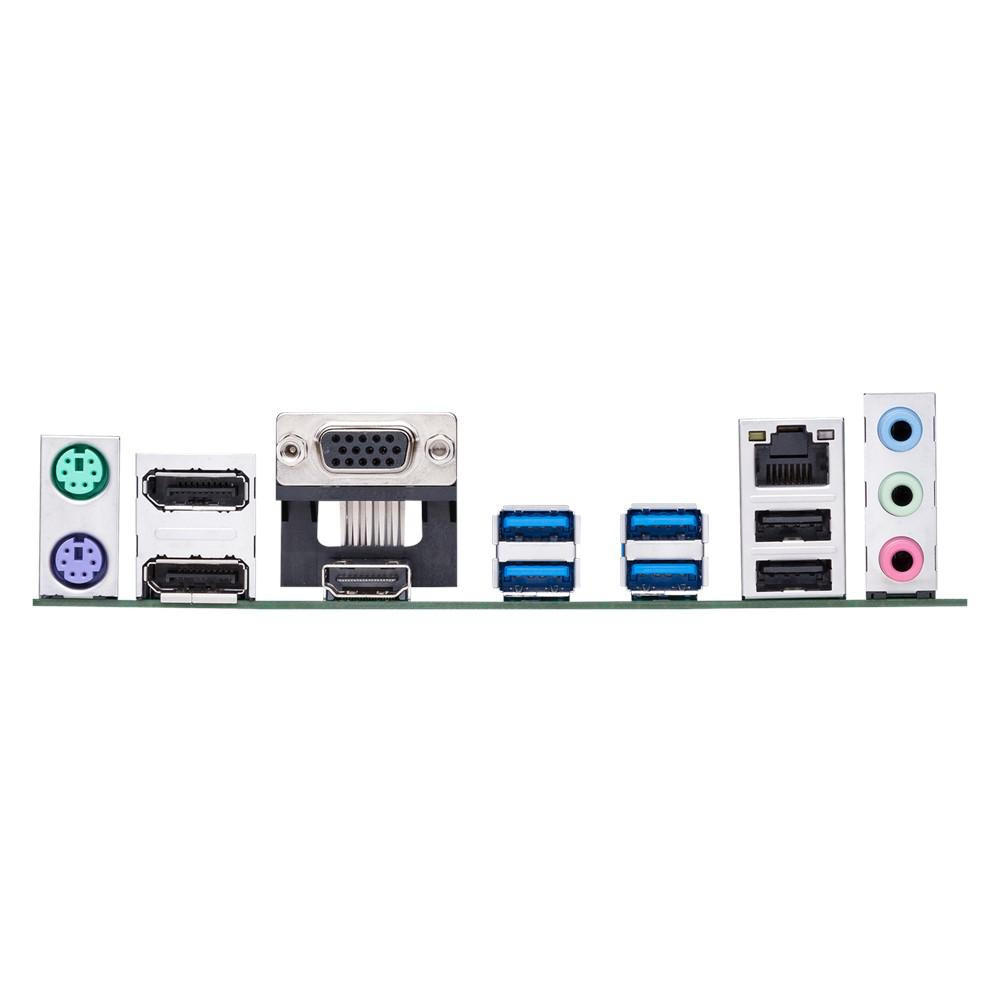

Graphic Integrated Graphics Processor 2 x DisplayPort 1.4 ** 1 x D-Sub 1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max.
resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any update.
Expansion Slots 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Multi-recording, Front Panel Jack- retasking, up to 24-Bit/192kHz playback mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) https://www.asus.com/Motherboards/Pro-B460M-C-CSM/specifications/
