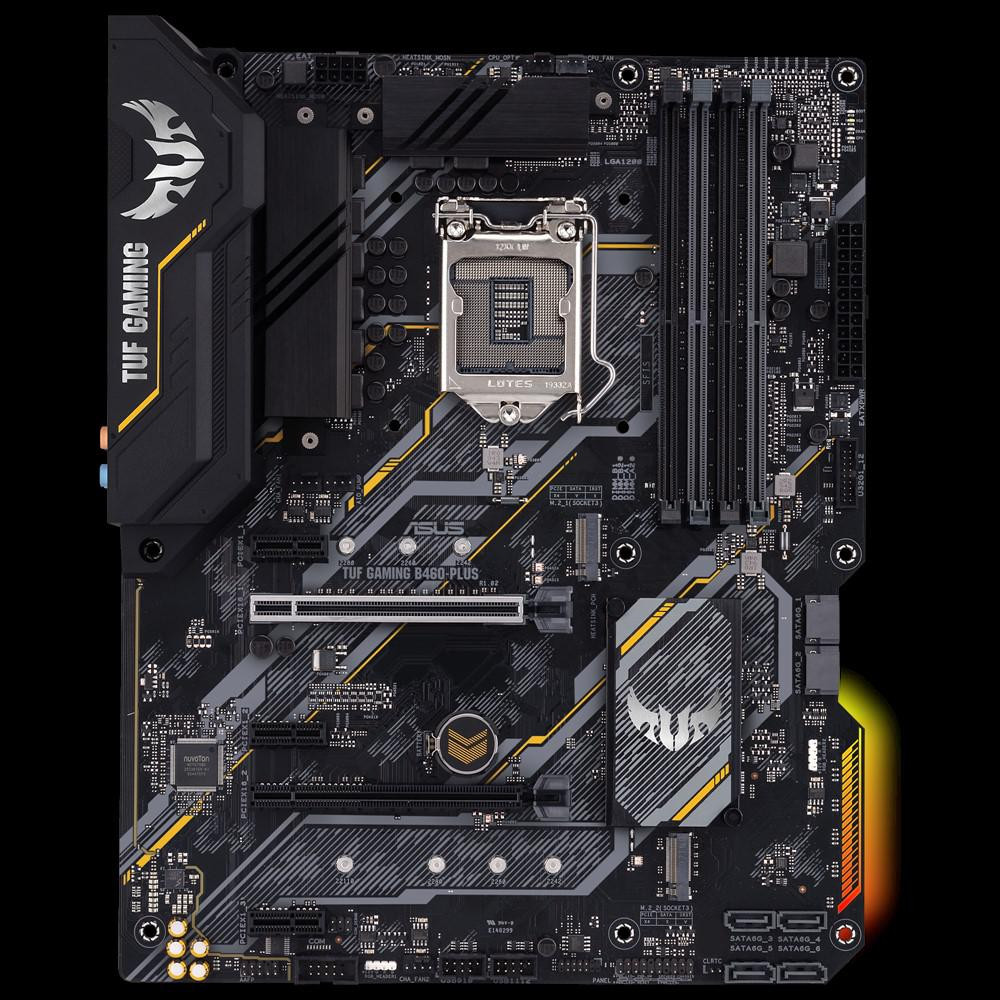

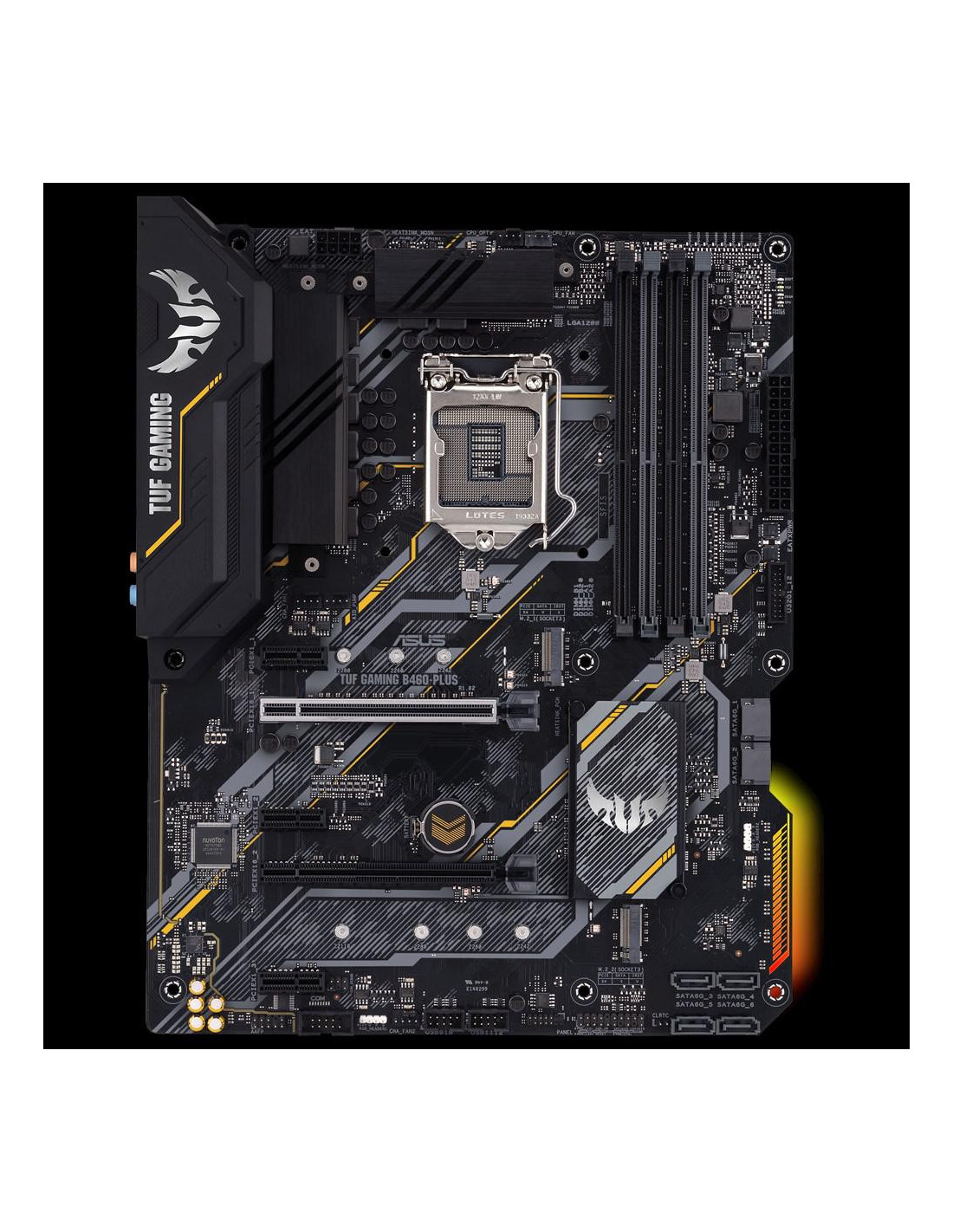

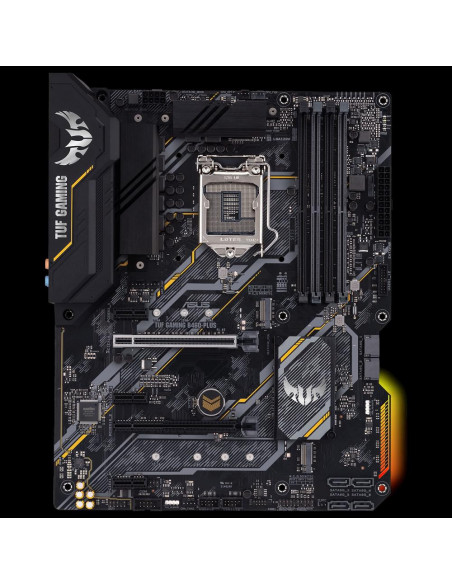

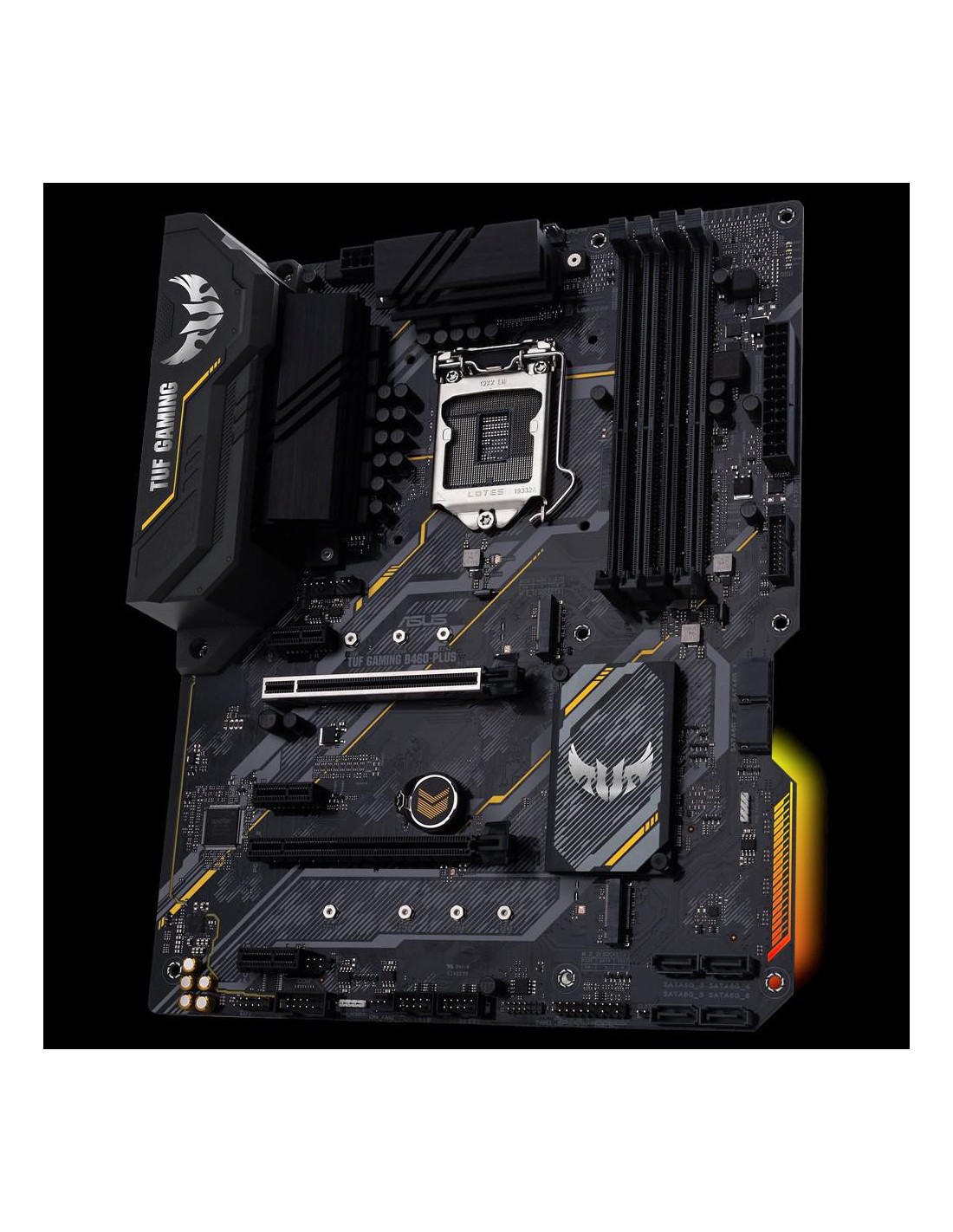

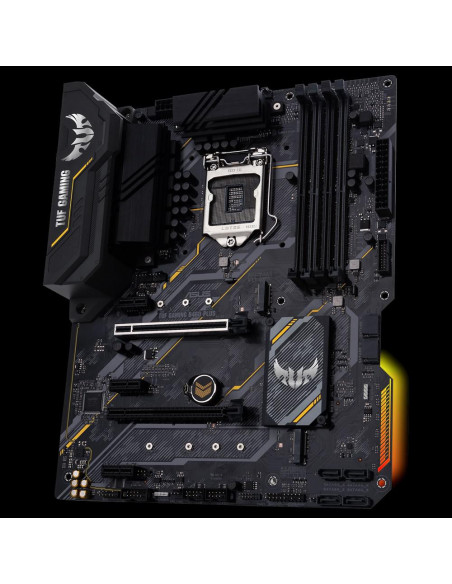

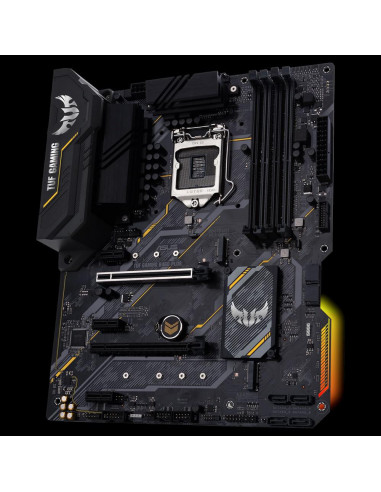

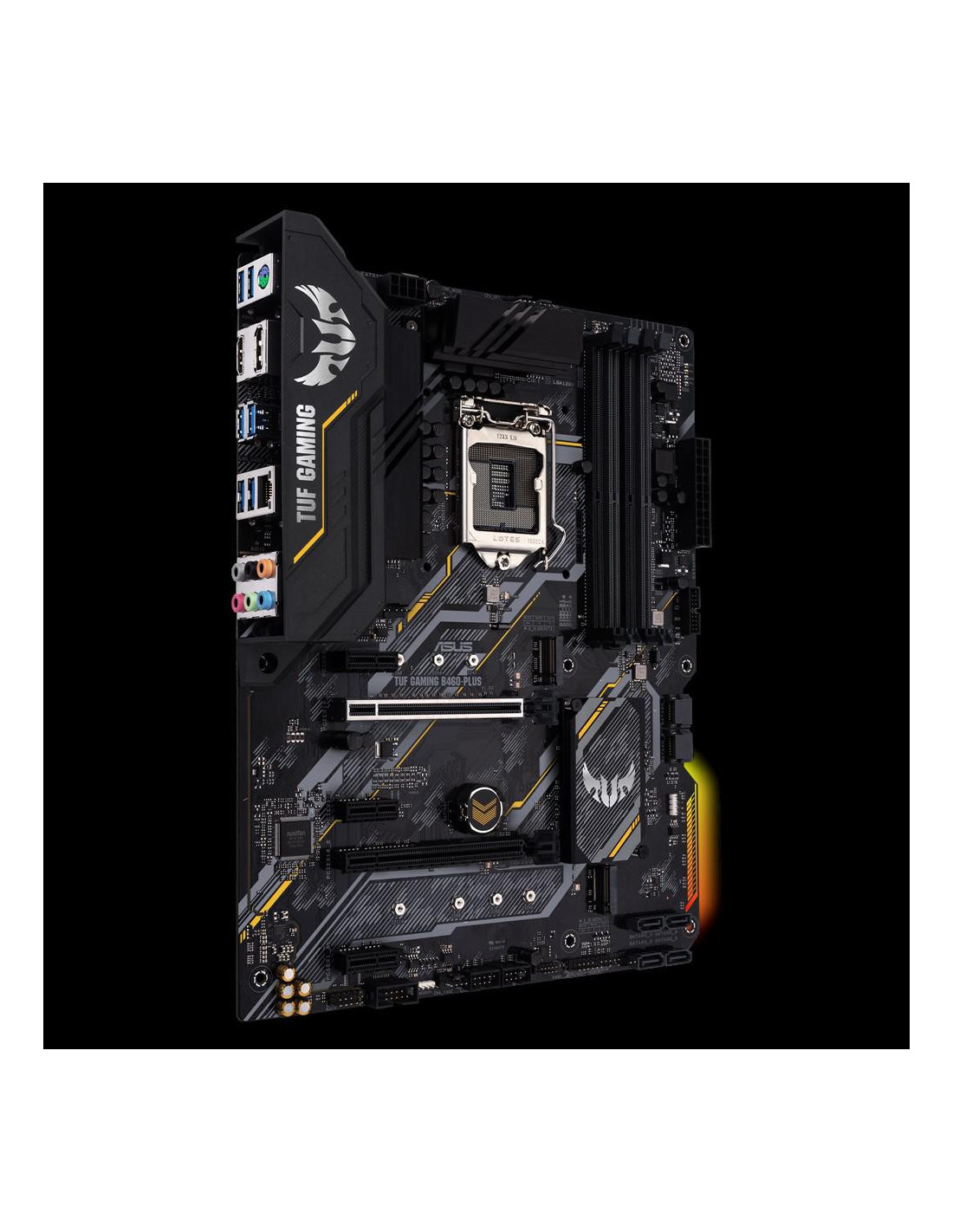

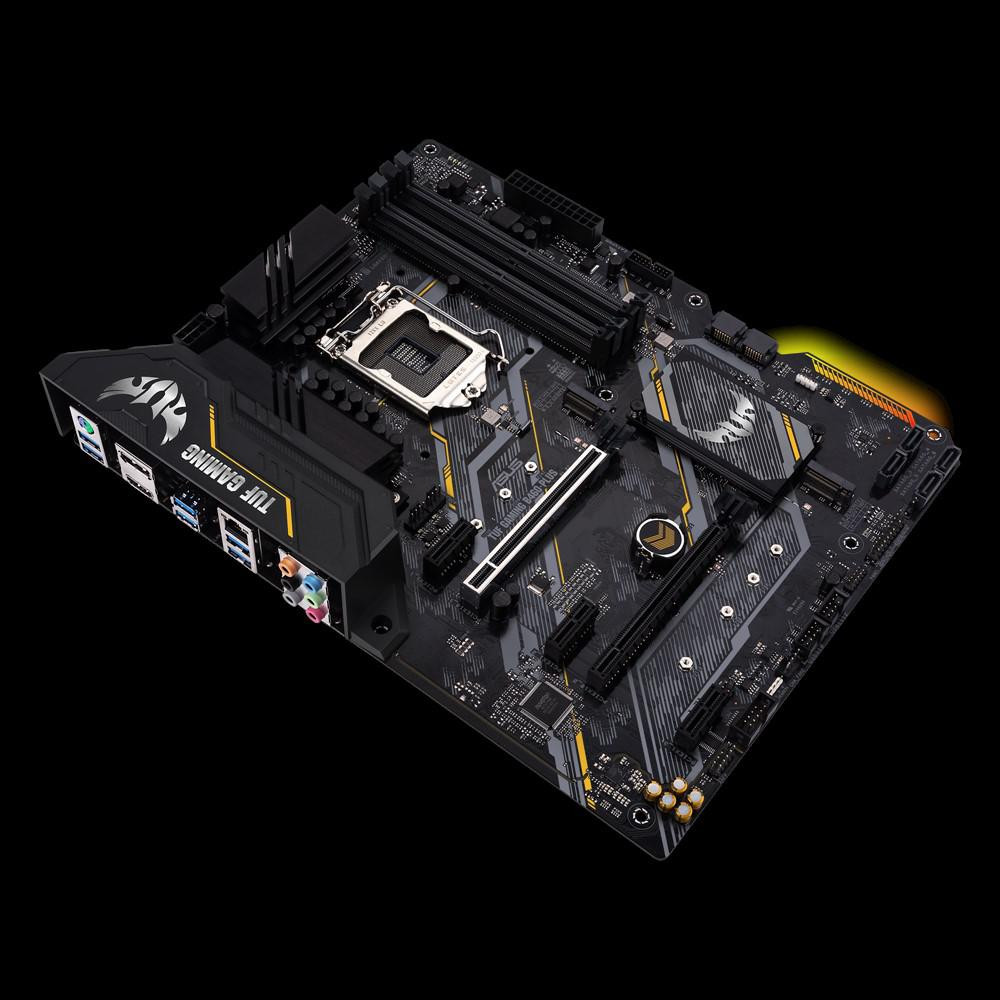

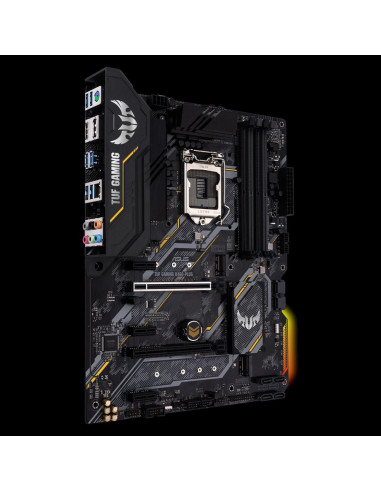

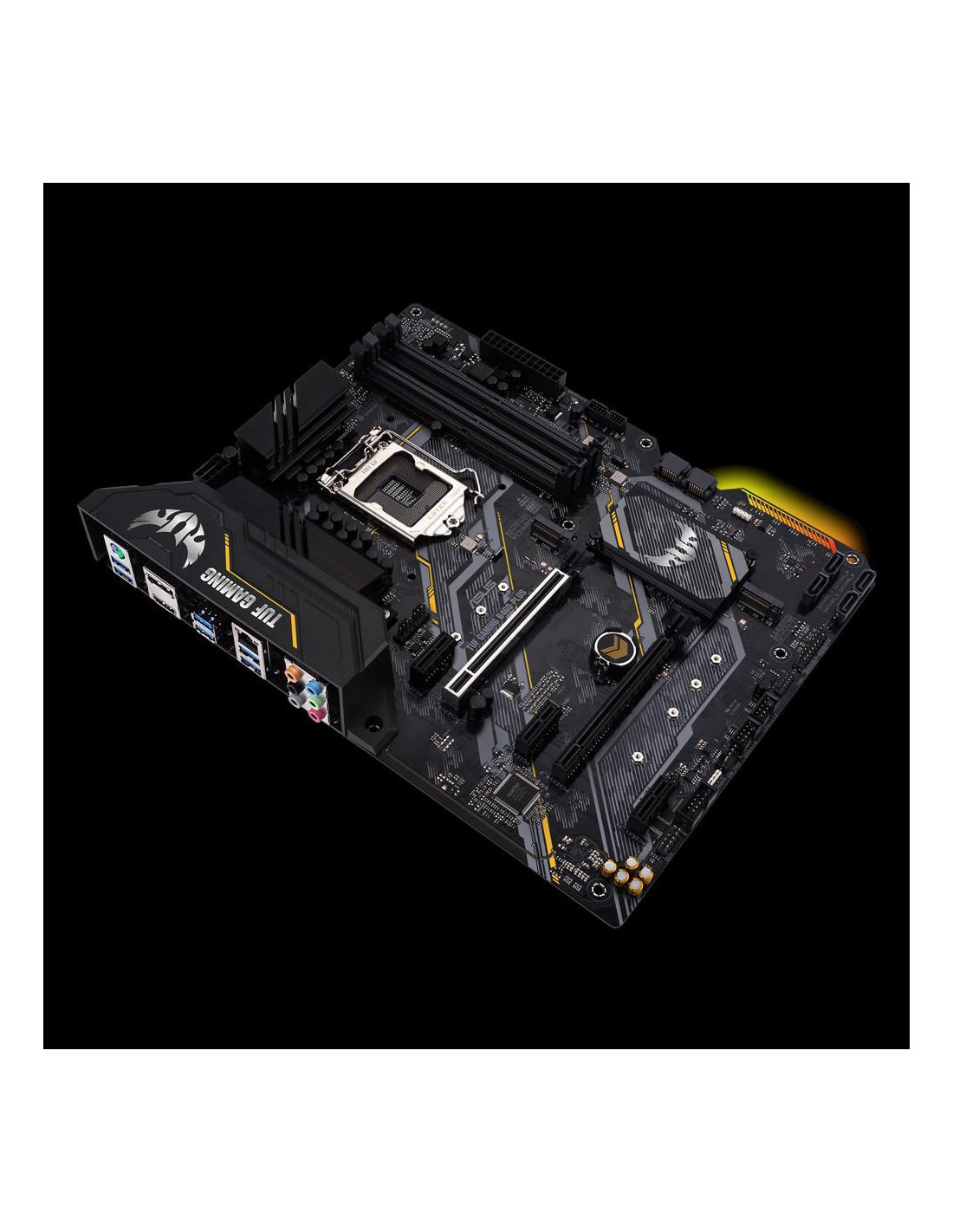

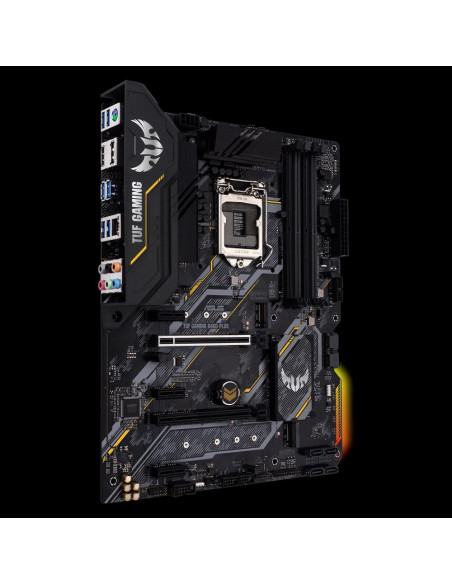

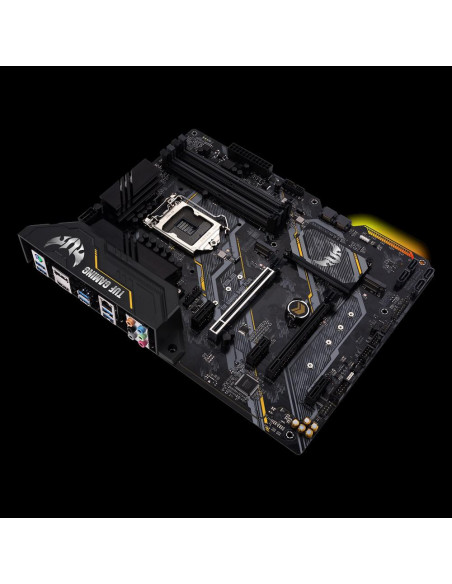

Placa de baza ASUS TUF GAMING B460-PLUS, Socket 1200

Placa de baza Asus TUF GAMING B460-PLUS Socket LGA 1200 CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® B460 Memory 4 x DIMM, Max.
128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max.
resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any update.
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0 x1 *1 Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *3 LAN Intel® I219-V 1Gb Ethernet Wireless Data Network Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio Realtek ALC S1200A 8-Channel High Definition Audio CODEC * - Supports : Jack-detection, Multi-recording, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets.
- Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8- channel audio output.

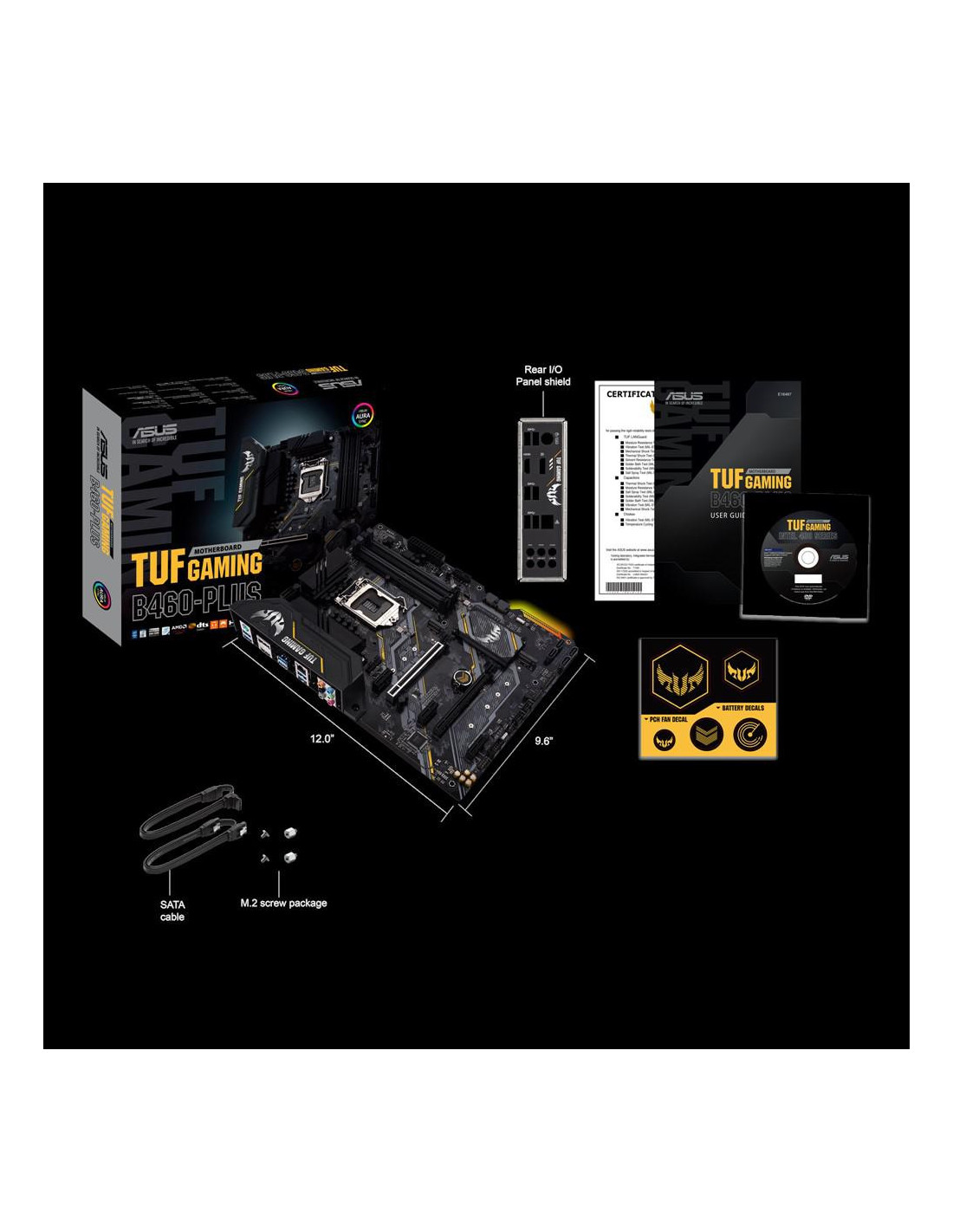

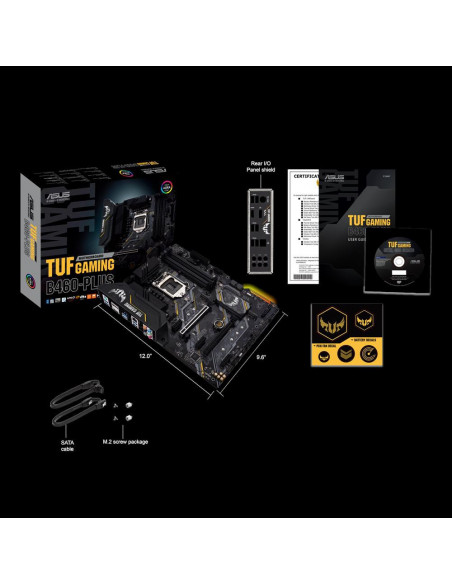

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) https://www.asus.com/Motherboards/TUF-GAMING-B460-PRO-WI- FI/specifications/
