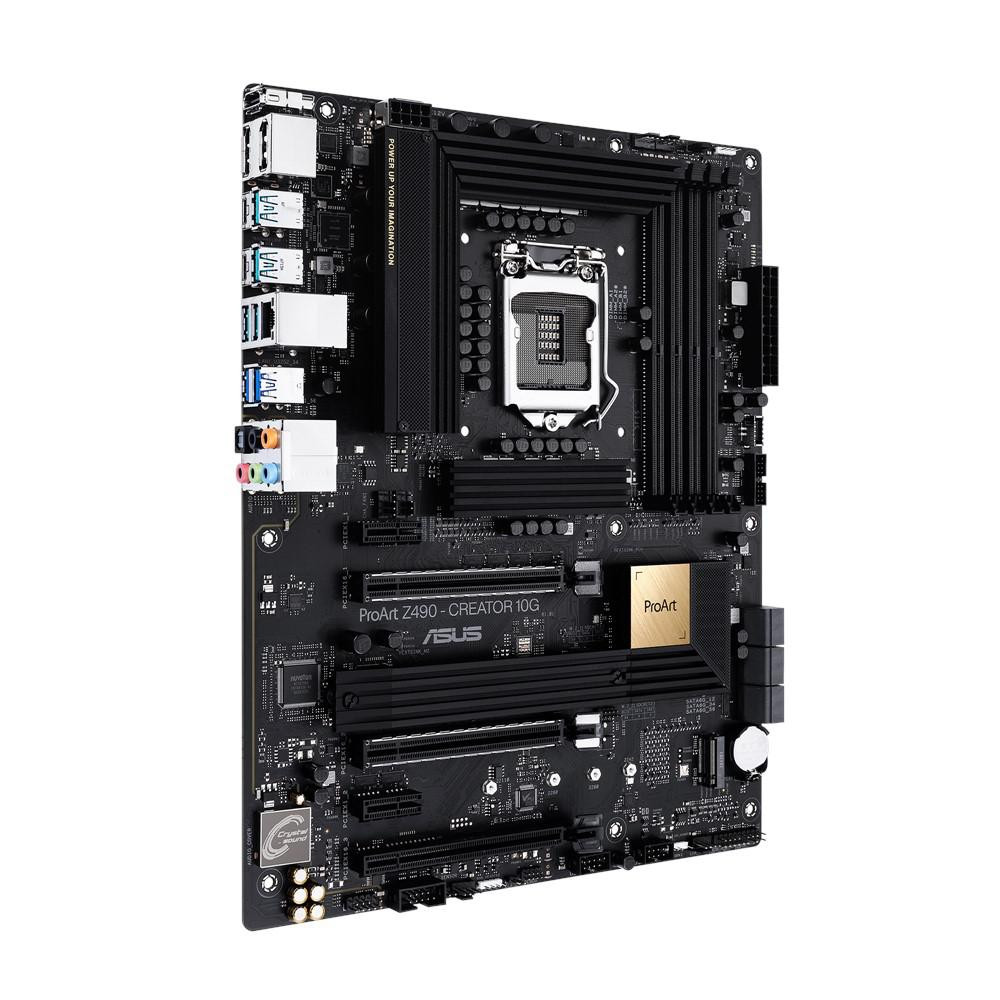

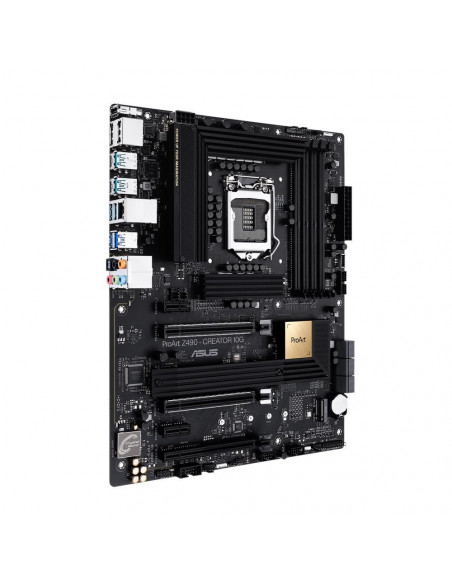

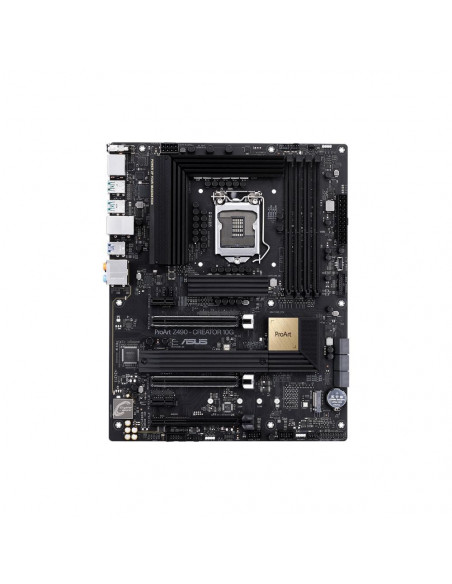

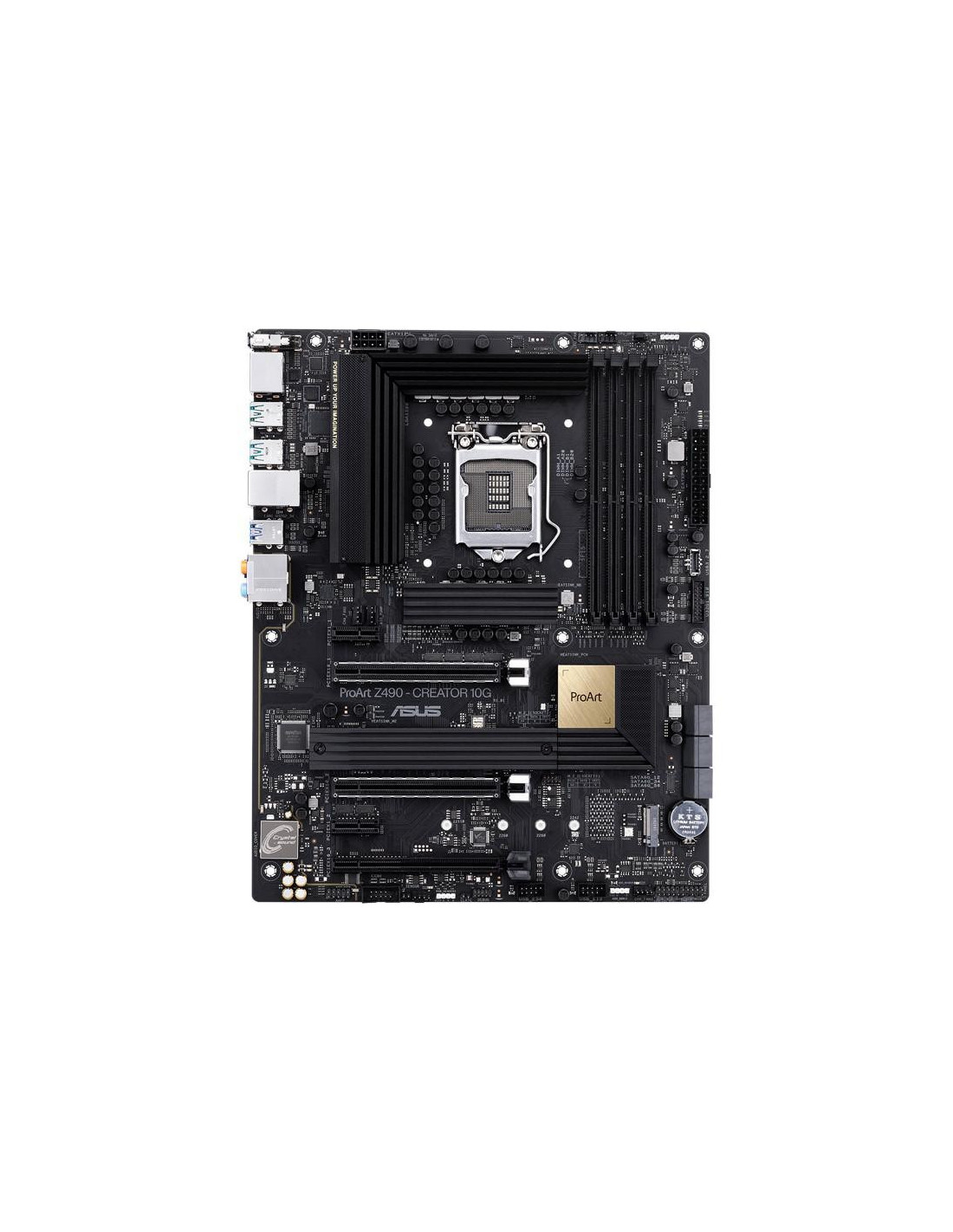

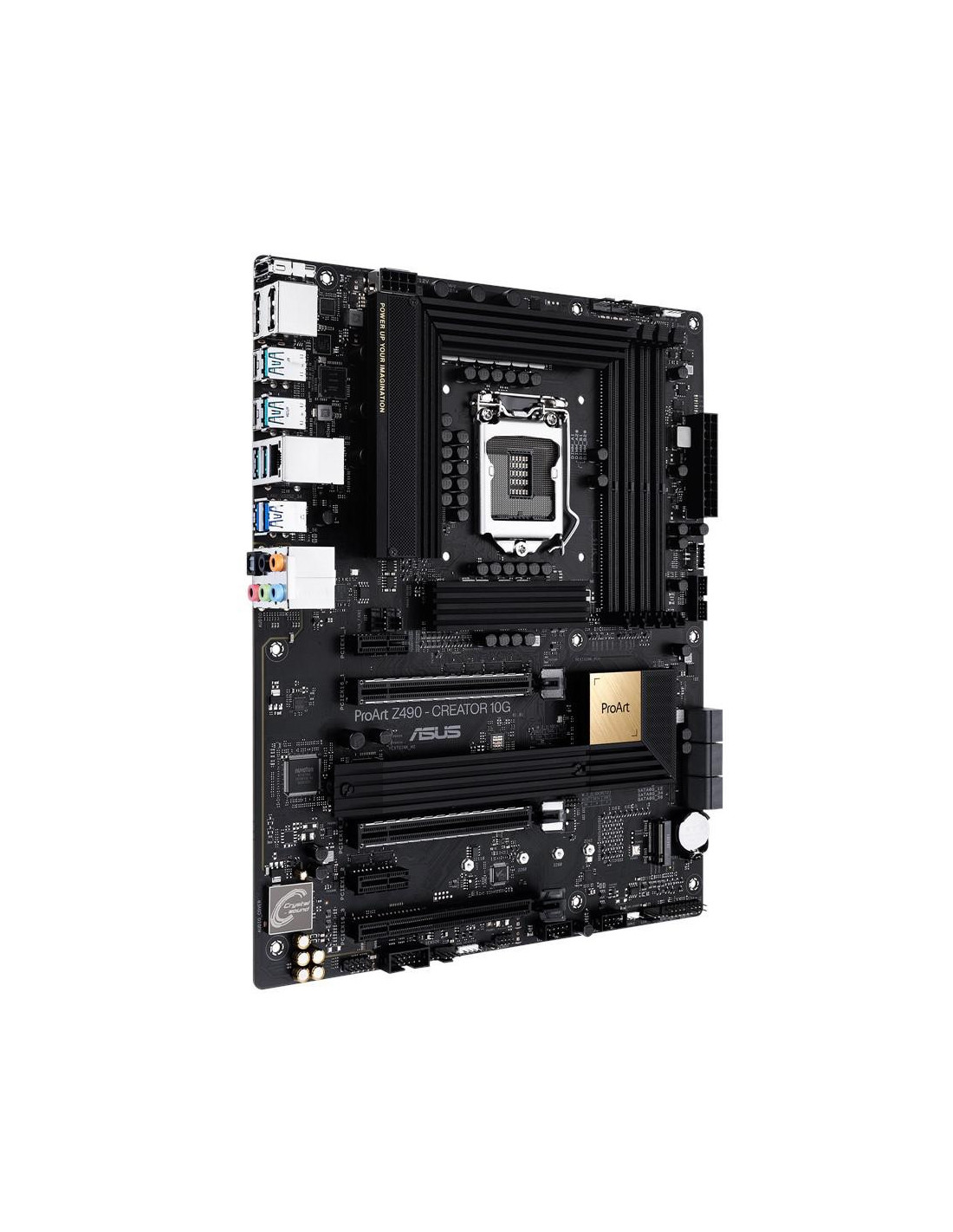

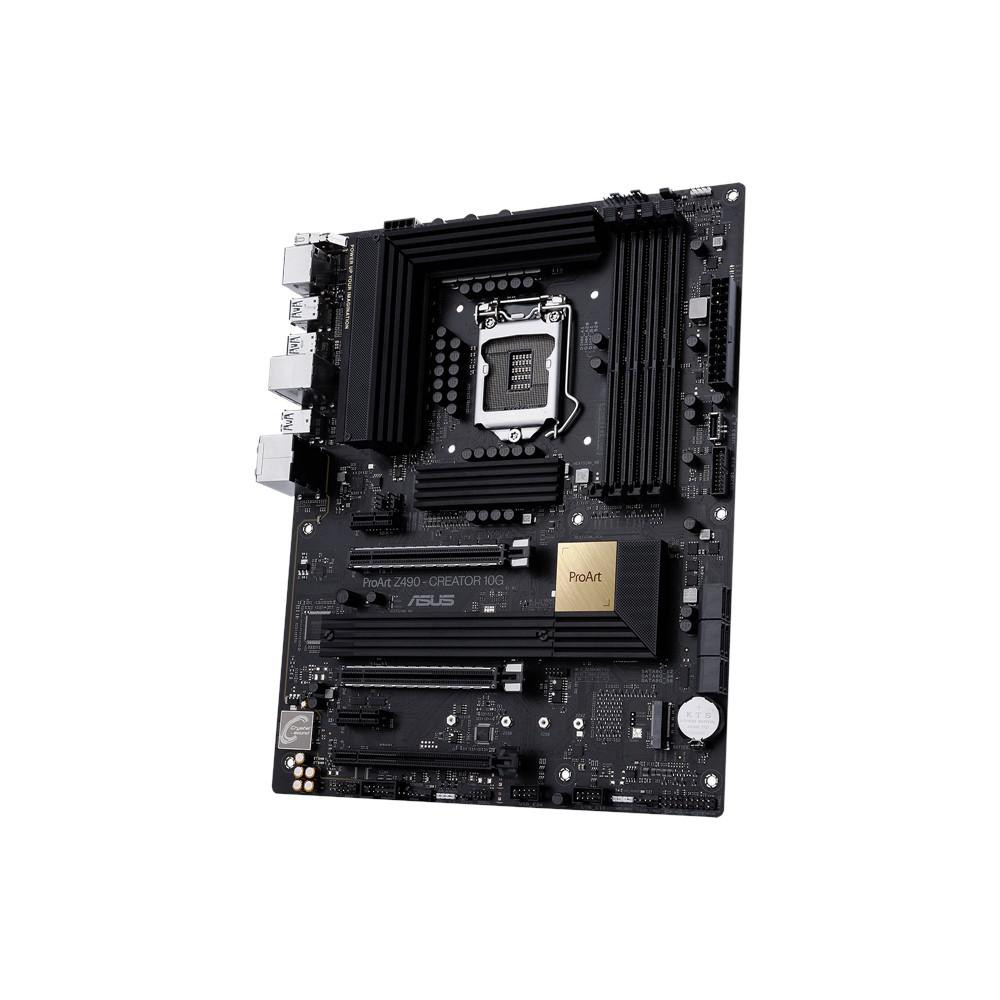

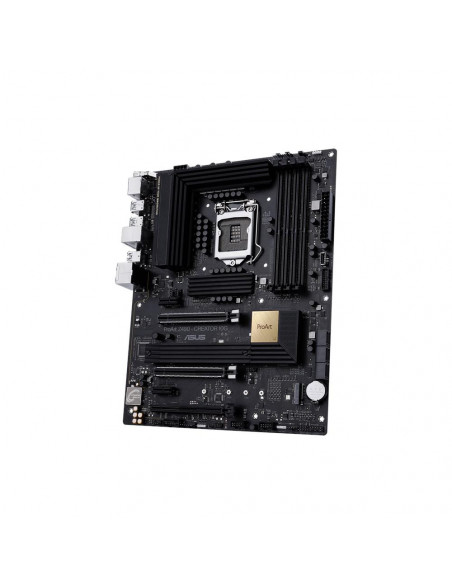

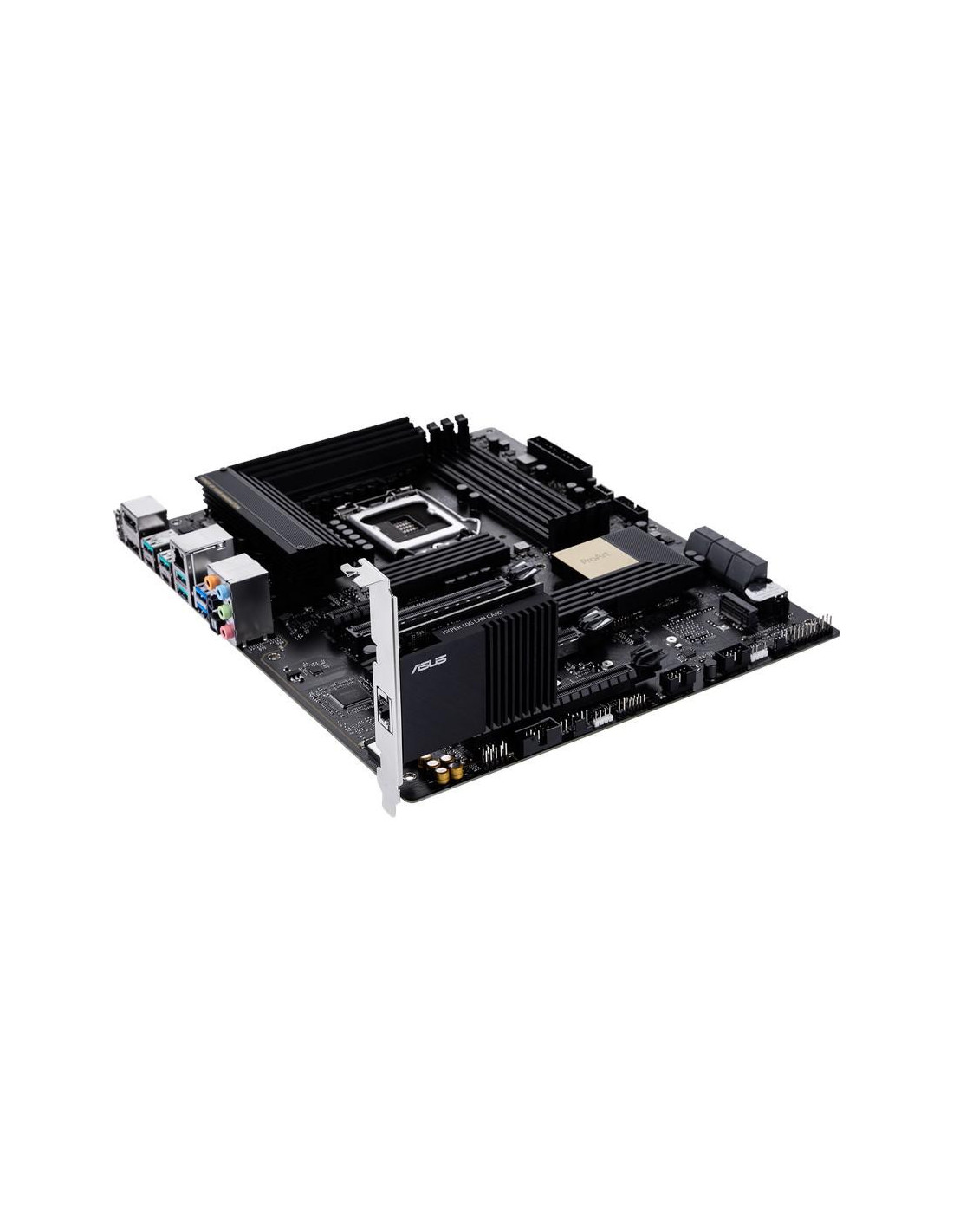

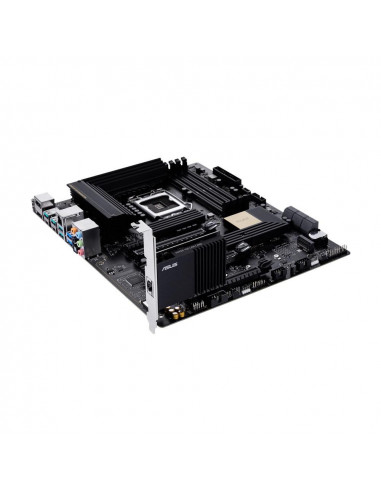

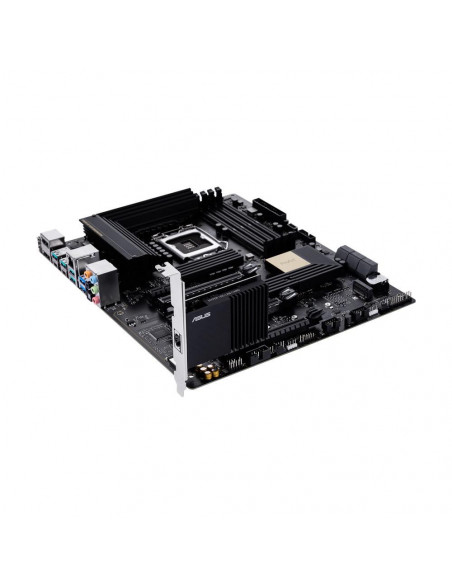

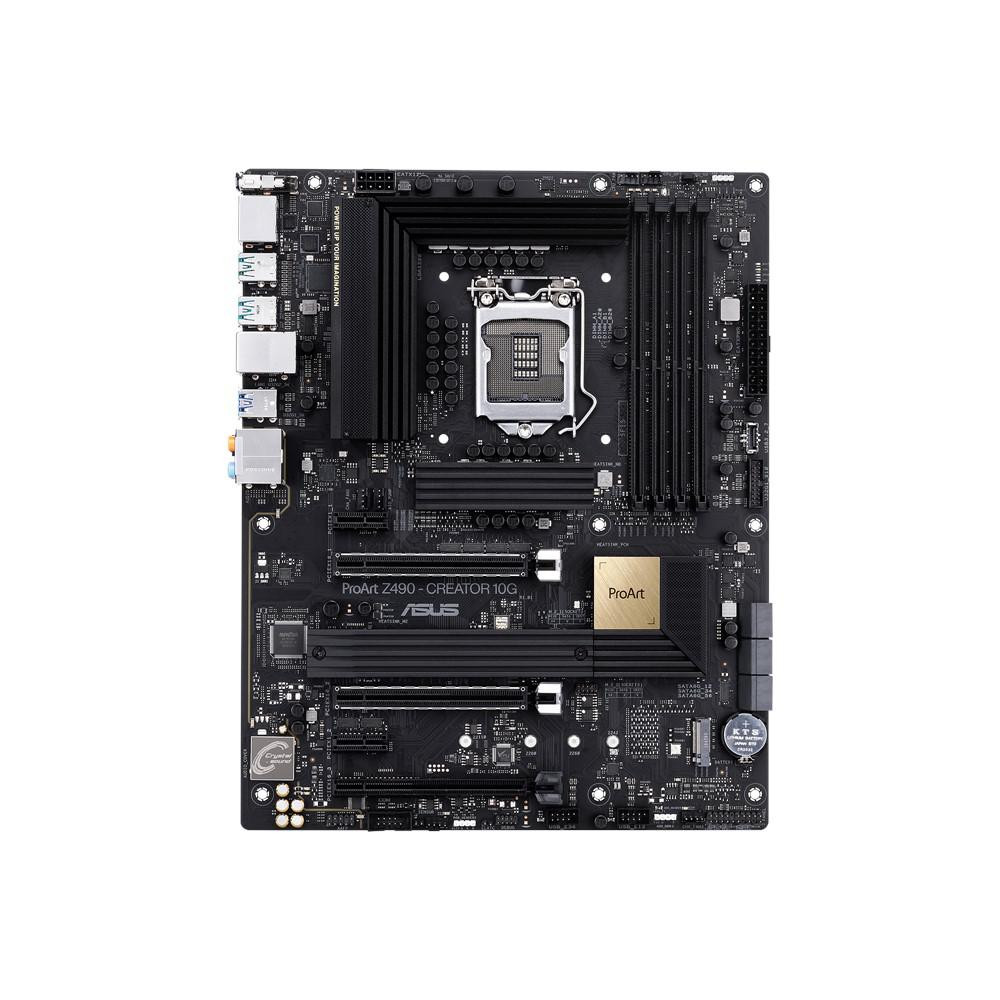

Placa de baza ASUS ProART Z490-CREATOR 10G, Socket 1200

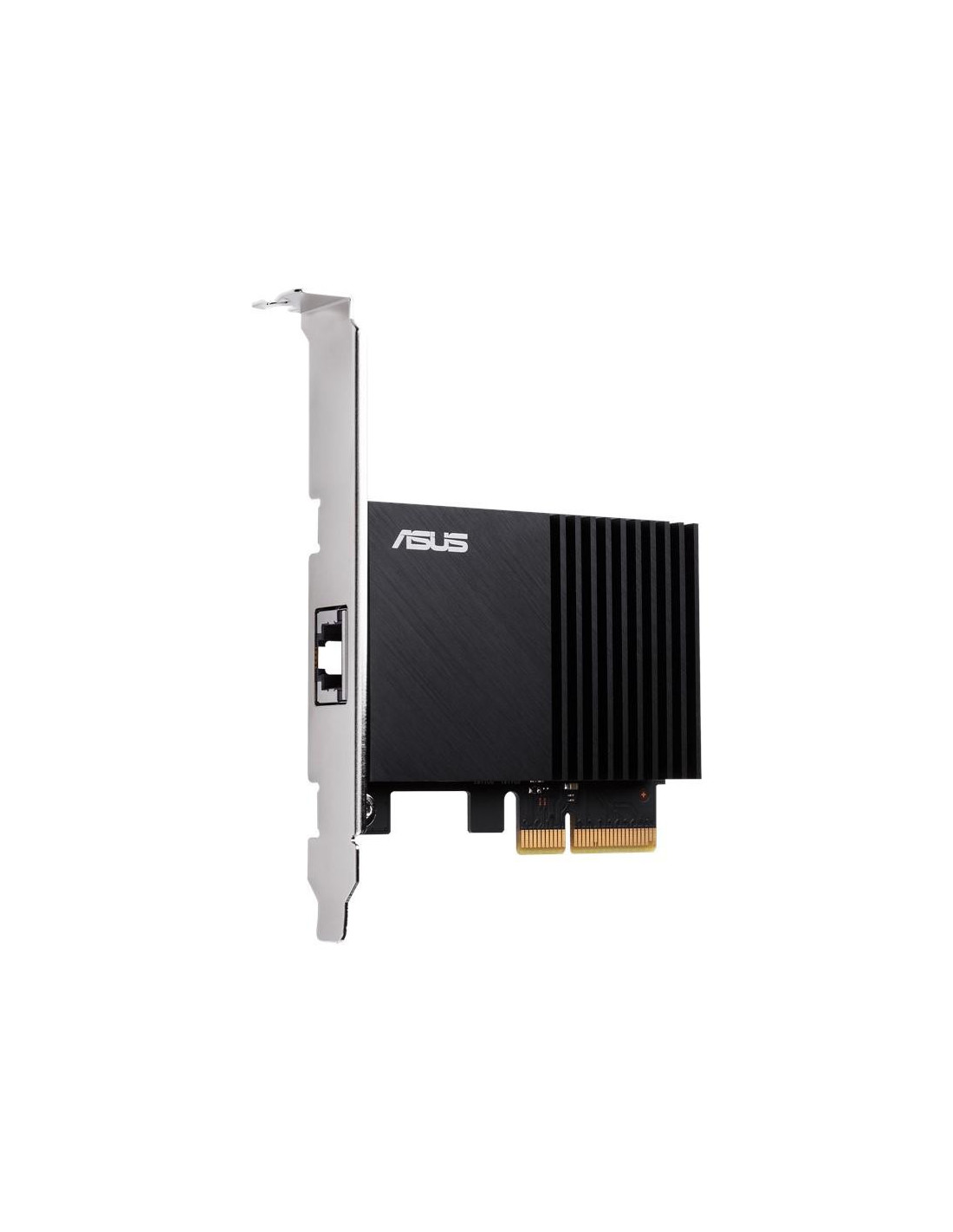

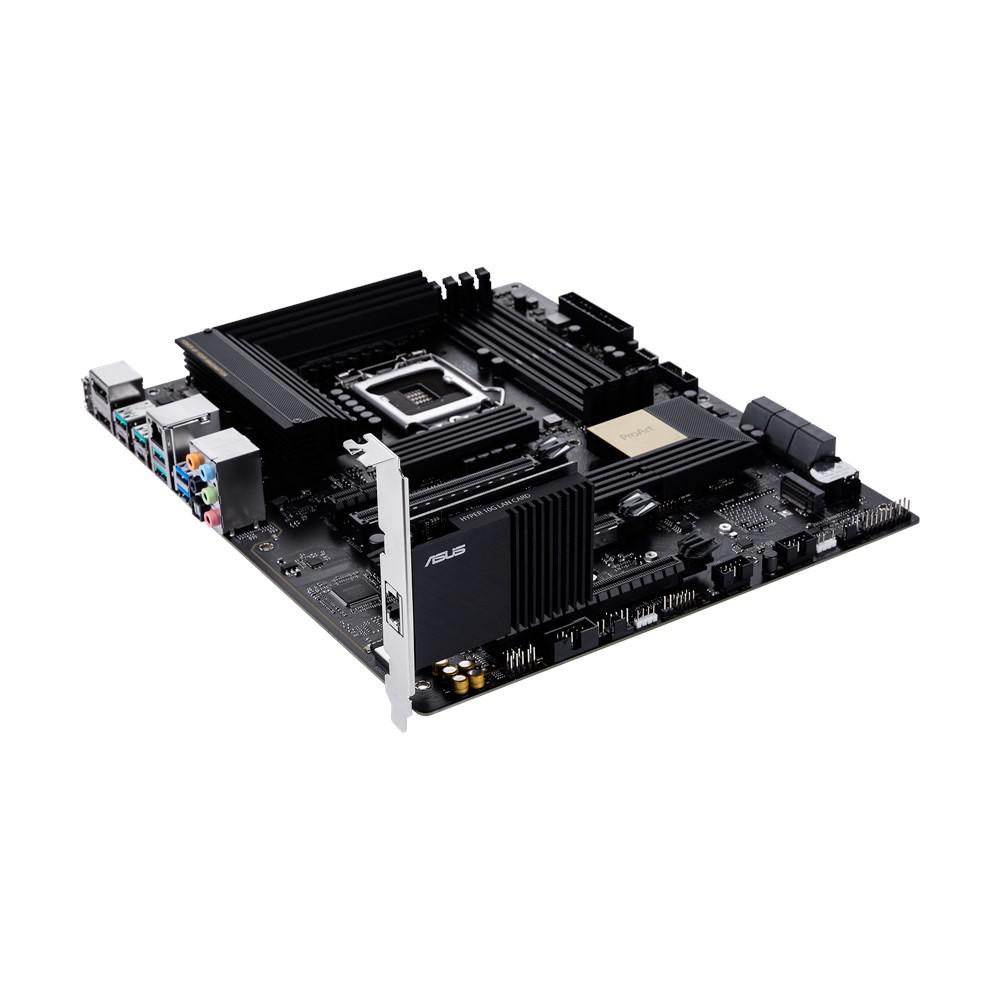

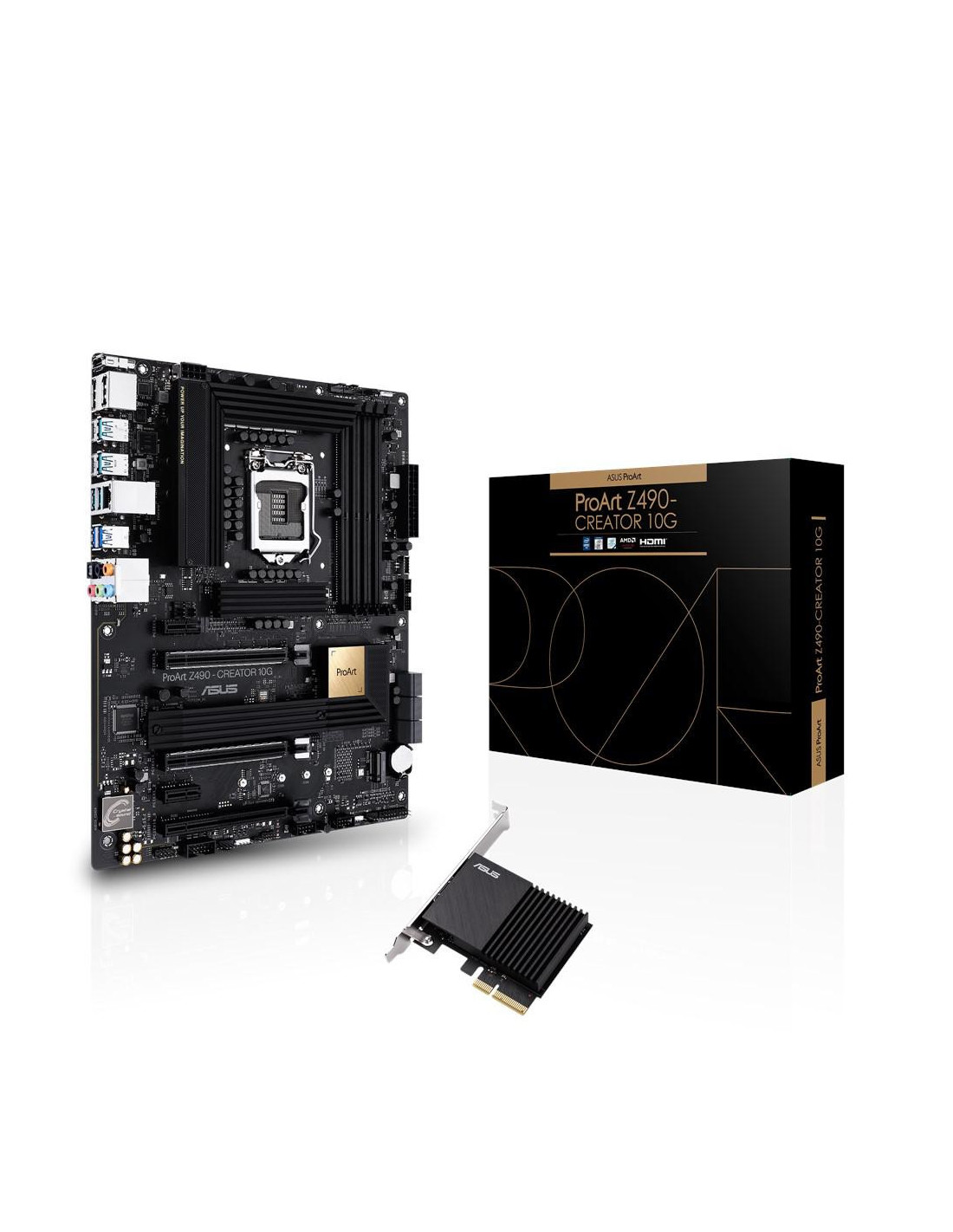

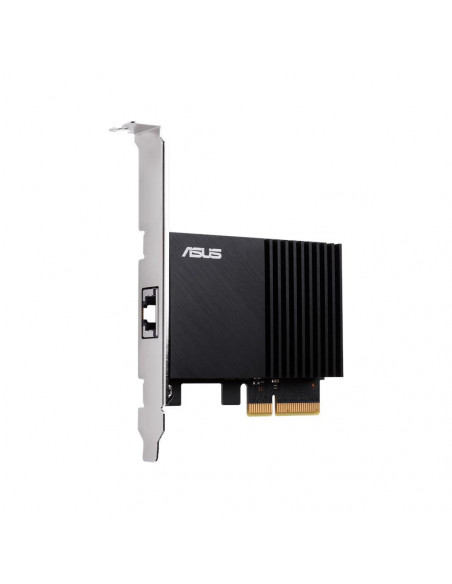

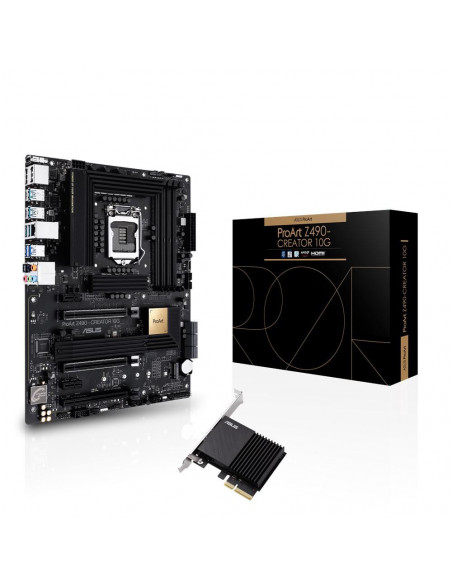

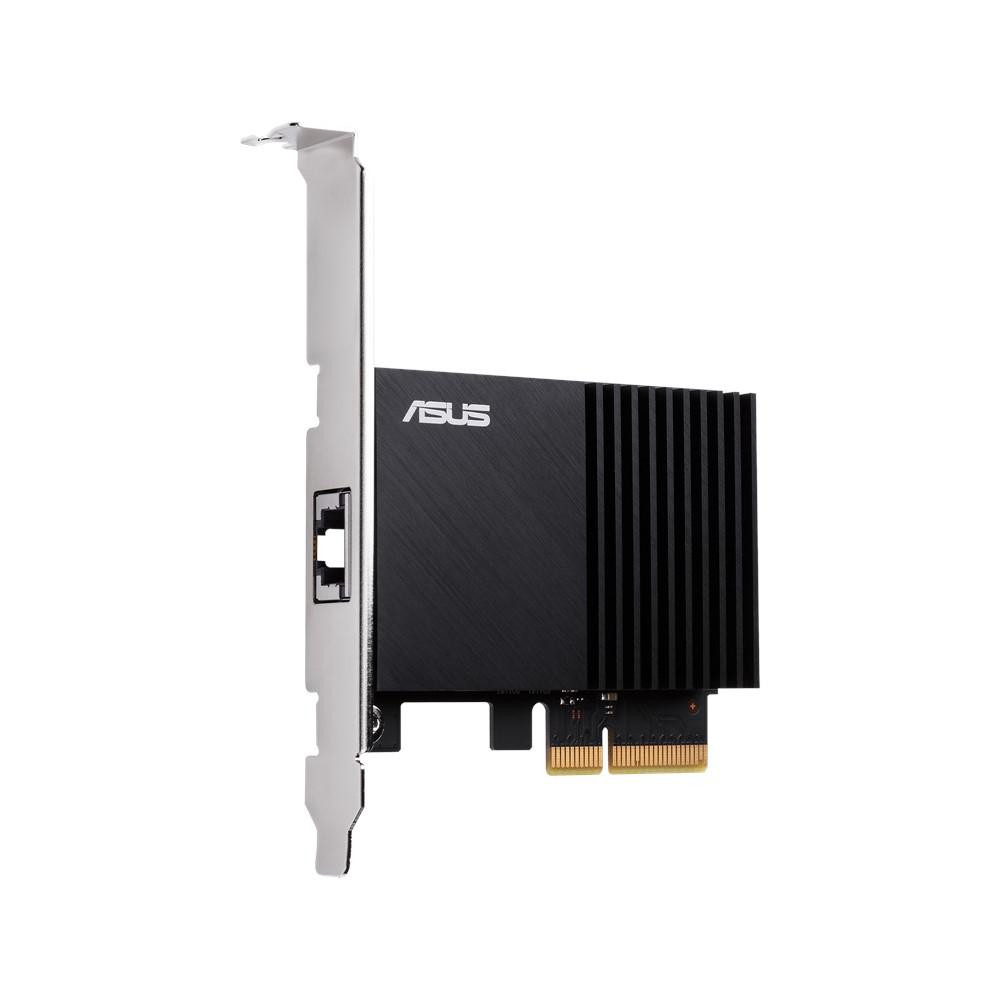

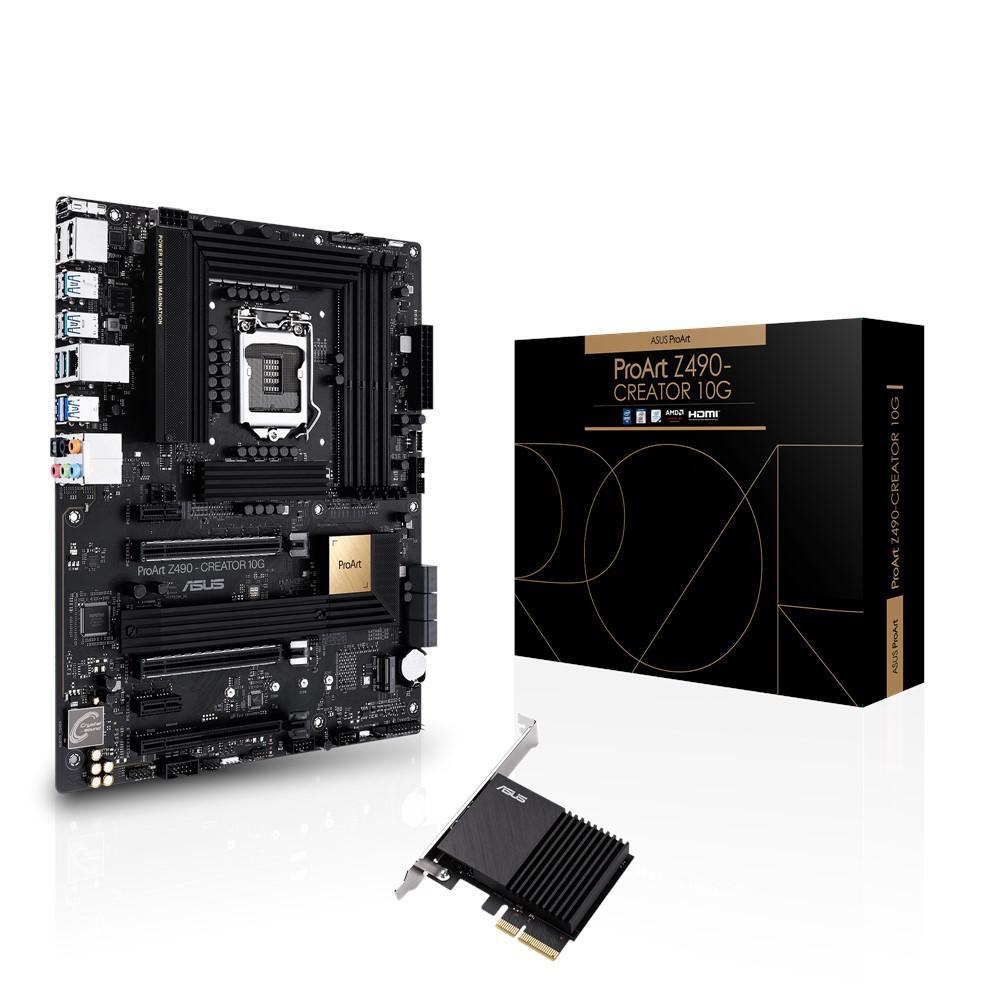

Placa de baza Asus ProART Z490-CREATOR 10G Socket LGA 1200 Intel® Z490 LGA 1200 ATX motherboard for content creators features a 10G LAN card, onboard 2.5G Intel LAN, dual Thunderbolt™ 3 Type-C ports, dual M.2, USB 3.2 Gen 2 ports, SATA 6 Gbps Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Z490 Memory 4 x DIMM, Max.
128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266 (O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466 (O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933 (O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs Supports DisplayPort 1.4/ with max.
resolution 7680/ x 3840/@ 60 Hz* * VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps Daisy-chain up to 12 Thunderbolt devices Up to 5V/3A, 15W charging support Graphic Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max.
resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any update.
Multi-GPU Support Supports AMD 3-Way CrossFireX™ Technology Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) *1 Intel® Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) *2 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Intel® I225-V 2.5Gb Ethernet Audio Realtek® ALC S1220A 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and SNR recording input Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
