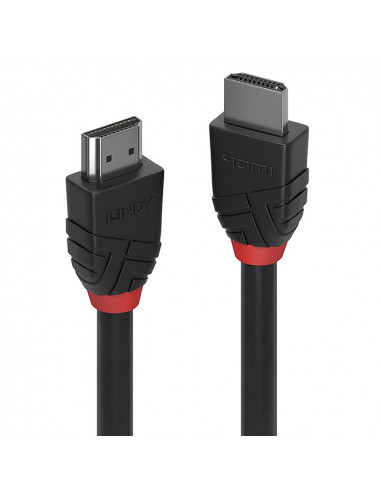

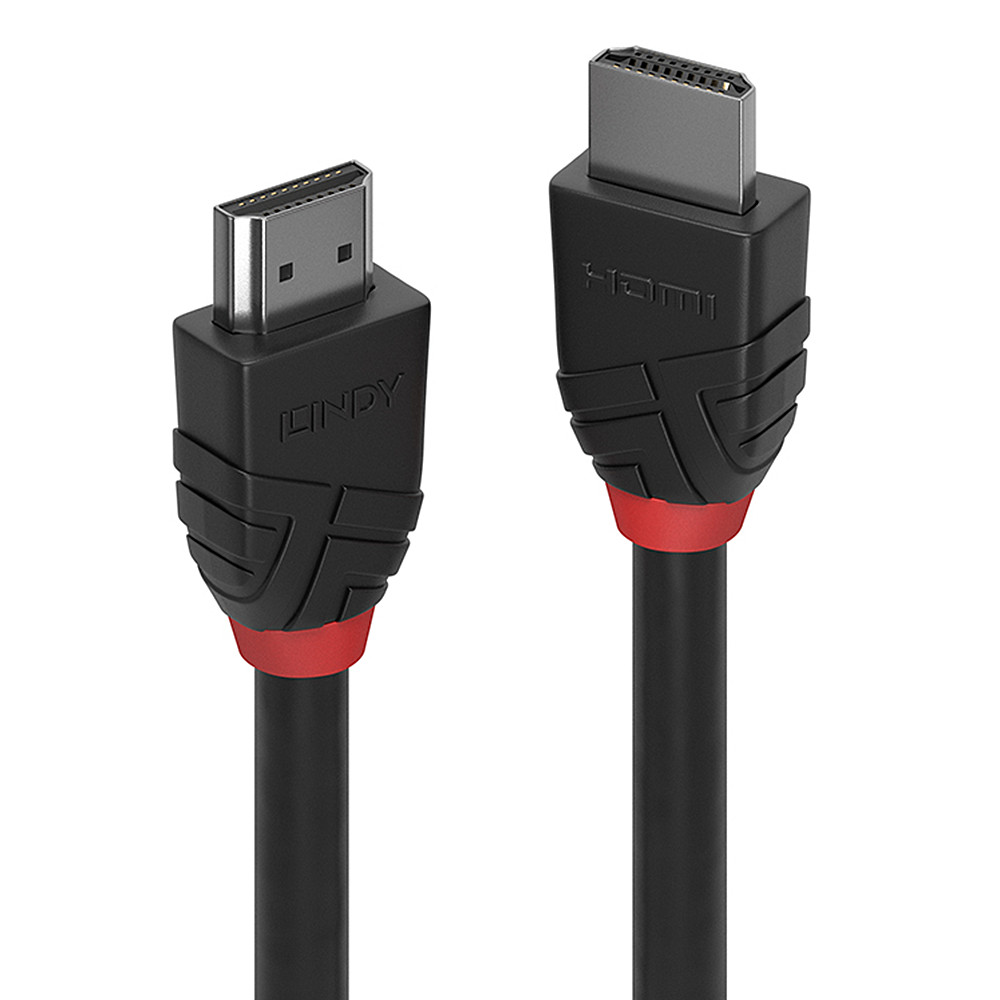

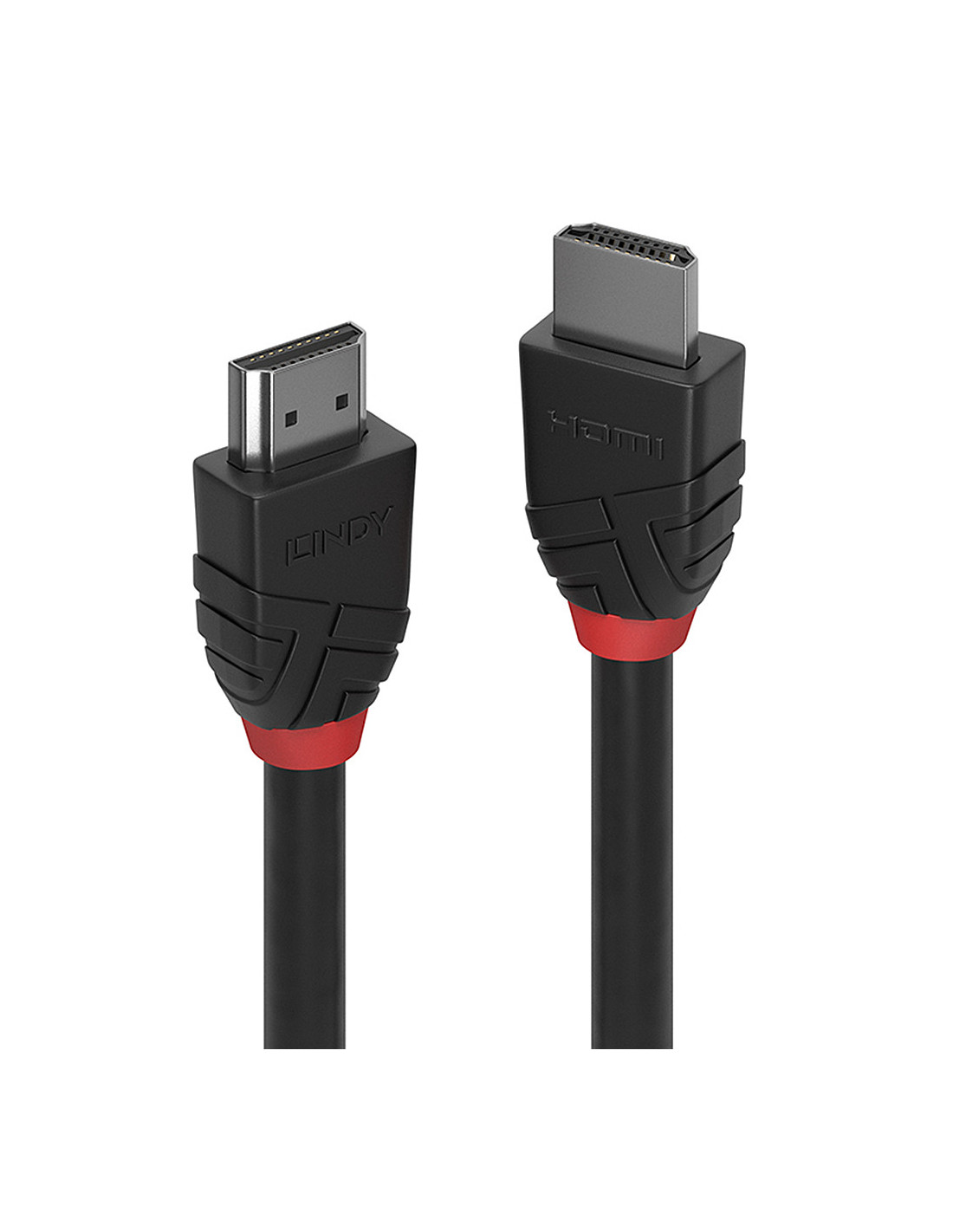

Cablu HDMI high speed, 50 cm, Lindy, Black Line

Description

• Entry level High Speed HDMI 2.0 cable for home and small office applications
• Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
• Robust PVC housing, nickel connectors, 24K gold plated contacts
• Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
• HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio; HDMI ATC certified; 10 year warranty
• 18Gbps bandwidth capacity

Technical details

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold Flash



Cable Construction

• Length: 0,5m
• Standard: High Speed HDMI with Ethernet
• Colour: Black
• Type: Round
• Jack Diameter: 5.5mm
• Jacket Material: PVC
• Conductor Material: Copper Coated Steel
• Conductor Gauge: 30AWG
• Shielding: Aluminium Foil



Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz <5dB
  • 2.475GHz-4.125GHz <12dB
  • 4.125GHz-5.1GHz <20dB
• Minumum Band Radius: 22mm (0.87in)
• Operating Temperature: -30°C - 80°C (-22°F - 176°F)
• Storage Temperature: -10°C - 85°C (14°F - 185°F)
• ATC Approved: Yes



Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL, ATC



Purchasing Information

• No.: 36470
