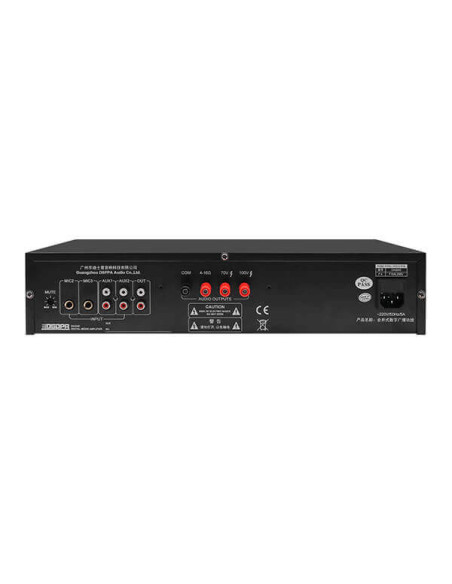

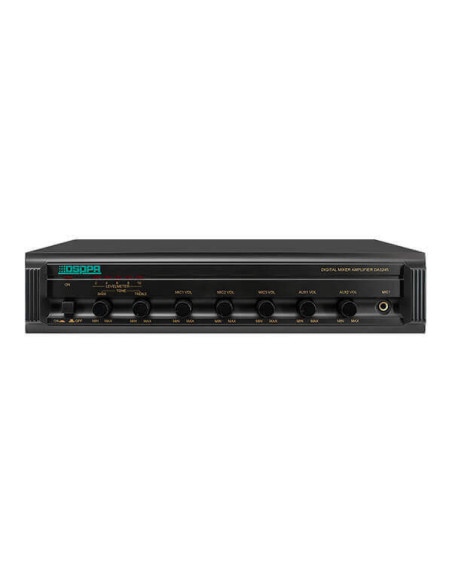

Amplificator cu mixer 450W DSPPA DA3245

DA3245 meets the demands of emerging markets to provide high-quality equipment at affordable prices. And it has the advantage that with mute function, multiple power options, easy to insert priority broadcast. 3 MIC IN, 2 AUX IN, 1 AUX OUT, most suitable for public address. It is suitable for small & medium supermarkets, malls, and indoor places like cafe shops to play background music.


Features

● 3 MIC IN, 2 AUX IN, 1 AUX OUT, most suitable for public address.
● 100V, 70V constant voltage output and P1 output.
● With mute function, easy to insert priority broadcast.
● Independent volume control for each channel.
● Treble and bass tone control.
● 5-unit LED level meters, easy to monitor working status.
● Output short circuit protection and alarm.




Model	DA3206	DA3212	DA3225	DA3235	DA3245	DA3255
Rated Output Power	60W	120W	250W	350W	450W	550W
Output Method	4~16Ω,70V,100V constant voltage output
AUX OUT Level	1000 mV±100mV
MIN. Source EMF.	MIC: 5mV±0.5mV (Unbalanced) or 350mV±35mV (Unbalanced)
	LINE:300mV±30mV (Unbalanced)
Freq. Resp.	80Hz-15KHz（±3dB）
THD	≤1% (1KHz, under normal working condition)
SNR	LINE IN:≥74dB (Broadband)
Tone Adjustment	Bass:±10dB (100Hz)
	Treble:±10dB (10kHz)
Protection	AC fuse, DC output, Overload, Short circuit
Mute Function	Mic1 input can override other inputs (attenuation0 to-30dB)
Power Supply	AC 220V/50Hz
Rated Power Consumption	100W	170W	370W	540W	600W	700W
Package Dimension (mm)	(L×W×H)506×423×190
Machine Dimension (mm)	(L×W×H)483×338×88
Gross Weight	9kg	8.8kg	9.6kg	9.8kg	9.5kg	9.8kg
Net Weight	7.2kg	8kg	8.6kg	9kg	8.7kg	9kg



Impedanta - PA: 100V
Impedanta - PA: 100V
Impedanta - PA: 100V
Impedanta - PA: 100V
Impedanta - PA: 100V
Intrari microfon - PA: Da
Intrari microfon - PA: Da
Intrari microfon - PA: Da
Intrari microfon - PA: Da
Intrari microfon - PA: Da
Zone - PA: 1
Zone - PA: 1
Zone - PA: 1
Zone - PA: 1
Zone - PA: 1
Putere amplificator PA: 450W
Putere amplificator PA: 450W
Putere amplificator PA: 450W
Putere amplificator PA: 450W
Putere amplificator PA: 450W
Intrare AUX - PA: Da
Intrare AUX - PA: Da
Intrare AUX - PA: Da
Intrare AUX - PA: Da
Intrare AUX - PA: Da
