HDV-MXB22AC

HDCVT MXB22AC Matrix HDMI 2.0 2x2 Switch

HDCVT MXB22AC Matrix HDMI 2.0 2x2 Switch, Video Resolution is up to 4K2K@50/60Hz (4:4 : 4) ., Support Analog audio pcm 2.0., Support HDR Function

Overview:

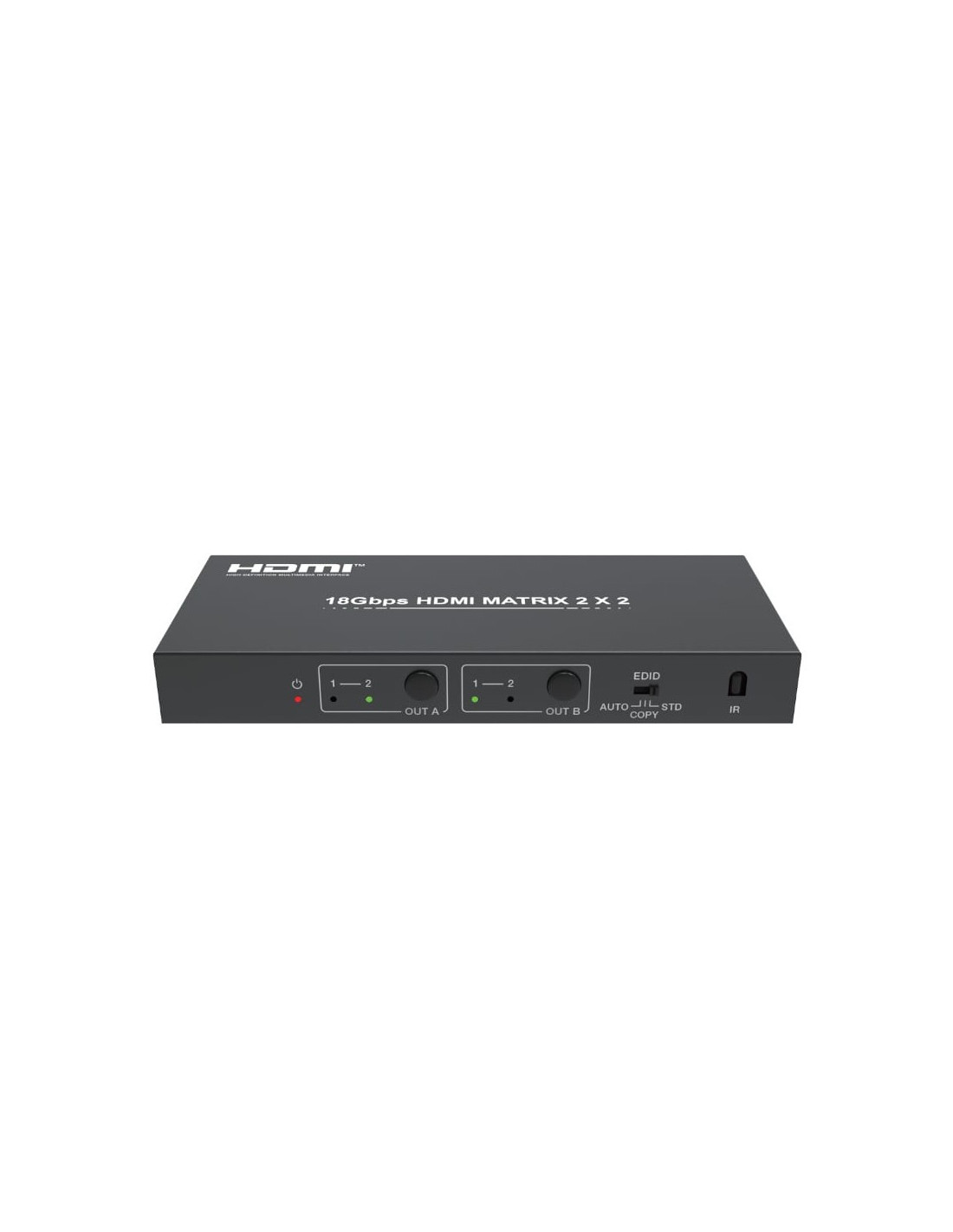

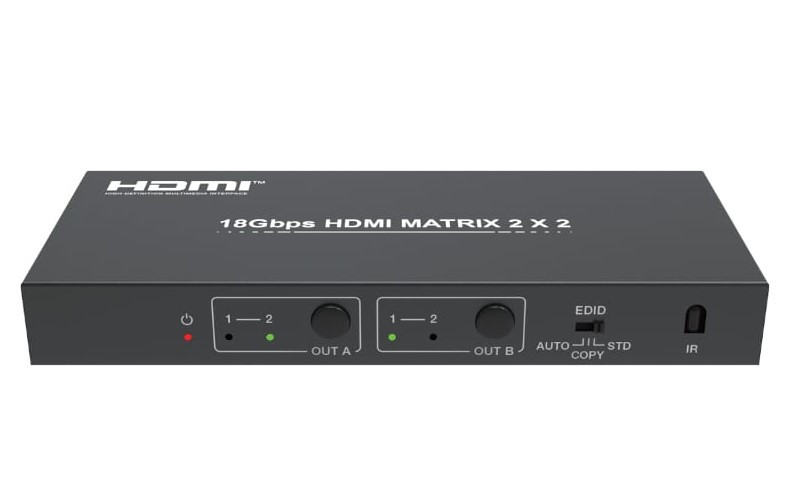

HDV-MXB22AC - HDCVT MATRIX HDMI 2.0 2X2
Control 2 HDMI sources to 2 HDMI displays with the HDCVT 18Gbps 2x2 HDMI Matrix Switcher. It features 2 HDMI inputs and 2 HDMI outputs, video resolution up to 4K@60Hz, Dolby Vision and HDR 10+ support as well as support for various optical audio pass-through formats.

The HDCVT 18Gbps 2x2 HDMI Matrix Switcher supports the transmission of video signal from two HDMI sources to two HDMI displays simultaneously. The HDMI Switcher supports resolutions of up to 4K2K@50/60Hz YCbCr 4:4:4. This product supports audio extract from output A to optical and analog output. It supports three modes of EDID setting (AUTO, COPY and STD). Flexible control can also be done via panel buttons and the IR remote, the corresponding LED indicator on front panel will be illuminated.

Features:


• HDCP2.2 / HDCP1.x, DVI 1.0 compliant.
• Support 18Gbps video bandwidth
• Video resolution is up to 4K2K@50/60Hz (4:4:4).
• Support digital and analog audio extract output from output A
• EDID can be selected with AUTO, COPY and STD mode via the selector on the front panel.
• Support analog audio PCM 2.0.
• Supported optical audio pass-through format: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-HRA 5.1.
• Support HDR function
• Flexible control via panel buttons and IR remote.

WHATS IN THE BOX:

• HDCVT 18Gbps 2x2 HDMI Matrix Switcher - Black x1
• 5V/1A Power Adapter x1
• Matrix IR Remote x1
• User Manual x1


Tip semnal: HDMI
Tip semnal: HDMI
Tip semnal: HDMI
Tip semnal: HDMI
Tip semnal: HDMI
Tip semnal: HDMI
Tip semnal: HDMI
Alimentare: DA
Alimentare: DA
Alimentare: DA
Alimentare: DA
Alimentare: DA
Alimentare: DA
Alimentare: DA
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Rezolutie Maxima: 4K
Suport HDCP: DA
Suport HDCP: DA
Suport HDCP: DA
Suport HDCP: DA
Suport HDCP: DA
Suport HDCP: DA
Suport HDCP: DA
Numar intrari: 2
Numar intrari: 2
Numar intrari: 2
Numar intrari: 2
Numar intrari: 2
Numar intrari: 2
Numar intrari: 2
Numar iesiri: 2
Numar iesiri: 2
Numar iesiri: 2
Numar iesiri: 2
Numar iesiri: 2
Numar iesiri: 2
Numar iesiri: 2
Telecomanda: DA
Telecomanda: DA
Telecomanda: DA
Telecomanda: DA
Telecomanda: DA
Telecomanda: DA
Telecomanda: DA
