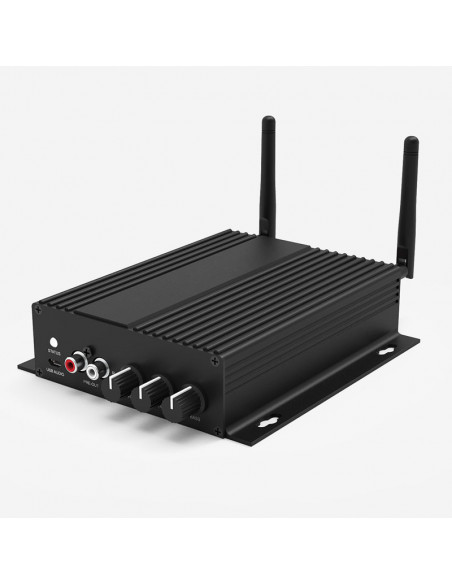

Wireless Audio Amplifier SA100

SA100 is a power wireless amplifier with 2.4G WiFi and Bluetooth 5.0. It is a high end class D multiroom Hi-Fi stereo amplifier with 80 + 80watts output with subwoofer that can bring stunning music to your home wirelessly. Combine with our 4STREAM mobile application, you can play online music form your mobile or online servies with multiroom function.



Specification

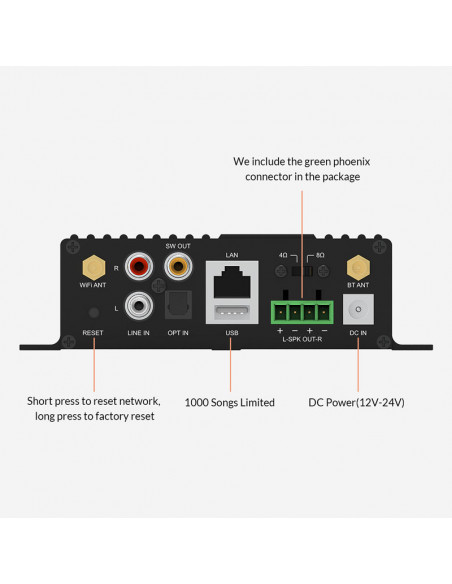

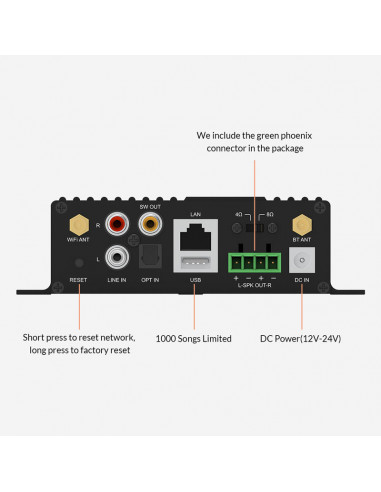

Interfaces
DC input: 24V-6A
Analog audio input:
  -RCA x1 for analog input
  -Optical x1 for digital input
Analog audio output
  -RCA x1 for analog output
  -Subwoofer output x1
  -Speaker output x1 for analog output
USB host: to connect USB pen drive
Micro USB: to connect PC as USB DAC
Ethernet RJ45: for wired LAN cable to connect internet

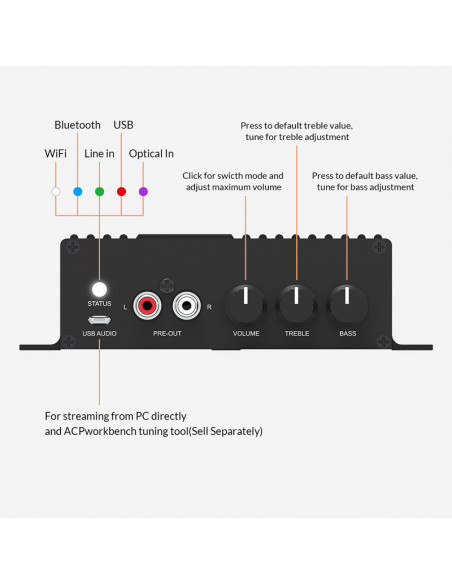

LED indicators: to show the device status
Reset: short press to reset the WiFi, long press to restore factory setting
IR receiever: for remote control
Antennas for WiFi and Bluetooth

Streaming Protocols
AirPlay, DLNA, UPnP, Spotify connect and Qplay


Network
Wireless connection:
  - IEEE 802.11 b/g/n 2.4G
  - Bluetooth 5.0
Wired connection :
  - Ethernet RJ45

Audio Parameters
Music format:
  FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio decode: 24bit/192kHz
Frequency response: 20Hz-20kHz
THD+N: 0.03%, @1kHz 1W
Bluetooth distance: 15M
Speaker impedance: 4-8Ω

Control Applications
4STREAM for iOS and Android based smart devices
iTunes for MAC and Windows PC
Foobar2000 and other compatible third-party apps


Music Sources
Online streaming services:
Spotify, Deezer, TuneIn, Tidal, Qobuz, Napster, iHeartRadio, more coming in the near future
Local storage:
Music stored on the mobile device memory, NAS, USB pen drive
Aux input:
RCA for analog input

Speaker Power
2×50-W into a 4-Ω BTL Load at 24 V
2×50-W into a 8-Ω BTL Load at 24 V (Boost)

General
Power input: 24V-4.16A DC input
Dimensions: 158x146x40mm
Weight: 0.5k4g
Working temperature: 0~40℃
