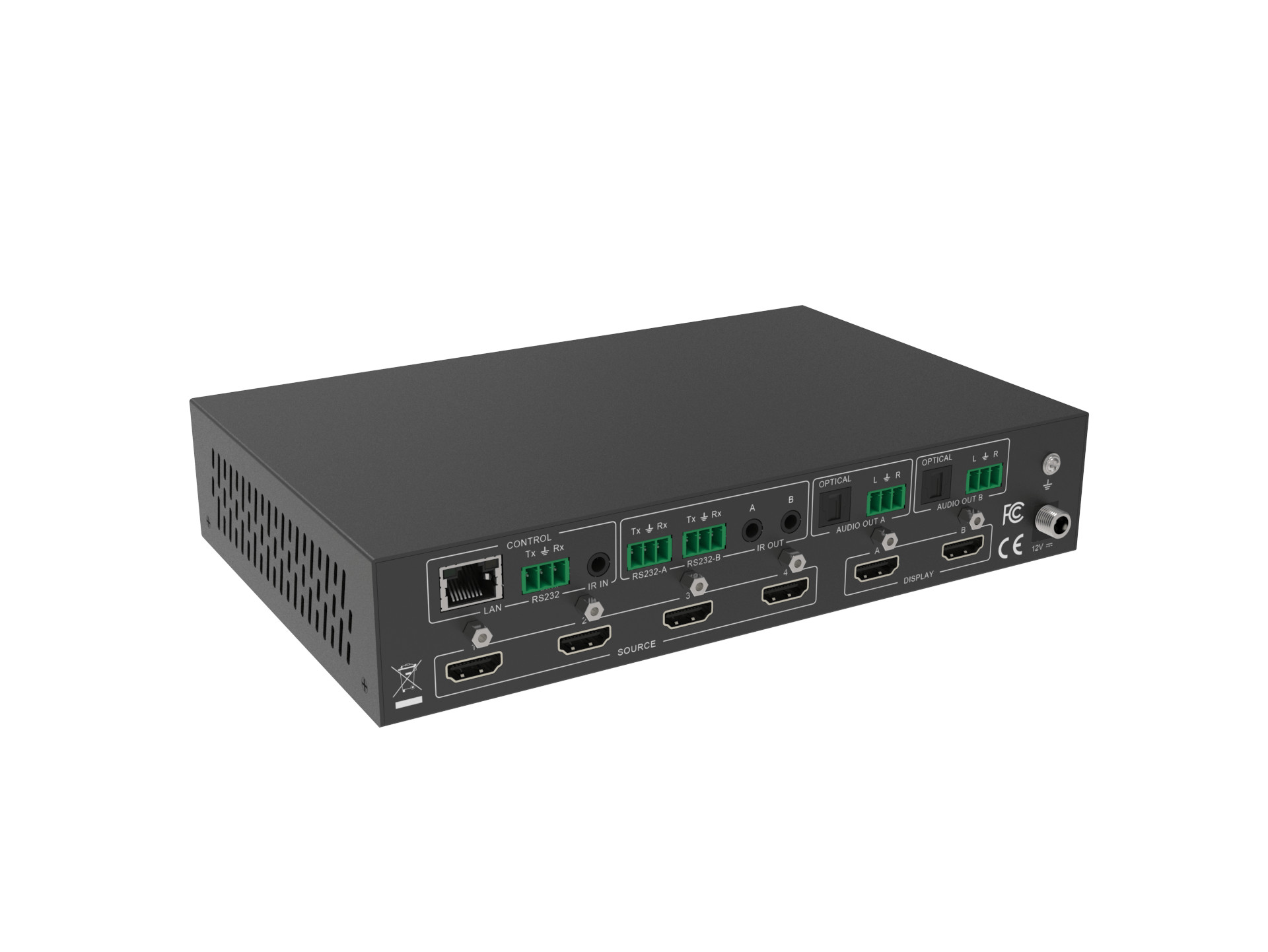

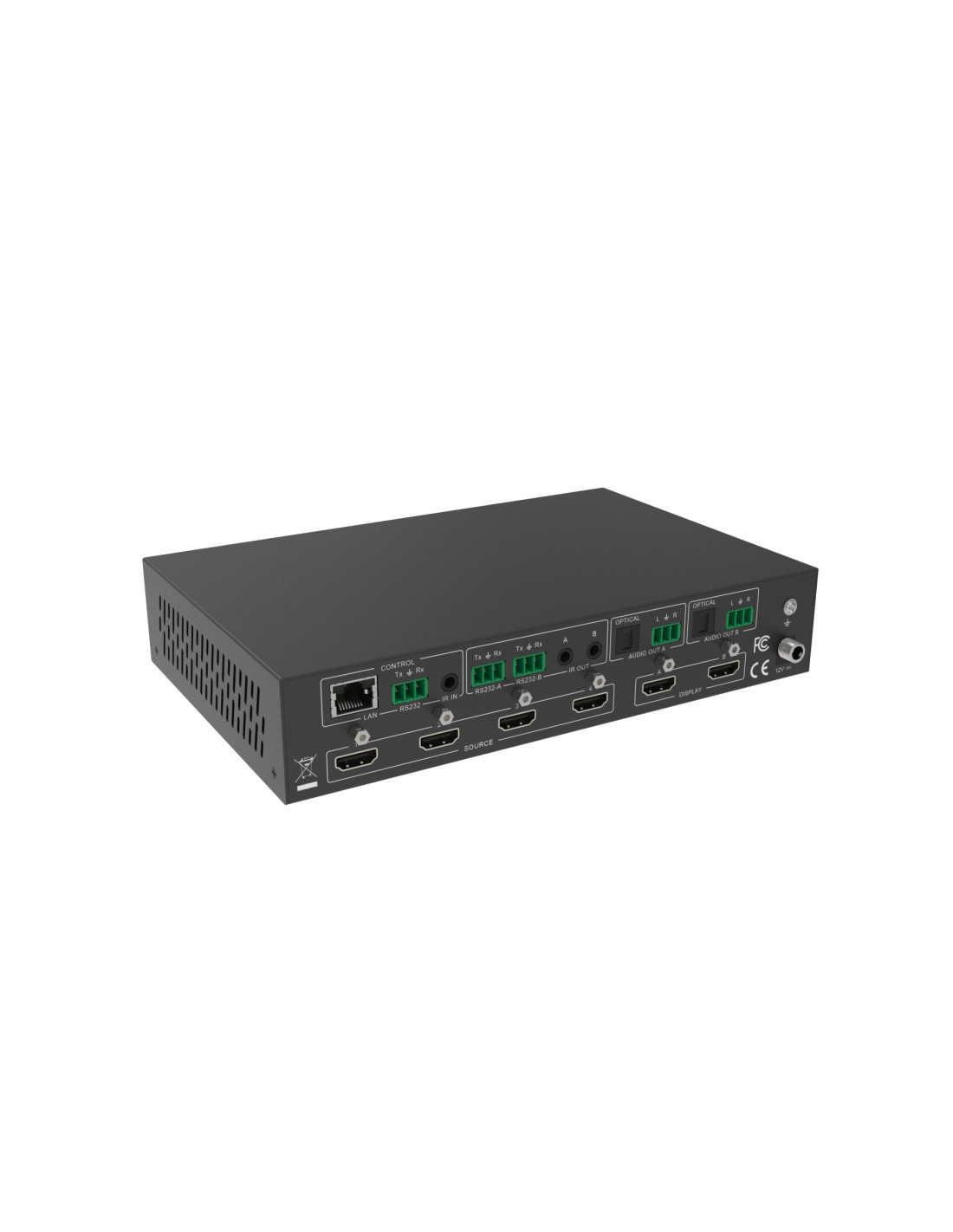

Matrix Switcher HDMI 2.0 4 x 2 18Gbps EVOCONNECT HDP-MXB42AP, cu telecomanda

This product is an 18G HDMI video switcher with 4 HDMI inputs and 2 scaling HDMI outputs. Each input and output supports up to 4K60 444 HDMI 18G video. The outputs can be individually scaled for 1080p or HDBaseT compatibility. De-embedded audio as analogue L+R and optical TosLink is available for both outputs. The Matrix Switcher can automatically control the
display device using RS232, CEC or IR when the last input signal is lost, or when the first video input is detected. This switcher can be controlled from the front panel, RS232, IR, or LAN.

Features
☆ HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Four 18G HDMI 2.0 video inputs supporting up to 4K60 444 resolution
☆ Two 18G HDMI 2.0 video outputs supporting up to 4K60 444 resolution
☆ Both outputs can be individually scaled for 4K→1080p or HDBaseT mode
☆ Automatic RS232, CEC and IR control of the display device power state
☆ Two sets of de-embedded audio analogue and TosLink outputs, for both outputs
☆ ARC decoding to the TosLink audio outputs only
☆ Test Pattern mode for testing output signal integrity to the display
☆ Built-in Web GUI for LAN control
☆ Four methods of control: Front panel, RS232, IR and LAN



Garantie: 12 luni pentru persoane juridice

                  24 de luni pentru persoane fizice

Specificatii Tehnice:

Manual - ENG : Descarca
